HowTo: My First Policy 

Introduction 

Consider a scenario where a supermarket chain called HyperM controls how it sells items in a policy-based manner. Each time an item is processed by HyperM’s point-of-sale (PoS) system an event is generated and published about that item of stock being sold. This event can then be used to update stock levels, etc..

HyperM want to extend this approach to allow some checks to be performed before the sale can be completed. This can be achieved by requesting a policy-controlled decision as each item is processed by for sale by each PoS system. The decision process is integrated with HyperM’s other IT systems that manage stock control, sourcing and purchasing, personnel systems, etc.

In this document we will show how APEX and APEX Policies can be used to achieve this, starting with a simple policy, building up to more complicated policy that demonstrates the features of APEX. This example demonstrates the data models, events and task logics that can be considered for the scenario. From Oslo release, only apex cli editor can be used for generating the policies.

Data Models 

Sales Input Event

Each time a PoS system processes a sales item an event with the following format is emitted:

Table 1. Sale Input Event

Event

Fields

Description

SALE_INPUT

time, sale_ID, amount, item_ID, quantity, assistant_ID, branch_ID, notes, …

Event indicating a sale of an item is occurring

In each SALE_INPUT event the sale_ID field is a unique ID generated by the PoS system. A timestamp for the event is stored in the time field. The amount field refers to the value of the item(s) to be sold (in cents). The item_ID field is a unique identifier for each item type, and can be used to retrieve more information about the item from HyperM’s stock control system. The quantity field refers to the quantity of the item to be sold. The assistant_ID field is a unique identifier for the PoS operator, and can be used to retrieve more information about the operator from the HyperM’s personnel system. Since HyperM has many branches the branch_ID identifies the shop. The notes field contains arbitrary notes about the sale.

Sales Decision Event

After a SALE_INPUT event is emitted by the PoS system HyperM’s policy-based controlled sales checking system emits a Sale Authorization Event indicating whether the sale is authorized or denied. The PoS system can then listen for this event before continuing with the sale.

Table 2. Sale Authorisation Event

Event

Fields

Description

SALE_AUTH

sale_ID, time, authorized, amount, item_ID, quantity, assistant_ID, branch_ID, notes, message…

Event indicating a sale of an item is authorized or denied

In each SALE_AUTH event the sale_ID field is copied from the SALE_INPUT event that trigger the decision request. The SALE_AUTH event is also timestamped using the time field, and a field called authorised is set to true or false depending on whether the sale is authorized or denied. The message field carries an optional message about why a sale was not authorized. The other fields from the SALE_INPUT event are also included for completeness.

Stock Control: Items

HyperM maintains information about each item for sale in a database table called ITEMS.

Table 3. Items Database

Table

Fields

Description

ITEMS

item_ID, description, cost_price, barcode, supplier_ID, category, …

Database table describing each item for sale

The database table ITEMS has a row for each items that HyperM sells. Each item is identified by an item_ID value. The description field stores a description of the item. The cost price of the item is given in cost_price. The barcode of the item is encoded in barcode, while the item supplier is identified by supplier_ID. Items may also be classified into categories using the category field. Useful categories might include: soft drinks, alcoholic drinks, cigarettes, knives, confectionery, bakery, fruit&vegetables, meat, etc..

Personnel System: Assistants

Table 4. Assistants Database

Table

Fields

Description

ASSISTANTS

assistant_ID, surname, firstname, middlename, age, grade, phone_number, …

Database table describing each HyperM sales assistant

The database table ASSISTANTS has a row for each sales assistant employed by HyperM. Each assistant is identified by an assistant_ID value, with their name given in the firstname, middlename and surname fields. The assistant’s age in years is given in age, while their phone number is contained in the phone_number field. The assistant’s grade is encoded in grade. Useful values for grade might include: trainee, operator, supervisor, etc..

Locations: Branches

Table 5. Branches Database

Table

Fields

Description

BRANCHES

branch_ID, branch_Name, category, street, city, country, postcode, …

Database table describing each HyperM branch

HyperM operates a number of branches. Each branch is described in the BRANCHES database table. Each branch is identified by a branch_ID, with a branch name given in branch_Name. The address for the branch is encoded in street, city, country and postcode. The branch category is given in the category field. Useful values for category might include: Small, Large, Super, Hyper, etc..

Policy Step 1 

Scenario

For the first version of our policy, let’s start with something simple. Let us assume that there exists some restriction that alcohol products cannot be sold before 11:30am. In this section we will go through the necessary steps to define a policy that can enforce this for HyperM.

Alcohol cannot be sold before 11:30am…

New Policy Model 

Create the an new empty Policy Model MyFirstPolicyModel

Since an organisation like HyperM may have many policies covering many different domains, policies should be grouped into policy sets. In order to edit or deploy a policy, or policy set, the definition of the policy(ies) and all required events, tasks, states, etc., are grouped together into a ‘Policy Model’. An organization might define many Policy Models, each containing a different set of policies.

Events 

Define the input event SALE_INPUT and the output event SALE_AUTH

Define the new event types called SALE_INPUT and SALE_AUTH.

Before we can add parameter fields to an event we must first define APEX Context Item Schemas that can be used by those fields.

Create item schemas with the following characteristics, each with its own unique UUID:

Table 1. Item Schemas

Name

Schema Flavour

Schema Definition

Description

timestamp_type

Java

java.lang.Long

A type for time values

sale_ID_type

Java

java.lang.Long

A type for sale_ID values

price_type

Java

java.lang.Long

A type for amo unt/price values

item_ID_type

Java

java.lang.Long

A type for item_ID values

as sistant_ID_type

Java

java.lang.Long

A type for ` assistant_ID` values

quantity_type

Java

ja va.lang.Integer

A type for quantity values

branch_ID_type

Java

java.lang.Long

A type for branch_ID values

notes_type

Java

j ava.lang.String

A type for notes values

authorised_type

Java

ja va.lang.Boolean

A type for authorised values

message_type

Java

j ava.lang.String

A type for message values

Tip

APEX natively supports schema definitions in Java and Avro. Java schema definitions are simply the name of a Java Class. There are some restrictions:

the class must be instantiatable, i.e. not an Java interface or abstract class

primitive types are not supported, i.e. use java.lang.Integer instead of int, etc.

it must be possible to find the class, i.e. the class must be contained in the Java classpath.

Avro schema definitions can be any valid Avro schema. For events using fields defined with Avro schemas, any incoming event containing that field must contain a value that conforms to the Avro schema.

Add the following event parameters:

Table 2. Event Parameter Fields for the SALE_INPUT Event

Parameter Name

Parameter Type

Optional

time

timestamp_type

no

sale_ID

sale_ID_type

no

amount

price_type

no

item_ID

item_ID_type

no

quantity

quantity_type

no

assistant_ID

assistant_ID_type

no

branch_ID

branch_ID_type

no

notes

notes_type

yes

Tip

Parameter fields can be optional in events. If a parameter is not marked as optional then by default it is mandatory, so it must appear in any input event passed to APEX. If an optional field is not set for an output event then value will be set to null.

Add the following event parameters for SALE_AUTH event:

Table 3. Event Parameter Fields for the SALE_AUTH Event

Parameter Name

Parameter Type

no

sale_ID

sale_ID_type

no

time

timestamp_type

no

authorised

authorised_type

no

message

message_type

yes

amount

price_type

no

item_ID

item_ID_type

no

assistant_ID

assistant_ID_type

no

quantity

quantity_type

no

branch_ID

branch_ID_type

no

notes

notes_type

yes

The events for our policy are now defined.

New Policy 

Create a new Policy and add the “No Booze before 11:30” check

APEX policies are defined using a state-machine model. Each policy comprises one or more states that can be individually executed. Where there is more than one state the states are chained together to form a Directed Acyclic Graph (DAG) of states. A state is triggered by passing it a single input (or ‘trigger’) event and once executed each state then emits an output event. For each state the logic for the state is embedded in one or more tasks. Each task contains specific task logic that is executed by the APEX execution environment each time the task is invoked. Where there is more than one task in a state then the state also defines some task selection logic to select an appropriate task each time the state is executed.

Therefore, to create a new policy we must first define one or more tasks. Tasks are configured with a set of input fields and a set of output fields. The task’s input and output fields must be a subset of the event parameters defined for the input and output events for any state that uses that task. (You may have noticed that the input and output fields for the MorningBoozeCheck task have the exact same names and reuse the item schemas that we used for the parameters in the SALE_INPUT and SALE_AUTH events respectively).

Table 1. Input fields for MorningBoozeCheck task

Parameter Name

Parameter Type

time

timestamp_type

sale_ID

sale_ID_type

amount

price_type

item_ID

item_ID_type

quantity

quantity_type

assistant_ID

assistant_ID_type

branch_ID

branch_ID_type

notes

notes_type

Table 2. Output fields for MorningBoozeCheck task

Parameter Name

Parameter Type

sale_ID

sale_ID_type

time

timestamp_type

authorised

authorised_type

message

message_type

amount

price_type

item_ID

item_ID_type

assistant_ID

assistant_ID_type

quantity

quantity_type

branch_ID

branch_ID_type

notes

notes_type

Each task must include some ‘Task Logic’ that implements the behaviour for the task. Task logic can be defined in a number of different ways using a choice of languages. For this task we will author the logic using the Java-like scripting language called `MVEL <https://en.wikipedia.org/wiki/MVEL>`__.

For simplicity use the code for the task logic here(Task Logic: MorningBoozeCheck.mvel). Paste the script text into the ‘Task Logic’ box, and use “MVEL” as the ‘Task Logic Type / Flavour’.

This logic assumes that all items with item_ID between 1000 and 2000 contain alcohol, which is not very realistic, but we will see a better approach for this later. It also uses the standard Java time utilities to check if the current time is between 00:00:00 GMT and 11:30:00 GMT. For a detailed guide to how to write your own logic in `JavaScript <https://en.wikipedia.org/wiki/JavaScript>`__, `MVEL <https://en.wikipedia.org/wiki/MVEL>`__ or one of the other supported languages please refer to APEX Programmers Guide.

An alternative version of the same logic is available in JavaScript(Task Logic: MorningBoozeCheck.js). Just use “JAVASCRIPT” as the ‘Task Logic Type / Flavour’ instead.

The task definition is now complete. Now that we have created our task, we can can create a policy that uses that task.

Create a new Policy called MyFirstPolicy.Each policy must have at least one state. Since this is ‘freeform’ policy we can add as many states as we wish. Let’s start with one state. Add a new state called BoozeAuthDecide to this MyFirstPolicy policy.

Each state must uses one input event type. For this new state select the SALE_INPUT event as the input event.

Each policy must define a ‘First State’ and a ‘Policy Trigger Event’. The ‘Policy Trigger Event’ is the input event for the policy as a whole. This event is then passed to the first state in the chain of states in the policy, therefore the ‘Policy Trigger Event’ will be the input event for the first state. Each policy can only have one ‘First State’. For our MyFirstPolicy policy, select BoozeAuthDecide as the ‘First State’. This will automatically select SALE_INPUT as the ‘Policy Trigger Event’ for our policy.

In this case we will create a reference the pre-existing MorningBoozeCheck task that we defined above. Select the MorningBoozeCheck task, and use the name of the task as the ‘Local Name’ for the task.

in the case where a state references more than one task, a ‘Default Task’ must be selected for the state and some logic (‘Task Selection Logic’) must be specified to select the appropriate task at execution time. Since our new state BoozeAuthDecide only has one task the default task is automatically selected and no ‘Task Selection Logic’ is required.

Note

In a ‘Policy’ ‘State’ a ‘State Output Mapping’ has 3 roles: 1) Select which ‘State’ should be executed next, 2) Select the type of the state’s ‘Outgoing Event’, and 3) Populate the state’s ‘Outgoing Event’. This is how states are chained together to form a (Directed Acyclic Graph (DAG)) of states. The final state(s) of a policy are those that do not select any ‘next’ state. Since a ‘State’ can only accept a single type of event, the type of the event emitted by a previous ‘State’ must match the incoming event type of the next ‘State’. This is also how the last state(s) in a policy can emit events of different types. The ‘State Output Mapping’ is also responsible for taking the fields that are output by the task executed in the state and populating the state’s output populating the state’s output event before it is emitted.

Each ‘Task’ referenced in ‘State’ must have a defined ‘Output Mapping’ to take the output of the task, select an ‘Outgoing Event’ type for the state, populate the state’s outgoing event, and then select the next state to be executed (if any).

There are 2 basic types of output mappings:

Direct Output Mappings have a single value for ‘Next State’ and a single value for ‘State Output Event’. The outgoing event for the state is automatically created, any outgoing event parameters that were present in the incoming event are copied into the outgoing event, then any task output fields that have the same name and type as parameters in the outgoing event are automatically copied into the outgoing event.

Logic-Based State Output Mappings / Finalizers have some logic defined that dynamically selects and creates the ‘State Outgoing Event’, manages the population of the outgoing event parameters (perhaps changing or adding to the outputs from the task), and then dynamically selects the next state to be executed (if any).

Each task reference must also have an associated ‘Output State Mapping’ so we need an ‘Output State Mapping’ for the BoozeAuthDecide state to use when the MorningBoozeCheck task is executed. The simplest type of output mapping is a ‘Direct Output Mapping’.

Create a new ‘Direct Output Mapping’ for the state called MorningBoozeCheck_Output_Direct using the ‘Add New Direct State Output Mapping’ button. Select SALE_AUTH as the output event and select None for the next state value. We can then select this output mapping for use when the the MorningBoozeCheck task is executed. Since there is only state, and only one task for that state, this output mapping ensures that the BoozeAuthDecide state is the only state executed and the state (and the policy) can only emit events of type SALE_AUTH. (You may remember that the output fields for the MorningBoozeCheck task have the exact same names and reuse the item schemas that we used for the parameters in SALE_AUTH event. The MorningBoozeCheck_Output_Direct direct output mapping can now automatically copy the values from the MorningBoozeCheck task directly into outgoing SALE_AUTH events.)

To start a new APEX Engine you can use the following configuration. In a full APEX installation you can find this configuration in $APEX_HOME/examples/config/MyFirstPolicy/1/MyFirstPolicyConfigStdin2StdoutJsonEvent.json. This configuration expects incoming events to be in JSON format and to be passed into the APEX Engine from stdin, and result events will be printed in JSON format to stdout. This configuration loads the policy model stored in the file ‘MyFirstPolicyModel_0.0.1.json’ as exported from the APEX Editor. Note, you may need to edit this file to provide the full path to wherever you stored the exported policy model file.

To test the policy try paste the following events into the console as the APEX engine executes:

Title

Input Event (JSON)

Output Event (JSON)

comment

{
  "nameSpace": "com.hyperm",
  "name": "SALE_INPUT",
  "version": "0.0.1",
  "time": 1483351989000,
  "sale_ID": 99999991,
  "amount": 299,
  "item_ID": 5123,
  "quantity": 1,
  "assistant_ID": 23,
  "branch_ID": 1,
  "notes": "Special Offer!!"
}

{
  "name": "SALE_AUTH",
  "version": "0.0.1",
  "nameSpace": "com.hyperm",
  "source": "",
  "target": "",
  "amount": 299,
  "assistant_ID": 23,
  "authorised": true,
  "branch_ID": 1,
  "item_ID": 5123,
  "message": "Sale authorised by policy task MorningBoozeCheck for time 10:13:09 GMT",
  "notes": "Special Offer!!",
  "quantity": 1,
  "sale_ID": 99999991,
  "time": 1483351989000
}

Request to buy a non-alcoholic item (item_ID=5123) at 10:13:09 on Tuesday, 10 January 2017. Sale is authorized.

{
  "nameSpace": "com.hyperm",
  "name": "SALE_INPUT",
  "version": "0.0.1",
  "time": 1483346466000,
  "sale_ID": 99999992,
  "amount": 1249,
  "item_ID": 1012,
  "quantity": 1,
  "assistant_ID": 12,
  "branch_ID": 2
}

{
  "nameSpace": "com.hyperm",
  "name": "SALE_AUTH",
  "version": "0.0.1",
  "source": "",
  "target": "",
  "amount": 1249,
  "assistant_ID": 12,
  "authorised": false,
  "branch_ID": 2,
  "item_ID": 1012,
  "message": "Sale not authorised by policy task MorningBoozeCheck for time 08:41:06 GMT. Alcohol can not be sold between 00:00:00 GMT and 11:30:00 GMT",
  "notes": null,
  "quantity": 1,
  "sale_ID": 99999992,
  "time": 1483346466000
}

Request to buy alcohol item (item_ID=1249) at 08:41:06 on Monday, 02 January 2017. Sale is not authorized.

{
  "nameSpace": "com.hyperm",
  "name": "SALE_INPUT",
  "version": "0.0.1",
  "time": 1482265033000,
  "sale_ID": 99999993,
  "amount": 4799,
  "item_ID": 1943,
  "quantity": 2,
  "assistant_ID": 9,
  "branch_ID": 3
}

{
  "name": "SALE_AUTH",
  "version": "0.0.1",
  "nameSpace": "com.hyperm",
  "source": "",
  "target": "",
  "amount": 4799,
  "assistant_ID": 9,
  "authorised": true,
  "branch_ID": 3,
  "item_ID": 1943,
  "message": "Sale authorised by policy task MorningBoozeCheck for time 20:17:13 GMT",
  "notes": null,
  "quantity": 2,
  "sale_ID": 99999993,
  "time": 1482265033000
}

Request to buy alcohol (item_ID=1943) at 20:17:13 on Tuesday, 20 December 2016. Sale is authorized.

CLI Editor File 

Policy 1 in CLI Editor

An equivalent version of the MyFirstPolicyModel policy model can be generated using the APEX CLI editor. A sample APEX CLI script is shown below:

APEX CLI Editor code for Policy 1 using .Mvel Task Logic

APEX CLI Editor code for Policy 1 using .Js Task Logic

Policy Step 2 

Scenario

HyperM have just opened a new branch in a different country, but that country has different rules about when alcohol can be sold! In this section we will go through the necessary steps to extend our policy to enforce this for HyperM.

In some branches alcohol cannot be sold before 1pm, and not at all on Sundays.

Although there are a number of ways to accomplish this the easiest approach for us is to define another task and then select which task is appropriate at runtime depending on the branch identifier in the incoming event.

Extend Policy Model 

Extend the Policy with the new Scenario

Create a new Task called MorningBoozeCheckAlt1. Create a new unique ID for the task, and fill in a description for the task. Use the same input and output fields that we used earlier when we defined the MorningBoozeCheck task earlier.

Table 1. Input fields for MorningBoozeCheckAlt1 task

Parameter Name

Parameter Type

time

timestamp_type

sale_ID

sale_ID_type

amount

price_type

item_ID

item_ID_type

quantity

quantity_type

assistant_ID

assistant_ID_type

branch_ID

branch_ID_type

notes

notes_type

Table 2. Output fields for MorningBoozeCheckAlt1 task

Parameter Name

Parameter Type

sale_ID

sale_ID_type

time

timestamp_type

authorised

authorised_type

message

message_type

amount

price_type

item_ID

item_ID_type

assistant_ID

assistant_ID_type

quantity

quantity_type

branch_ID

branch_ID_type

notes

notes_type

This task also requires some ‘Task Logic’ to implement the new behaviour for this task.

For simplicity use the following code for the task logic (`MorningBoozeCheckAlt1` task logic (`MVEL`)). It again assumes that all items with item_ID between 1000 and 2000 contain alcohol. We again use the standard Java time utilities to check if the current time is between 00:00:00 CET and 13:00:00 CET or if it is Sunday.

For this task we will again author the logic using the `MVEL <https://en.wikipedia.org/wiki/MVEL>`__ scripting language. Sample task logic code (specified in `MVEL <https://en.wikipedia.org/wiki/MVEL>`__) is given below. For a detailed guide to how to write your own logic in `JavaScript <https://en.wikipedia.org/wiki/JavaScript>`__, `MVEL <https://en.wikipedia.org/wiki/MVEL>`__ or one of the other supported languages please refer to APEX Programmers Guide.

The task definition is now complete. Now that we have created our task, we can can add this task to the single pre-existing state (BoozeAuthDecide) in our policy.

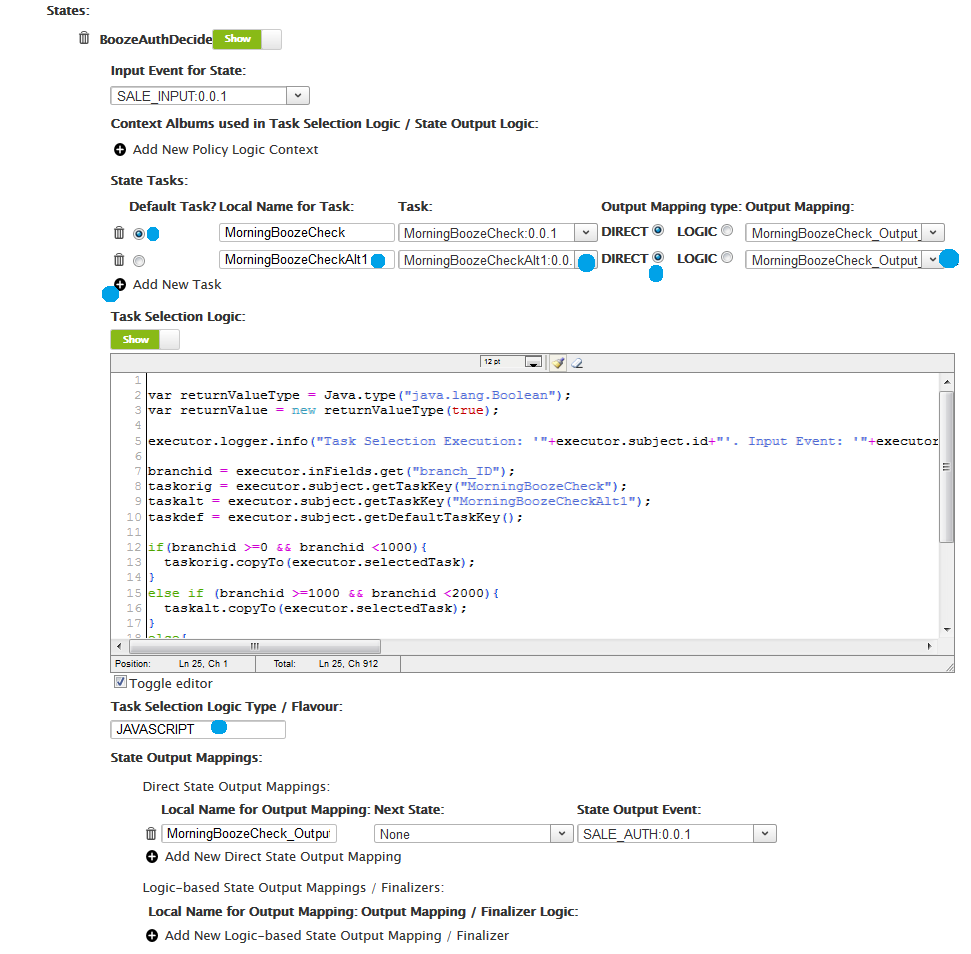

Since our state has more than one task we must define some logic to determine which task should be used each time the state is executed. This task selection logic is defined in the state definition. For our BoozeAuthDecide state we want the choice of which task to use to be based on the branch_ID from which the SALE_INPUT event originated. For simplicity sake let us assume that branches with branch_ID between 0 and 999 should use the MorningBoozeCheck task, and the branches with with branch_ID between 1000 and 1999 should use the MorningBoozeCheckAlt1 task.

This time, for variety, we will author the task selection logic using the `JavaScript <https://en.wikipedia.org/wiki/JavaScript>`__ scripting language. Sample task selection logic code is given here (`BoozeAuthDecide` task selection logic (`JavaScript`)). It is necessary to mark one of the tasks as the ‘Default Task’ so that the task selection logic always has a fallback default option in cases where a particular task cannot be selected. In this case the MorningBoozeCheck task can be the default task.

Congratulations, you have now completed the second step towards your first APEX policy. The policy model containing our new policy can again be validated and exported from the editor and saved as shown in Step 1.

Congratulations, you have now completed the second step towards your first APEX policy.The policy can now be loaded into the APEX Policy Engine.

Test The Policy 

Test Policy Step 2

To start a new APEX Engine you can use the following configuration. In a full APEX installation you can find this configuration in $APEX_HOME/examples/config/MyFirstPolicy/2/MyFirstPolicyConfigStdin2StdoutJsonEvent.json. Note, this has changed from the configuration file in Step 1 to enable the JAVASCRIPT executor for our new ‘Task Selection Logic’.

To test the policy try paste the following events into the console as the APEX engine executes. Note, all tests from Step 1 will still work perfectly since none of those events originate from a branch with branch_ID between 1000 and 2000. The ‘Task Selection Logic’ will therefore pick the MorningBoozeCheck task as expected, and will therefore give the same results.

Table 1. Inputs and Outputs when testing *My First Policy*
Input Event (JSON)	Output Event (JSON)	comment
{ "nameSpace": "com.hyperm", "name": "SALE_INPUT", "version": "0.0.1", "time": 1483346466000, "sale_ID": 99999992, "amount": 1249, "item_ID": 1012, "quantity": 1, "assistant_ID": 12, "branch_ID": 2 }	{ "nameSpace": "com.hyperm", "name": "SALE_AUTH", "version": "0.0.1", "source": "", "target": "", "amount": 1249, "assistant_ID": 12, "authorised": false, "branch_ID": 2, "item_ID": 1012, "message": "Sale not authorised by policy task MorningBoozeCheck for time 08:41:06 GMT. Alcohol can not be sold between 00:00:00 GMT and 11:30:00 GMT", "notes": null, "quantity": 1, "sale_ID": 99999992, "time": 1483346466000 }	Request to buy alcohol item (item_ID=1249) at 08:41:06 GMT on Monday, 02 January 2017. Sale is not authorized. Uses the MorningBoozeCheck task.
{ "nameSpace": "com.hyperm", "name": "SALE_INPUT", "version": "0.0.1", "time": 1482398073000, "sale_ID": 99999981, "amount": 299, "item_ID": 1047, "quantity": 1, "assistant_ID": 1212, "branch_ID": 1002 }	{ "nameSpace" : "com.hyperm", "name" : "SALE_AUTH", "version" : "0.0.1", "source" : "", "target" : "", "sale_ID" : 99999981, "amount" : 299, "assistant_ID" : 1212, "notes" : null, "quantity" : 1, "branch_ID" : 1002, "item_ID" : 1047, "authorised" : false, "time" : 1482398073000, "message" : "Sale not authorised by policy task MorningBoozeCheckAlt1 for time 10:14:33 CET. Alcohol can not be sold between 00:00:00 CET and 13:00:00 CET or on Sunday" }	Request to buy alcohol (item_ID=1047) at 10:14:33 on Thursday, 22 December 2016. Sale is not authorized. Uses the MorningBoozeCheckAlt1 task.
{ "nameSpace": "com.hyperm", "name": "SALE_INPUT", "version": "0.0.1", "time": 1482077977000, "sale_ID": 99999982, "amount": 2199, "item_ID": 1443, "quantity": 12, "assistant_ID": 94, "branch_ID": 1003, "notes": "Buy 3, get 1 free!!" }	{ "nameSpace" : "com.hyperm", "name" : "SALE_AUTH", "version" : "0.0.1", "source" : "", "target" : "", "sale_ID" : 99999982, "amount" : 2199, "assistant_ID" : 94, "notes" : "Buy 3, get 1 free!!", "quantity" : 12, "branch_ID" : 1003, "item_ID" : 1443, "authorised" : false, "time" : 1482077977000, "message" : "Sale not authorised by policy task MorningBoozeCheckAlt1 for time 17:19:37 CET. Alcohol can not be sold between 00:00:00 CET and 13:00:00 CET or on Sunday" }	Request to buy alcohol (item_ID=1443) at 17:19:37 on Sunday, 18 December 2016. Sale is not authorized. Uses the MorningBoozeCheckAlt1 task.
{ "nameSpace": "com.hyperm", "name": "SALE_INPUT", "version": "0.0.1", "time": 1483351989000, "sale_ID": 99999983, "amount": 699, "item_ID": 5321, "quantity": 1, "assistant_ID": 2323, "branch_ID": 1001, "notes": "" }	{ "nameSpace" : "com.hyperm", "name" : "SALE_AUTH", "version" : "0.0.1", "source" : "", "target" : "", "sale_ID" : 99999983, "amount" : 699, "assistant_ID" : 2323, "notes" : "", "quantity" : 1, "branch_ID" : 1001, "item_ID" : 5321, "authorised" : true, "time" : 1483351989000, "message" : "Sale authorised by policy task MorningBoozeCheckAlt1 for time 11:13:09 CET" }	Request to buy non-alcoholic item (item_ID=5321) at 11:13:09 on Monday, 2 January 2017. Sale is authorized. Uses the MorningBoozeCheckAlt1 task.

CLI Editor File 

Policy 2 in CLI Editor

An equivalent version of the MyFirstPolicyModel policy model can be generated using the APEX CLI editor. A sample APEX CLI script is shown below:

APEX CLI Editor code for Policy 2

2.3.0-SNAPSHOT Last updated 2020-04-03 16:04:24 IST
