OOM User Guide

Warning

THIS PAGE NEEDS TO BE EITHER REWRITTEN OR SOMETHING AS SOME INFO IS NO LONGER RELEVANT

The ONAP Operations Manager (OOM) provide the ability to manage the entire life-cycle of an ONAP installation, from the initial deployment to final decommissioning. This guide provides instructions for users of ONAP to use the Kubernetes/Helm system as a complete ONAP management system.

This guide provides many examples of Helm command line operations. For a complete description of these commands please refer to the Helm Documentation.

The following sections describe the life-cycle operations:

• Deploy - with built-in component dependency management

• Configure - unified configuration across all ONAP components

• Monitor - real-time health monitoring feeding to a Consul UI and Kubernetes

• Heal- failed ONAP containers are recreated automatically

• Scale - cluster ONAP services to enable seamless scaling

• Upgrade - change-out containers or configuration with little or no service impact

• Delete - cleanup individual containers or entire deployments

Deploy

The OOM team with assistance from the ONAP project teams, have built a comprehensive set of Helm charts, yaml files very similar to TOSCA files, that describe the composition of each of the ONAP components and the relationship within and between components. Using this model Helm is able to deploy all of ONAP with a few simple commands.

Please refer to the OOM Deployment Guide for deployment pre-requisites and options

Note

Refer to the OOM Custom Overrides section on how to update overrides.yaml and values.yaml

Configure

Each project within ONAP has its own configuration data generally consisting of: environment variables, configuration files, and database initial values. Many technologies are used across the projects resulting in significant operational complexity and an inability to apply global parameters across the entire ONAP deployment. OOM solves this problem by introducing a common configuration technology, Helm charts, that provide a hierarchical configuration with the ability to override values with higher level charts or command line options.

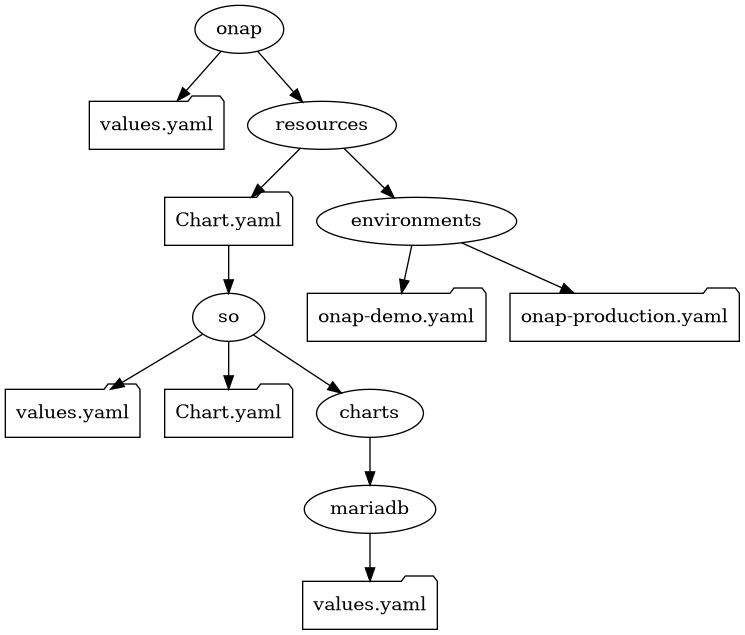

The structure of the configuration of ONAP is shown in the following diagram. Note that key/value pairs of a parent will always take precedence over those of a child. Also note that values set on the command line have the highest precedence of all.

The top level onap/values.yaml file contains the values required to be set before deploying ONAP. Here is the contents of this file:

Default ONAP values.yaml

# Copyright © 2019 Amdocs, Bell Canada
# Copyright (c) 2020 Nordix Foundation, Modifications
# Modifications Copyright © 2020-2021 Nokia
# Modifications Copyright © 2023 Nordix Foundation
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#       http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

#################################################################
# Global configuration overrides.
#
# These overrides will affect all helm charts (ie. applications)
# that are listed below and are 'enabled'.
#################################################################
global:
  # Change to an unused port prefix range to prevent port conflicts
  # with other instances running within the same k8s cluster
  nodePortPrefix: 302
  nodePortPrefixExt: 304

  # ONAP Repository
  # Four different repositories are used
  # You can change individually these repositories to ones that will serve the
  # right images. If credentials are needed for one of them, see below.
  repository: nexus3.onap.org:10001
  dockerHubRepository: &dockerHubRepository docker.io
  elasticRepository: &elasticRepository docker.elastic.co
  quayRepository: quay.io
  googleK8sRepository: k8s.gcr.io
  githubContainerRegistry: ghcr.io

  # Default credentials
  # they're optional. If the target repository doesn't need them, comment them
  repositoryCred:
    user: docker
    password: docker
  # If you want / need authentication on the repositories, please set
  # Don't set them if the target repo is the same than others
  # so id you've set repository to value `my.private.repo` and same for
  # dockerHubRepository, you'll have to configure only repository (exclusive) OR
  # dockerHubCred.
  # dockerHubCred:
  #   user: myuser
  #   password: mypassord
  # elasticCred:
  #   user: myuser
  #   password: mypassord
  # googleK8sCred:
  #   user: myuser
  #   password: mypassord

  # Default definition of the secret containing the docker image repository
  # credentials. In the default ONAP deployment the secret is created by the
  # repository-wrapper component, which uses the secrets defined above.
  # If this is not wanted or other secrets are created, alternative secret
  # names can be used
  # Overrides for specific images can be done, if the "image" entry is used as
  # a map and the "pullSecrets" is used, e.g.
  # image:
  #   ...
  #   pullSecrets:
  #     - myRegistryKeySecretName
  #
  imagePullSecrets:
    - '{{ include "common.namespace" . }}-docker-registry-key'

  # common global images
  # Busybox for simple shell manipulation
  busyboxImage: busybox:1.34.1

  # curl image
  curlImage: curlimages/curl:7.80.0

  # env substitution image
  envsubstImage: dibi/envsubst:1

  # generate htpasswd files image
  # there's only latest image for htpasswd
  htpasswdImage: xmartlabs/htpasswd:latest

  # kubenretes client image
  kubectlImage: bitnami/kubectl:1.22.4

  # logging agent
  loggingImage: beats/filebeat:5.5.0

  # mariadb client image
  mariadbImage: bitnami/mariadb:10.5.8

  # nginx server image
  nginxImage: bitnami/nginx:1.21.4

  # postgreSQL client and server image
  postgresImage: crunchydata/crunchy-postgres:centos8-13.2-4.6.1

  # readiness check image
  readinessImage: onap/oom/readiness:6.0.3

  # image pull policy
  pullPolicy: Always

  # default java image
  jreImage: onap/integration-java11:10.0.0

  # default clusterName
  # {{ template "common.fullname" . }}.{{ template "common.namespace" . }}.svc.{{ .Values.global.clusterName }}
  clusterName: cluster.local

  # default mount path root directory referenced
  # by persistent volumes and log files
  persistence:
    mountPath: /dockerdata-nfs
    enableDefaultStorageclass: false
    parameters: {}
    storageclassProvisioner: kubernetes.io/no-provisioner
    volumeReclaimPolicy: Retain

  # Global flag to enable the creation of default roles instead of using
  # common roles-wrapper
  createDefaultRoles: false

  # override default resource limit flavor for all charts
  flavor: unlimited

  # flag to enable debugging - application support required
  debugEnabled: false

  # default password complexity
  # available options: phrase, name, pin, basic, short, medium, long, maximum security
  # More datails: https://www.masterpasswordapp.com/masterpassword-algorithm.pdf
  passwordStrength: long

  # configuration to set log level to all components (the one that are using
  # "common.log.level" to set this)
  # can be overrided per components by setting logConfiguration.logLevelOverride
  # to the desired value
  # logLevel: DEBUG

  # Global ingress configuration
  ingress:
    # generally enable ingress for ONAP components
    enabled: false
    # enable all component's Ingress interfaces
    enable_all: false

    # Provider: ingress, istio, gw-api
    provider: istio
    # Ingress class (only for provider "ingress"): e.g. nginx, traefik
    ingressClass:
    # Ingress Selector (only for provider "istio") to match with the
    # ingress pod label "istio=ingress"
    ingressSelector: ingress
    # optional: common used Gateway (for Istio, GW-API) and listener names
    commonGateway:
      name: ""
      httpListener: ""
      httpsListener: ""

    # default Ingress base URL and preAddr- and postAddr settings
    # Ingress URLs result:
    # <preaddr><component.ingress.service.baseaddr><postaddr>.<baseurl>
    virtualhost:
      # Default Ingress base URL
      # can be overwritten in component by setting ingress.baseurlOverride
      baseurl: "simpledemo.onap.org"
      # prefix for baseaddr
      # can be overwritten in component by setting ingress.preaddrOverride
      preaddr: ""
      # postfix for baseaddr
      # can be overwritten in component by setting ingress.postaddrOverride
      postaddr: ""

    # All http (port 80) requests via ingress will be redirected
    # to port 443 on Ingress controller
    # only valid for Istio Gateway (ServiceMesh enabled)
    config:
      ssl: "redirect"
    # you can set an own Secret containing a certificate
    # only valid for Istio Gateway (ServiceMesh enabled)
    #  tls:
    #    secret: 'my-ingress-cert'

    # optional: Namespace of the Istio IngressGateway or Gateway-API
    # only valid for Istio Gateway (ServiceMesh enabled)
    namespace: istio-ingress

  # Global Service Mesh configuration
  serviceMesh:
    enabled: false
    tls: true
    # be aware that linkerd is not well tested
    engine: "istio" # valid value: istio or linkerd

  # Global Istio Authorization Policy configuration
  authorizationPolicies:
    enabled: false

  # metrics part
  # If enabled, exporters (for prometheus) will be deployed
  # if custom resources set to yes, CRD from prometheus operartor will be
  # created
  # Not all components have it enabled.
  #
  metrics:
    enabled: true
    custom_resources: false

  # Disabling AAF
  # POC Mode, only for use in development environment
  # Keep it enabled in production
  aafEnabled: false

  # Disabling MSB
  # POC Mode, only for use in development environment
  msbEnabled: true

  # default values for certificates
  certificate:
    default:
      renewBefore: 720h #30 days
      duration:    8760h #365 days
      subject:
        organization: "Linux-Foundation"
        country: "US"
        locality: "San-Francisco"
        province: "California"
        organizationalUnit: "ONAP"
      issuer:
        group: certmanager.onap.org
        kind: CMPv2Issuer
        name: cmpv2-issuer-onap

  # Enabling CMPv2
  cmpv2Enabled: false
  platform:
    certificates:
      clientSecretName: oom-cert-service-client-tls-secret
      keystoreKeyRef: keystore.jks
      truststoreKeyRef: truststore.jks
      keystorePasswordSecretName: oom-cert-service-certificates-password
      keystorePasswordSecretKey: password
      truststorePasswordSecretName: oom-cert-service-certificates-password
      truststorePasswordSecretKey: password

  # Indicates offline deployment build
  # Set to true if you are rendering helm charts for offline deployment
  # Otherwise keep it disabled
  offlineDeploymentBuild: false

  # TLS
  # Set to false if you want to disable TLS for NodePorts. Be aware that this
  # will loosen your security.
  # if set this element will force or not tls even if serviceMesh.tls is set.
  tlsEnabled: false

  # Logging
  # Currently, centralized logging is not in best shape so it's disabled by
  # default
  centralizedLoggingEnabled: &centralizedLogging false

  # Example of specific for the components where you want to disable TLS only for
  # it:
  # if set this element will force or not tls even if global.serviceMesh.tls and
  # global.tlsEnabled is set otherwise.
  # robot:
  #   tlsOverride: false

  # Global storage configuration
  #    Set to "-" for default, or with the name of the storage class
  #    Please note that if you use AAF, CDS, SDC, Netbox or Robot, you need a
  #    storageclass with RWX capabilities (or set specific configuration for these
  #    components).
  # persistence:
  #   storageClass: "-"

# Example of specific for the components which requires RWX:
# cds:
#   cds-blueprints-processor:
#     persistence:
#       storageClassOverride: "My_RWX_Storage_Class"
# sdc:
#   sdc-onboarding-be:
#     persistence:
#       storageClassOverride: "My_RWX_Storage_Class"

#################################################################
# Enable/disable and configure helm charts (ie. applications)
# to customize the ONAP deployment.
#################################################################

aai:
  enabled: false
cassandra:
  enabled: false
cds:
  enabled: false
cli:
  enabled: false
cps:
  enabled: false
dcaegen2-services:
  enabled: false
holmes:
  enabled: false
dmaap:
  enabled: false
  message-router:
    enabled: false
  dmaap-dr-prov:
    enabled: false
  dmaap-dr-node:
    enabled: false
oof:
  enabled: false
mariadb-galera:
  enabled: false
msb:
  enabled: false
multicloud:
  enabled: false
nbi:
  enabled: false
  config:
    # openstack configuration
    openStackRegion: "Yolo"
    openStackVNFTenantId: "1234"
policy:
  enabled: false
portal-ng:
  enabled: false
robot:
  enabled: false
  config:
    # openStackEncryptedPasswordHere should match the encrypted string used in SO and overridden per environment
    openStackEncryptedPasswordHere: "c124921a3a0efbe579782cde8227681e"
sdc:
  enabled: false
sdnc:
  enabled: false

  replicaCount: 1

  mysql:
    replicaCount: 1
so:
  enabled: false

  replicaCount: 1

  liveness:
    # necessary to disable liveness probe when setting breakpoints
    # in debugger so K8s doesn't restart unresponsive container
    enabled: false

  # so server configuration
  config:
    # message router configuration
    dmaapTopic: "AUTO"
    # openstack configuration
    openStackUserName: "vnf_user"
    openStackRegion: "RegionOne"
    openStackKeyStoneUrl: "http://1.2.3.4:5000"
    openStackServiceTenantName: "service"
    openStackEncryptedPasswordHere: "c124921a3a0efbe579782cde8227681e"

  # in order to enable static password for so-monitoring uncomment:
  # so-monitoring:
  #   server:
  #     monitoring:
  #       password: demo123456!

strimzi:
  enabled: false
  # Kafka replication & disk storage should be dimensioned
  # according to each given system use case.
  replicaCount: 3
  persistence:
    kafka:
      size: 10Gi
    zookeeper:
      size: 1Gi
  # Strimzi kafka bridge is an optional http api towards
  # kafka provided by https://strimzi.io/docs/bridge/latest/
  strimzi-kafka-bridge:
    enabled: false

uui:
  enabled: false
vfc:
  enabled: false
vnfsdk:
  enabled: false
modeling:
  enabled: false
platform:
  enabled: false
a1policymanagement:
  enabled: false
repository-wrapper:
  enabled: true
roles-wrapper:
  enabled: true

One may wish to create a value file that is specific to a given deployment such that it can be differentiated from other deployments. For example, a onap-development.yaml file may create a minimal environment for development while onap-production.yaml might describe a production deployment that operates independently of the developer version.

For example, if the production OpenStack instance was different from a developer’s instance, the onap-production.yaml file may contain a different value for the vnfDeployment/openstack/oam_network_cidr key as shown below.

nsPrefix: onap
nodePortPrefix: 302
apps: consul msb mso message-router sdnc vid robot portal policy appc aai
sdc dcaegen2 log cli multicloud clamp vnfsdk aaf kube2msb
dataRootDir: /dockerdata-nfs

# docker repositories
repository:
  onap: nexus3.onap.org:10001
  oom: oomk8s
  aai: aaionap
  filebeat: docker.elastic.co

image:
  pullPolicy: Never

# vnf deployment environment
vnfDeployment:
  openstack:
    ubuntu_14_image: "Ubuntu_14.04.5_LTS"
    public_net_id: "e8f51956-00dd-4425-af36-045716781ffc"
    oam_network_id: "d4769dfb-c9e4-4f72-b3d6-1d18f4ac4ee6"
    oam_subnet_id: "191f7580-acf6-4c2b-8ec0-ba7d99b3bc4e"
    oam_network_cidr: "192.168.30.0/24"
<...>

To deploy ONAP with this environment file, enter:

> helm deploy local/onap -n onap -f onap/resources/environments/onap-production.yaml --set global.masterPassword=password

Default ONAP values.yaml

#################################################################
# Global configuration overrides.
#
# These overrides will affect all helm charts (ie. applications)
# that are listed below and are 'enabled'.
#################################################################
global:
  # Change to an unused port prefix range to prevent port conflicts
  # with other instances running within the same k8s cluster
  nodePortPrefix: 302

  # image repositories
  repository: nexus3.onap.org:10001
  repositorySecret: eyJuZXh1czMub25hcC5vcmc6MTAwMDEiOnsidXNlcm5hbWUiOiJkb2NrZXIiLCJwYXNzd29yZCI6ImRvY2tlciIsImVtYWlsIjoiQCIsImF1dGgiOiJaRzlqYTJWeU9tUnZZMnRsY2c9PSJ9fQ==
  # readiness check
  readinessImage: onap/oom/readiness:6.0.3
  # logging agent
  loggingRepository: docker.elastic.co

  # image pull policy
  pullPolicy: IfNotPresent

  # override default mount path root directory
  # referenced by persistent volumes and log files
  persistence:
    mountPath: /dockerdata

  # flag to enable debugging - application support required
  debugEnabled: true

#################################################################
# Enable/disable and configure helm charts (ie. applications)
# to customize the ONAP deployment.
#################################################################
aai:
  enabled: false
cli:
  enabled: false
cps:
  enabled: false
dcaegen2:
  enabled: false
message-router:
  enabled: false
msb:
  enabled: false
multicloud:
  enabled: false
policy:
  enabled: false
robot: # Robot Health Check
  enabled: true
sdc:
  enabled: false
sdnc:
  enabled: false
so: # Service Orchestrator
  enabled: true

  replicaCount: 1

  liveness:
    # necessary to disable liveness probe when setting breakpoints
    # in debugger so K8s doesn't restart unresponsive container
    enabled: true

  # so server configuration
  config:
    # message router configuration
    dmaapTopic: "AUTO"
    # openstack configuration
    openStackUserName: "vnf_user"
    openStackRegion: "RegionOne"
    openStackKeyStoneUrl: "http://1.2.3.4:5000"
    openStackServiceTenantName: "service"
    openStackEncryptedPasswordHere: "c124921a3a0efbe579782cde8227681e"

  # configure embedded mariadb
  mariadb:
    config:
      mariadbRootPassword: password
uui:
  enabled: false
vfc:
  enabled: false
vnfsdk:
  enabled: false

When deploying all of ONAP, the dependencies section of the Chart.yaml file controls which and what version of the ONAP components are included. Here is an excerpt of this file:

dependencies:
<...>
  - name: so
    version: ~12.0.0
    repository: '@local'
    condition: so.enabled
<...>

The ~ operator in the so version value indicates that the latest “10.X.X” version of so shall be used thus allowing the chart to allow for minor upgrades that don’t impact the so API; hence, version 10.0.1 will be installed in this case.

The onap/resources/environment/dev.yaml (see the excerpt below) enables for fine grained control on what components are included as part of this deployment. By changing this so line to enabled: false the so component will not be deployed. If this change is part of an upgrade the existing so component will be shut down. Other so parameters and even so child values can be modified, for example the so’s liveness probe could be disabled (which is not recommended as this change would disable auto-healing of so).

#################################################################
# Global configuration overrides.
#
# These overrides will affect all helm charts (ie. applications)
# that are listed below and are 'enabled'.
#################################################################
global:
<...>

#################################################################
# Enable/disable and configure helm charts (ie. applications)
# to customize the ONAP deployment.
#################################################################
aaf:
  enabled: false
<...>
so: # Service Orchestrator
  enabled: true

  replicaCount: 1

  liveness:
    # necessary to disable liveness probe when setting breakpoints
    # in debugger so K8s doesn't restart unresponsive container
    enabled: true

<...>

Monitor

All highly available systems include at least one facility to monitor the health of components within the system. Such health monitors are often used as inputs to distributed coordination systems (such as etcd, Zookeeper, or Consul) and monitoring systems (such as Nagios or Zabbix). OOM provides two mechanisms to monitor the real-time health of an ONAP deployment:

• a Consul GUI for a human operator or downstream monitoring systems and Kubernetes liveness probes that enable automatic healing of failed containers, and

• a set of liveness probes which feed into the Kubernetes manager which are described in the Heal section.

Within ONAP, Consul is the monitoring system of choice and deployed by OOM in two parts:

• a three-way, centralized Consul server cluster is deployed as a highly available monitor of all of the ONAP components, and

• a number of Consul agents.

The Consul server provides a user interface that allows a user to graphically view the current health status of all of the ONAP components for which agents have been created - a sample from the ONAP Integration labs follows:

To see the real-time health of a deployment go to: http://<kubernetes IP>:30270/ui/ where a GUI much like the following will be found:

Note

If Consul GUI is not accessible, you can refer this kubectl port-forward method to access an application

Heal

The ONAP deployment is defined by Helm charts as mentioned earlier. These Helm charts are also used to implement automatic recoverability of ONAP components when individual components fail. Once ONAP is deployed, a “liveness” probe starts checking the health of the components after a specified startup time.

Should a liveness probe indicate a failed container it will be terminated and a replacement will be started in its place - containers are ephemeral. Should the deployment specification indicate that there are one or more dependencies to this container or component (for example a dependency on a database) the dependency will be satisfied before the replacement container/component is started. This mechanism ensures that, after a failure, all of the ONAP components restart successfully.

To test healing, the following command can be used to delete a pod:

> kubectl delete pod [pod name] -n [pod namespace]

One could then use the following command to monitor the pods and observe the pod being terminated and the service being automatically healed with the creation of a replacement pod:

> kubectl get pods --all-namespaces -o=wide

Scale

Many of the ONAP components are horizontally scalable which allows them to adapt to expected offered load. During the Beijing release scaling is static, that is during deployment or upgrade a cluster size is defined and this cluster will be maintained even in the presence of faults. The parameter that controls the cluster size of a given component is found in the values.yaml file for that component. Here is an excerpt that shows this parameter:

# default number of instances
replicaCount: 1

In order to change the size of a cluster, an operator could use a helm upgrade (described in detail in the next section) as follows:

> helm upgrade [RELEASE] [CHART] [flags]

The RELEASE argument can be obtained from the following command:

> helm list

Below is the example for the same:

> helm list
  NAME                    REVISION        UPDATED                         STATUS          CHART                   APP VERSION     NAMESPACE
  dev                     1               Wed Oct 14 13:49:52 2020        DEPLOYED        onap-12.0.0             london          onap
  dev-cassandra           5               Thu Oct 15 14:45:34 2020        DEPLOYED        cassandra-12.0.0                         onap
  dev-contrib             1               Wed Oct 14 13:52:53 2020        DEPLOYED        contrib-12.0.0                           onap
  dev-mariadb-galera      1               Wed Oct 14 13:55:56 2020        DEPLOYED        mariadb-galera-12.0.0                    onap

Here the Name column shows the RELEASE NAME, In our case we want to try the scale operation on cassandra, thus the RELEASE NAME would be dev-cassandra.

Now we need to obtain the chart name for cassandra. Use the below command to get the chart name:

> helm search cassandra

Below is the example for the same:

> helm search cassandra
  NAME                    CHART VERSION   APP VERSION     DESCRIPTION
  local/cassandra         12.0.0                          ONAP cassandra
  local/portal-cassandra  12.0.0                          Portal cassandra
  local/aaf-cass          12.0.0                          ONAP AAF cassandra
  local/sdc-cs            12.0.0                          ONAP Service Design and Creation Cassandra

Here the Name column shows the chart name. As we want to try the scale operation for cassandra, thus the corresponding chart name is local/cassandra

Now we have both the command’s arguments, thus we can perform the scale operation for cassandra as follows:

> helm upgrade dev-cassandra local/cassandra --set replicaCount=3

Using this command we can scale up or scale down the cassandra db instances.

The ONAP components use Kubernetes provided facilities to build clustered, highly available systems including: Services with load-balancers, ReplicaSet, and StatefulSet. Some of the open-source projects used by the ONAP components directly support clustered configurations, for example ODL and MariaDB Galera.

The Kubernetes Services abstraction to provide a consistent access point for each of the ONAP components, independent of the pod or container architecture of that component. For example, SDN-C uses OpenDaylight clustering with a default cluster size of three but uses a Kubernetes service to and change the number of pods in this abstract this cluster from the other ONAP components such that the cluster could change size and this change is isolated from the other ONAP components by the load-balancer implemented in the ODL service abstraction.

A ReplicaSet is a construct that is used to describe the desired state of the cluster. For example ‘replicas: 3’ indicates to Kubernetes that a cluster of 3 instances is the desired state. Should one of the members of the cluster fail, a new member will be automatically started to replace it.

Some of the ONAP components many need a more deterministic deployment; for example to enable intra-cluster communication. For these applications the component can be deployed as a Kubernetes StatefulSet which will maintain a persistent identifier for the pods and thus a stable network id for the pods. For example: the pod names might be web-0, web-1, web-{N-1} for N ‘web’ pods with corresponding DNS entries such that intra service communication is simple even if the pods are physically distributed across multiple nodes. An example of how these capabilities can be used is described in the Running Consul on Kubernetes tutorial.

Upgrade

Helm has built-in capabilities to enable the upgrade of pods without causing a loss of the service being provided by that pod or pods (if configured as a cluster). As described in the OOM Developer’s Guide, ONAP components provide an abstracted ‘service’ end point with the pods or containers providing this service hidden from other ONAP components by a load balancer. This capability is used during upgrades to allow a pod with a new image to be added to the service before removing the pod with the old image. This ‘make before break’ capability ensures minimal downtime.

Prior to doing an upgrade, determine of the status of the deployed charts:

> helm list
NAME REVISION UPDATED                  STATUS    CHART     NAMESPACE
so   1        Mon Feb 5 10:05:22 2020  DEPLOYED  so-12.0.0 onap

When upgrading a cluster a parameter controls the minimum size of the cluster during the upgrade while another parameter controls the maximum number of nodes in the cluster. For example, SNDC configured as a 3-way ODL cluster might require that during the upgrade no fewer than 2 pods are available at all times to provide service while no more than 5 pods are ever deployed across the two versions at any one time to avoid depleting the cluster of resources. In this scenario, the SDNC cluster would start with 3 old pods then Kubernetes may add a new pod (3 old, 1 new), delete one old (2 old, 1 new), add two new pods (2 old, 3 new) and finally delete the 2 old pods (3 new). During this sequence the constraints of the minimum of two pods and maximum of five would be maintained while providing service the whole time.

Initiation of an upgrade is triggered by changes in the Helm charts. For example, if the image specified for one of the pods in the SDNC deployment specification were to change (i.e. point to a new Docker image in the nexus3 repository - commonly through the change of a deployment variable), the sequence of events described in the previous paragraph would be initiated.

For example, to upgrade a container by changing configuration, specifically an environment value:

> helm upgrade so onap/so --version 12.0.1 --set enableDebug=true

Issuing this command will result in the appropriate container being stopped by Kubernetes and replaced with a new container with the new environment value.

To upgrade a component to a new version with a new configuration file enter:

> helm upgrade so onap/so --version 12.0.1 -f environments/demo.yaml

To fetch release history enter:

> helm history so
REVISION UPDATED                  STATUS     CHART     DESCRIPTION
1        Mon Jul 5 10:05:22 2022  SUPERSEDED so-12.0.0 Install complete
2        Mon Jul 5 10:10:55 2022  DEPLOYED   so-12.0.1 Upgrade complete

Unfortunately, not all upgrades are successful. In recognition of this the lineup of pods within an ONAP deployment is tagged such that an administrator may force the ONAP deployment back to the previously tagged configuration or to a specific configuration, say to jump back two steps if an incompatibility between two ONAP components is discovered after the two individual upgrades succeeded.

This rollback functionality gives the administrator confidence that in the unfortunate circumstance of a failed upgrade the system can be rapidly brought back to a known good state. This process of rolling upgrades while under service is illustrated in this short YouTube video showing a Zero Downtime Upgrade of a web application while under a 10 million transaction per second load.

For example, to roll-back back to previous system revision enter:

> helm rollback so 1

> helm history so
REVISION UPDATED                  STATUS     CHART     DESCRIPTION
1        Mon Jul 5 10:05:22 2022  SUPERSEDED so-12.0.0 Install complete
2        Mon Jul 5 10:10:55 2022  SUPERSEDED so-12.0.1 Upgrade complete
3        Mon Jul 5 10:14:32 2022  DEPLOYED   so-12.0.0 Rollback to 1

Note

The description field can be overridden to document actions taken or include tracking numbers.

Many of the ONAP components contain their own databases which are used to record configuration or state information. The schemas of these databases may change from version to version in such a way that data stored within the database needs to be migrated between versions. If such a migration script is available it can be invoked during the upgrade (or rollback) by Container Lifecycle Hooks. Two such hooks are available, PostStart and PreStop, which containers can access by registering a handler against one or both. Note that it is the responsibility of the ONAP component owners to implement the hook handlers - which could be a shell script or a call to a specific container HTTP endpoint - following the guidelines listed on the Kubernetes site. Lifecycle hooks are not restricted to database migration or even upgrades but can be used anywhere specific operations need to be taken during lifecycle operations.

OOM uses Helm K8S package manager to deploy ONAP components. Each component is arranged in a packaging format called a chart - a collection of files that describe a set of k8s resources. Helm allows for rolling upgrades of the ONAP component deployed. To upgrade a component Helm release you will need an updated Helm chart. The chart might have modified, deleted or added values, deployment yamls, and more. To get the release name use:

> helm ls

To easily upgrade the release use:

> helm upgrade [RELEASE] [CHART]

To roll back to a previous release version use:

> helm rollback [flags] [RELEASE] [REVISION]

For example, to upgrade the onap-so helm release to the latest SO container release v1.1.2:

• Edit so values.yaml which is part of the chart

• Change “so: nexus3.onap.org:10001/openecomp/so:v1.1.1” to “so: nexus3.onap.org:10001/openecomp/so:v1.1.2”

• From the chart location run:

  > helm upgrade onap-so


The previous so pod will be terminated and a new so pod with an updated so container will be created.

Delete

Existing deployments can be partially or fully removed once they are no longer needed. To minimize errors it is recommended that before deleting components from a running deployment the operator perform a ‘dry-run’ to display exactly what will happen with a given command prior to actually deleting anything. For example:

> helm undeploy onap --dry-run

will display the outcome of deleting the ‘onap’ release from the deployment. To completely delete a release and remove it from the internal store enter:

> helm undeploy onap

Once complete undeploy is done then delete the namespace as well using following command:

>  kubectl delete namespace <name of namespace>

Note

You need to provide the namespace name which you used during deployment, below is the example:

>  kubectl delete namespace onap

One can also remove individual components from a deployment by changing the ONAP configuration values. For example, to remove so from a running deployment enter:

> helm undeploy onap-so

will remove so as the configuration indicates it’s no longer part of the deployment. This might be useful if a one wanted to replace just so by installing a custom version.
