ONAP Operations Manager Project

Warning

THIS PAGE PROB NEEDS A REWRITE AS IT IS OUTDATED

The ONAP Operations Manager (OOM) is responsible for life-cycle management of the ONAP platform itself; components such as SO, SDNC, etc. It is not responsible for the management of services, VNFs or infrastructure instantiated by ONAP or used by ONAP to host such services or VNFs. OOM uses the open-source Kubernetes container management system as a means to manage the Docker containers that compose ONAP where the containers are hosted either directly on bare-metal servers or on VMs hosted by a 3rd party management system. OOM ensures that ONAP is easily deployable and maintainable throughout its life cycle while using hardware resources efficiently.

../_images/oomLogoV2-medium.png

In summary OOM provides the following capabilities:

  • Deploy - with built-in component dependency management

  • Configure - unified configuration across all ONAP components

  • Monitor - real-time health monitoring feeding to a Consul UI and Kubernetes

  • Heal- failed ONAP containers are recreated automatically

  • Scale - cluster ONAP services to enable seamless scaling

  • Upgrade - change-out containers or configuration with little or no service impact

  • Delete - cleanup individual containers or entire deployments

OOM supports a wide variety of Kubernetes private clouds - built with ClusterAPI, Kubespray - and public cloud infrastructures such as: Microsoft Azure, Amazon AWS, Google GCD, VMware VIO, and OpenStack.

The OOM documentation is broken into four different areas each targeted at a different user:

The ONAP Operations Manager Release Notes for OOM describe the incremental features per release.

Component Orchestration Overview

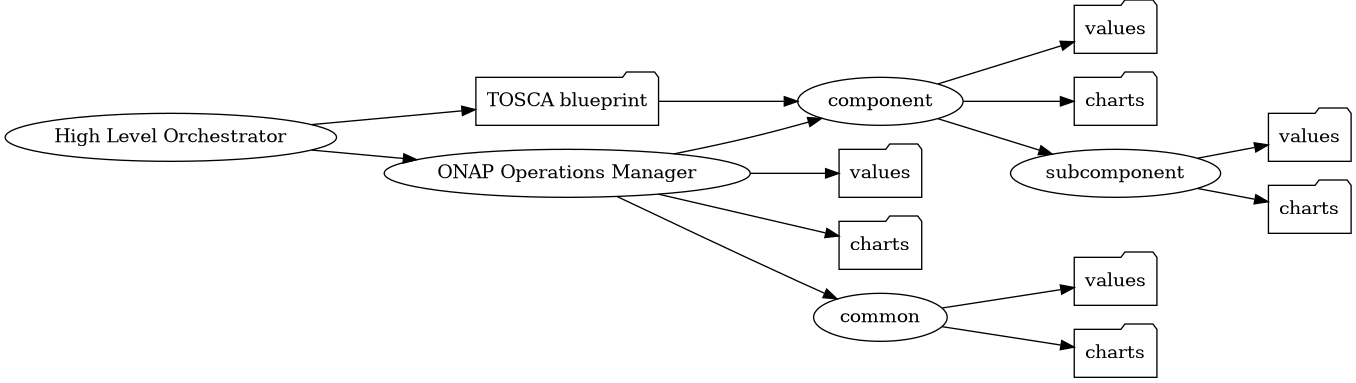

Multiple technologies, templates, and extensible plug-in frameworks are used in ONAP to orchestrate platform instances of software component artifacts. A few standard configurations are provide that may be suitable for test, development, and some production deployments by substitution of local or platform wide parameters. Larger and more automated deployments may require integration the component technologies, templates, and frameworks with a higher level of automated orchestration and control software. Design guidelines are provided to insure the component level templates and frameworks can be easily integrated and maintained. The following diagram provides an overview of these with links to examples and templates for describing new ones.

digraph COO {
   rankdir="LR";

   {
      node      [shape=folder]
      oValues   [label="values"]
      cValues   [label="values"]
      comValues [label="values"]
      sValues   [label="values"]
      oCharts   [label="charts"]
      cCharts   [label="charts"]
      comCharts [label="charts"]
      sCharts   [label="charts"]
      blueprint [label="TOSCA blueprint"]
   }
   {oom [label="ONAP Operations Manager"]}
   {hlo [label="High Level Orchestrator"]}


   hlo -> blueprint
   hlo -> oom
   oom -> oValues
   oom -> oCharts
   oom -> component
   oom -> common
   common -> comValues
   common -> comCharts
   component -> cValues
   component -> cCharts
   component -> subcomponent
   subcomponent -> sValues
   subcomponent -> sCharts
   blueprint -> component
}
