Performance Test of Policy XACML PDP

The Performance test was executed by performing requests against the Policy RESTful APIs.

A default ONAP installation in the Policy tenant in UNH was used to run the tests.

The Agent VMs in this lab have the following configuration:

  • 16GB RAM

  • 8 VCPU

Summary

The Performance test was executed, and the result analysed, via:

jmeter -Jduration=1200 -Jusers=10 \
    -Jxacml_ip=$ip -Jpap_ip=$ip -Japi_ip=$ip \
    -Jxacml_port=30111 -Jpap_port=30197 -Japi_port=30664 \
    -n -t perf.jmx -l testresults.jtl

Note: the ports listed above correspond to port 6969 of the respective components.

The performance tests runs the following, all in parallel:

  • Healthcheck, 10 simultaneous threads

  • Statistics, 10 simultaneous threads

  • Decisions, 10 simultaneous threads, each running the following in sequence:

    • Monitoring Decision

    • Monitoring Decision, abbreviated

    • Naming Decision

    • Optimization Decision

    • Default Guard Decision (always “Permit”)

    • Frequency Limiter Guard Decision

    • Min/Max Guard Decision

When the script starts up, it uses policy-api to create, and policy-pap to deploy, the policies that are needed by the test. It assumes that the “naming” policy has already been created and deployed. Once the test completes, it undeploys and deletes the policies that it previously created.

Results

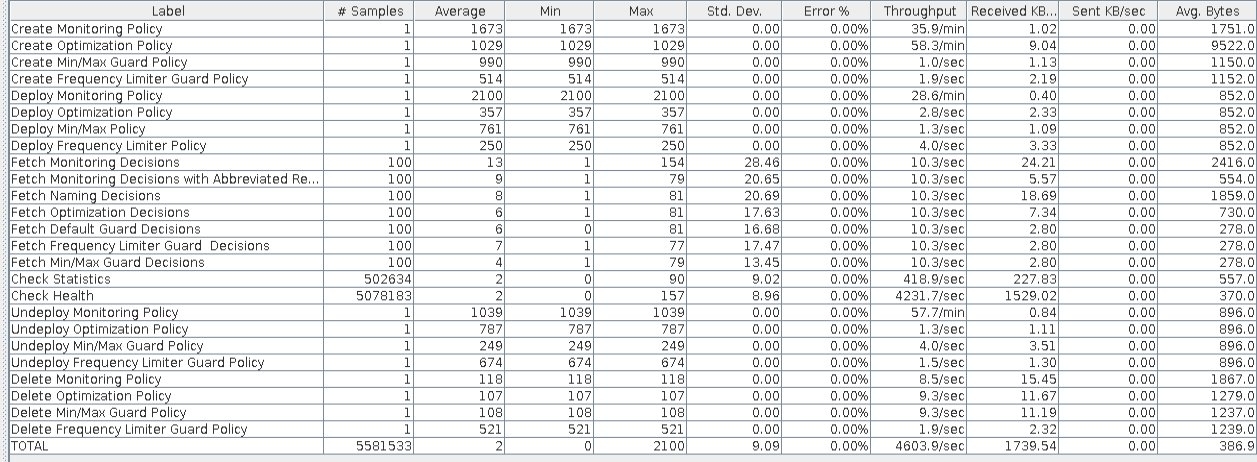

The test was run for 20 minutes with 10 users (i.e., threads), with the following results:

Number of Users

Throughput (requests/second)

Average Latency (ms)

10

4603

2
../../_images/s3p-perf-xacml.png

Stability Test of Policy XACML PDP

The stability test were executed in the same lab. The test was run via jmeter.

Summary

The stability test was performed on a default ONAP OOM installation in the Policy tenant of the UNH lab. JMeter injected the traffic defined in the XACML PDP stability script with the following command:

jmeter.sh -Jduration=259200 -Jusers=2 -Jxacml_ip=$ip -Jpap_ip=$ip -Japi_ip=$ip \
    -Jxacml_port=30111 -Jpap_port=30197 -Japi_port=30664 --nongui --testfile stability.jmx

Note: the ports listed above correspond to port 6969 of the respective components.

The default log level of the root and org.eclipse.jetty.server.RequestLog loggers in the logback.xml of the XACML PDP (om/kubernetes/policy/components/policy-xacml-pdp/resources/config/logback.xml) was set to WARN since the OOM installation did have log rotation enabled of the container logs in the kubernetes worker nodes.

The stability test, stability.jmx, runs the following, all in parallel:

  • Healthcheck, 2 simultaneous threads

  • Statistics, 2 simultaneous threads

  • Decisions, 2 simultaneous threads, each running the following tasks in sequence:

    • Monitoring Decision

    • Monitoring Decision, abbreviated

    • Naming Decision

    • Optimization Decision

    • Default Guard Decision (always “Permit”)

    • Frequency Limiter Guard Decision

    • Min/Max Guard Decision

When the script starts up, it uses policy-api to create, and policy-pap to deploy the policies that are needed by the test. It assumes that the “naming” policy has already been created and deployed. Once the test completes, it undeploys and deletes the policies that it previously created.

Results

The stability summary results were reported by JMeter with the following summary line:

summary = 997436933 in 71:59:45 = 3848.4/s Avg:     0 Min:     0 Max:  1480 Err:     0 (0.00%)

The XACML PDP offered very good performance with JMeter for the traffic mix described above, using 3848 threads per second to inject the traffic load. The average transaction time is insignificant. The maximum transaction time of 1480ms. occured in the beginning of the run while the JVM was warming up.
