Policy Clamp Automation Composition
Both the Performance and the Stability tests were executed by performing requests against acm components installed as docker images in local environment.
Setup Details
acm runtime component docker image is started and running.
Participant docker images policy-clamp-cl-pf-ppnt, policy-clamp-cl-http-ppnt, policy-clamp-cl-k8s-ppnt are started and running.
Dmaap simulator for communication between components.
mariadb docker container for policy and clampacm database.
policy-api for communication between policy participant and policy-framework
Both tests were run via jMeter, which was installed on a separate VM.
Stability Test of acm components
Test Plan
The 72 hours stability test ran the following steps sequentially in a single threaded loop.
Create Policy defaultDomain - creates an operational policy using policy/api component
Delete Policy sampleDomain - deletes the operational policy sampleDomain using policy/api component
Commission Contorlloop definition - commissions the acm definition in runtime
Instantiate acm - Instantiate the acm towards participants
Check acm state - check the current state of acm
Change State to PASSIVE - change the state of the acm to PASSIVE
Check acm state - check the current state of acm
Change State to UNINITIALISED - change the state of the ACM to UNINITIALISED
Check acm state - check the current state of acm
Delete instantiated acm - delete the instantiated acm from all participants
Delete ACM Definition - delete the acm definition on runtime
The following steps can be used to configure the parameters of test plan.
HTTP Authorization Manager - used to store user/password authentication details.
HTTP Header Manager - used to store headers which will be used for making HTTP requests.
User Defined Variables - used to store following user defined parameters.
Name |
Description |
---|---|
RUNTIME_HOST |
IP Address or host name of acm runtime component |
RUNTIME_PORT |
Port number of acm runtime components for making REST API calls |
POLICY_PARTICIPANT_HOST |
IP Address or host name of policy participant |
POLICY_PARTICIPANT_HOST_PORT |
Port number of policy participant |
The test was run in the background via “nohup”, to prevent it from being interrupted:
nohup ./jMeter/apache-jmeter-5.2.1/bin/jmeter -n -t stability.jmx -l testresults.jtl
Test Results
Summary
Stability test plan was triggered for 72 hours.
Note
The assertions of state changes are not completely taken care of, as the stability is ran with acm components alone, and not including complete policy framework deployment, which makes it difficult for actual state changes from PASSIVE to RUNNING etc to happen.
Test Statistics
Total # of requests |
Success % |
Error % |
Average time taken per request |
---|---|---|---|
99992 |
100.00 % |
0.00 % |
192 ms |
ACM component Setup
CONTAINER ID |
IMAGE |
PORTS |
NAMES |
---|---|---|---|
a9cb0cd103cf |
onap/policy-clamp-cl-runtime:latest |
6969/tcp |
policy-clamp-cl-runtime |
886e572b8438 |
onap/policy-clamp-cl-pf-ppnt:latest |
6973/tcp |
policy-clamp-cl-pf-ppnt |
035707b1b95f |
nexus3.onap.org:10001/onap/policy-api:latest |
6969/tcp |
policy-api |
d34204f95ff3 |
onap/policy-clamp-cl-http-ppnt:latest |
6971/tcp |
policy-clamp-cl-http-ppnt |
4470e608c9a8 |
onap/policy-clamp-cl-k8s-ppnt:latest |
6972/tcp, 8083/tcp |
policy-clamp-cl-k8s-ppnt |
62229d46b79c |
nexus3.onap.org:10001/onap/policy-models-simulator:latest |
3905/tcp, 6666/tcp, 6668-6670/tcp, 6680/tcp |
simulator |
efaf0ca5e1f0 |
nexus3.onap.org:10001/mariadb:10.5.8 |
3306/tcp |
mariadb |
Note
There were no failures during the 72 hours test.

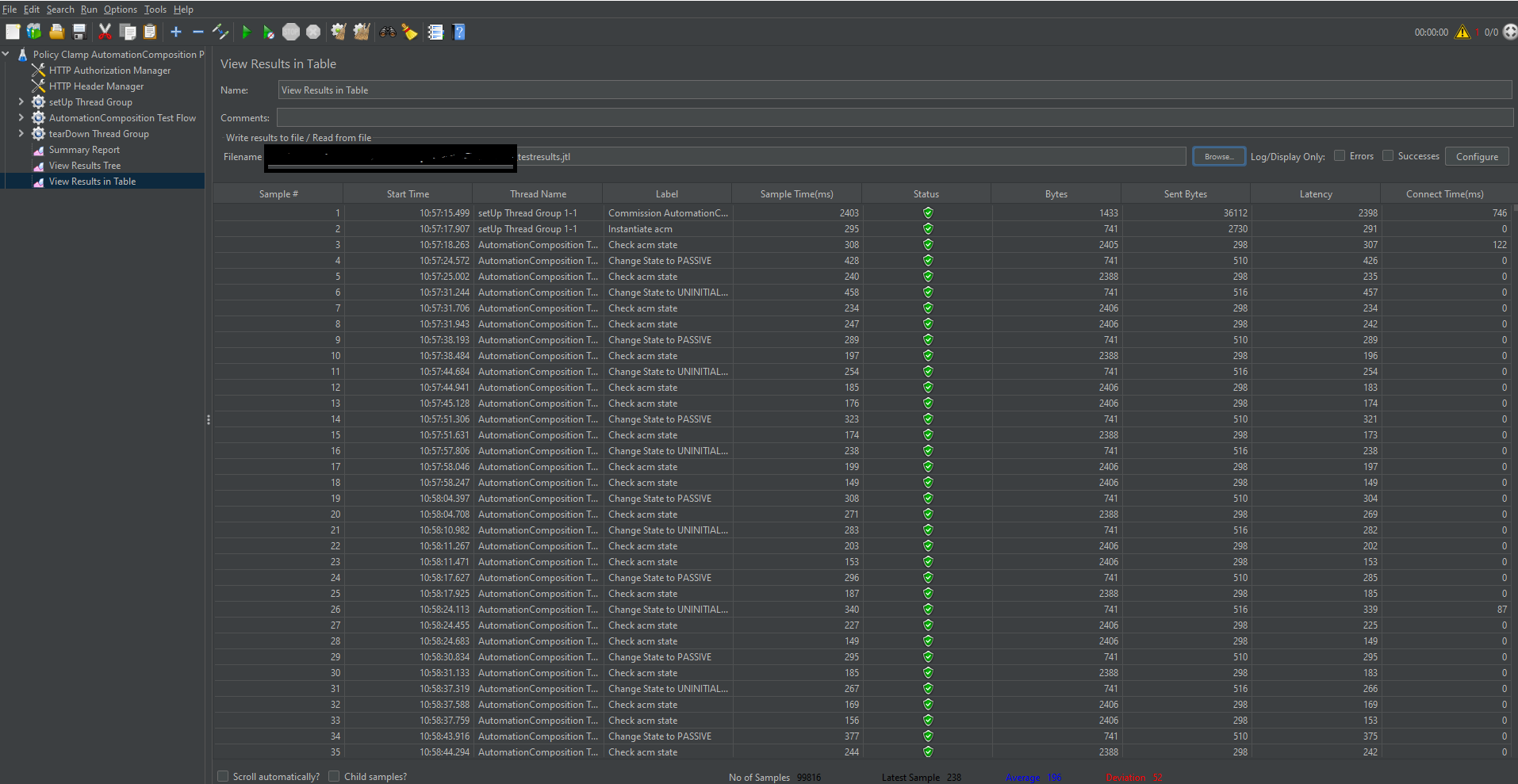

JMeter Screenshot

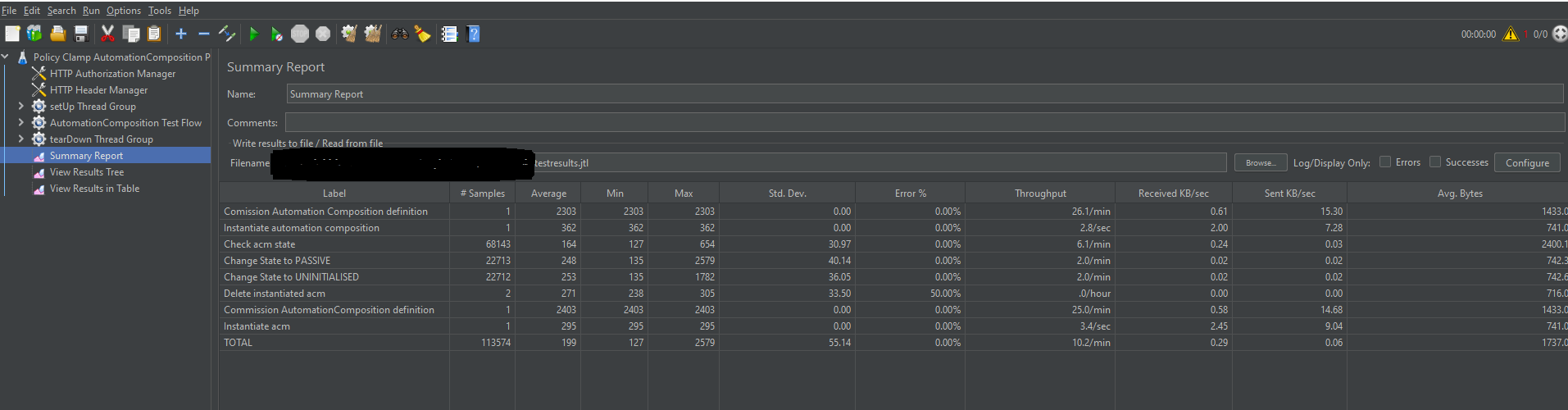

JMeter Screenshot
Memory and CPU usage
The memory and CPU usage can be monitored by running “docker stats” command. A snapshot is taken before and after test execution to monitor the changes in resource utilization.
Memory and CPU usage before test execution:
Memory and CPU usage after test execution:
Performance Test of acm components
Introduction
Performance test of acm components has the goal of testing the min/avg/max processing time and rest call throughput for all the requests with multiple requests at the same time.
Setup Details
The performance test is performed on a similar setup as Stability test. The JMeter VM will be sending a large number of REST requests to the runtime component and collecting the statistics.
Test Plan
Performance test plan is the same as the stability test plan above except for the few differences listed below.
Increase the number of threads up to 5 (simulating 5 users’ behaviours at the same time).
Reduce the test time to 2 hours.
Run Test
Running/Triggering the performance test will be the same as the stability test. That is, launch JMeter pointing to corresponding .jmx test plan. The RUNTIME_HOST, RUNTIME_PORT, POLICY_PARTICIPANT_HOST, POLICY_PARTICIPANT_HOST_PORT are already set up in .jmx
nohup ./jMeter/apache-jmeter-5.2.1/bin/jmeter -n -t performance.jmx -l testresults.jtl
Once the test execution is completed, execute the below script to get the statistics:
$ cd ./clamp/testsuites/performance/src/main/resources/testplans
$ ./results.sh resultTree.log
Test Results
Test results are shown as below.
Test Statistics
Total # of requests |
Success % |
Error % |
Average time taken per request |
---|---|---|---|
13809 |
100 % |
0.00 % |
206 ms |
ACM component Setup
CONTAINER ID |
IMAGE |
PORTS |
NAMES |
---|---|---|---|
a9cb0cd103cf |
onap/policy-clamp-cl-runtime:latest |
6969/tcp |
policy-clamp-cl-runtime |
886e572b8438 |
onap/policy-clamp-cl-pf-ppnt:latest |
6973/tcp |
policy-clamp-cl-pf-ppnt |
035707b1b95f |
nexus3.onap.org:10001/onap/policy-api:latest |
6969/tcp |
policy-api |
d34204f95ff3 |
onap/policy-clamp-cl-http-ppnt:latest |
6971/tcp |
policy-clamp-cl-http-ppnt |
4470e608c9a8 |
onap/policy-clamp-cl-k8s-ppnt:latest |
6972/tcp, 8083/tcp |
policy-clamp-cl-k8s-ppnt |
62229d46b79c |
nexus3.onap.org:10001/onap/policy-models-simulator:latest |
3905/tcp, 6666/tcp, 6668-6670/tcp, 6680/tcp |
simulator |
efaf0ca5e1f0 |
nexus3.onap.org:10001/mariadb:10.5.8 |
3306/tcp |
mariadb |

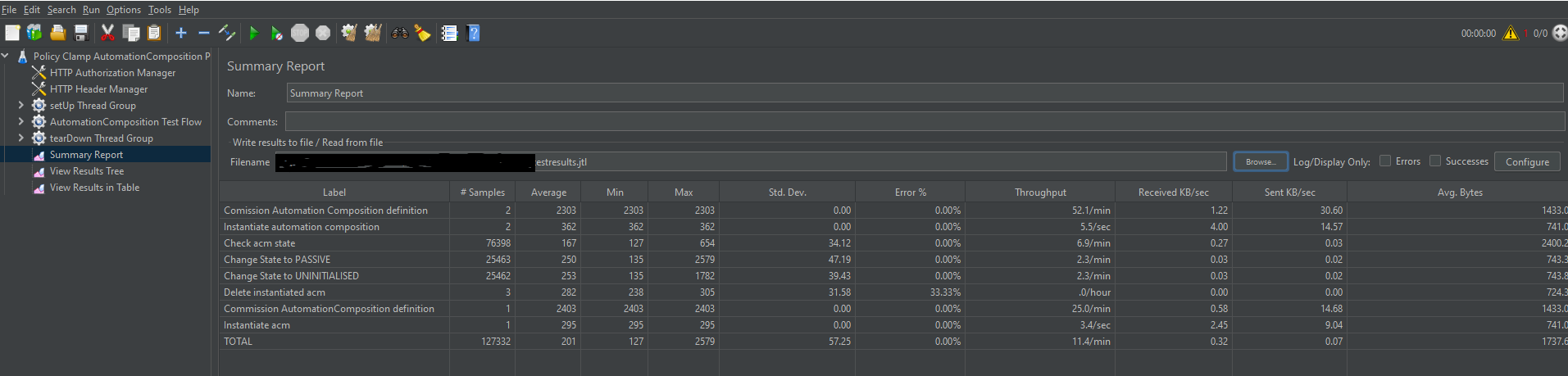

JMeter Screenshot
