The ACM Automation Composition Participant Protocol

The ACM Automation Composition protocol is an asynchronous protocol that is used by the ACM runtime to coordinate lifecycle management of Automation Composition instances. The protocol supports the functions described in the sections below.

Protocol Dialogues

The protocol supports the dialogues described below.

Participant Registration and De-Registration

Participant Registration is performed by a Participant when it starts up. It registers its ID and the ACM Element Types it supports with the ACM runtime.

Participant Deregistration is performed by a Participant when it shuts down. It deregisters its ID and type with the ACM runtime. The participant should already have cleared down all its’ ACM Element instances and set their states to “Not In Service”.

Automation Composition Priming and De-Priming

The Priming operation sends Automation Composition Types and common property values to participants for each Automation Composition Element Type in the Automation Composition Type. The ParticipantPrime message type is sent to trigger priming and depriming in participants in participants

A participant should respond for each Automation Composition Element Type, thus causing the full Automation Composition Type to become primed. Note that if more than one participant can support an Automation Composition Element Type the ACM Runtime uses the participant in the first response it receives for that Automation Composition Element Type.

The ACM Runtime updates the priming information in the database.

The Depriming operation removes Automation Composition Types and common property values on participants for each Automation Composition Element Type in the Automation Composition Type.

A participant should respond for each Automation Composition Element Type, thus causing the full Automation Composition Type to become deprimed.

The ACM Runtime updates the priming information in the database.

Automation Composition Update

Automation Composition Update handles creation, change, and deletion of Automation Compositions on participants. Change of Automation Compositions uses a semantic versioning approach and follows the semantics described on the page 4.1 Management of Automation Composition Instance Configurations.

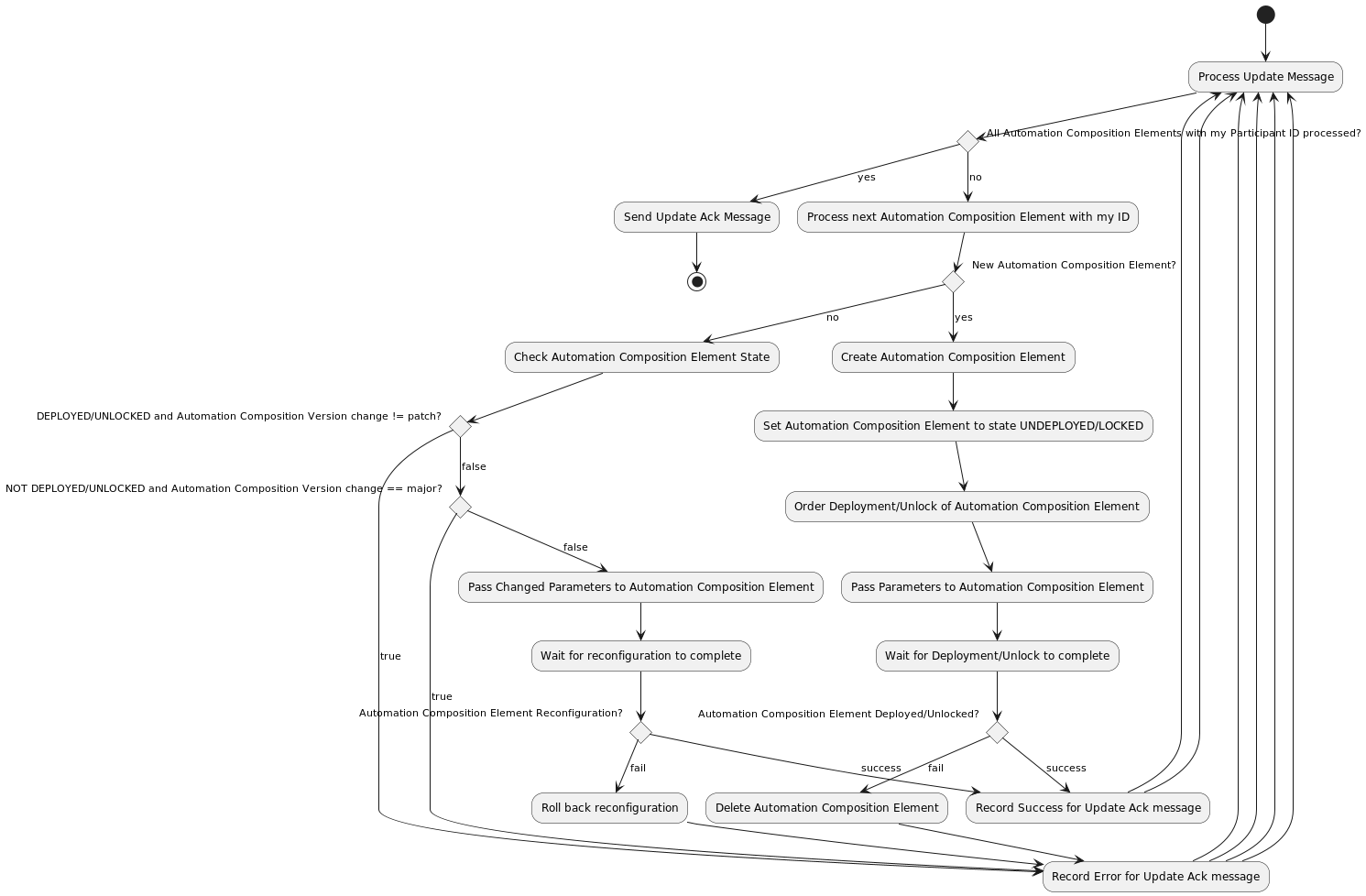

The handling of an ACMUpdate message in each participant is as shown below.

Automation Composition State Change

This dialogue is used to change the state of Automation Compositions and their Automation Composition Elements. The CLAMP Runtime sends an Automation Composition State Change message on the Automation Composition to all participants. Participants that have Automation Composition Elements in that Automation Composition attempt an update on the state of the Automation Composition elements they have for that Automation Composition, and report the result back.

The startPhase in the Definition of TOSCA fundamental Automation Composition Types is particularly important in Automation Composition state changes because sometimes the user wishes to control the order in which the state changes in Automation Composition Elements in an Automation Composition. In-state changes from UNDEPLOYED → DEPLOYED, Automation Composition elements are started in increasing order of their startPhase. In-state changes from DEPLOYED → UNDEPLOYED, Automation Composition elements are started in decreasing order of their startPhase.

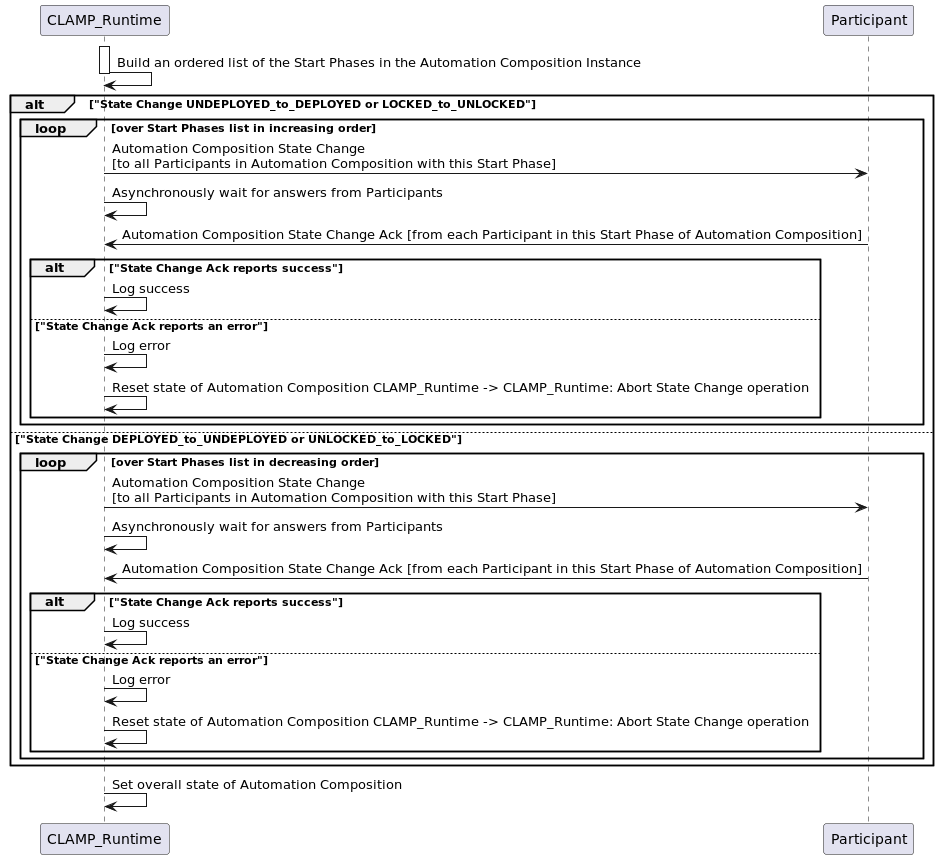

The ACM runtime controls the state change process described in the diagram below. The ACM runtime sends an Automation Composition state change message on the messaging system (e.g. Kafka) to all participants in a particular start phase so, in each state change multiple Automation Composition State Change messages are sent, one for each start phase in the Automation Composition. If more than one Automation Composition Element has the same start phase, those Automation Composition Elements receive the same Automation Composition State Change message from Kafka and start in parallel.

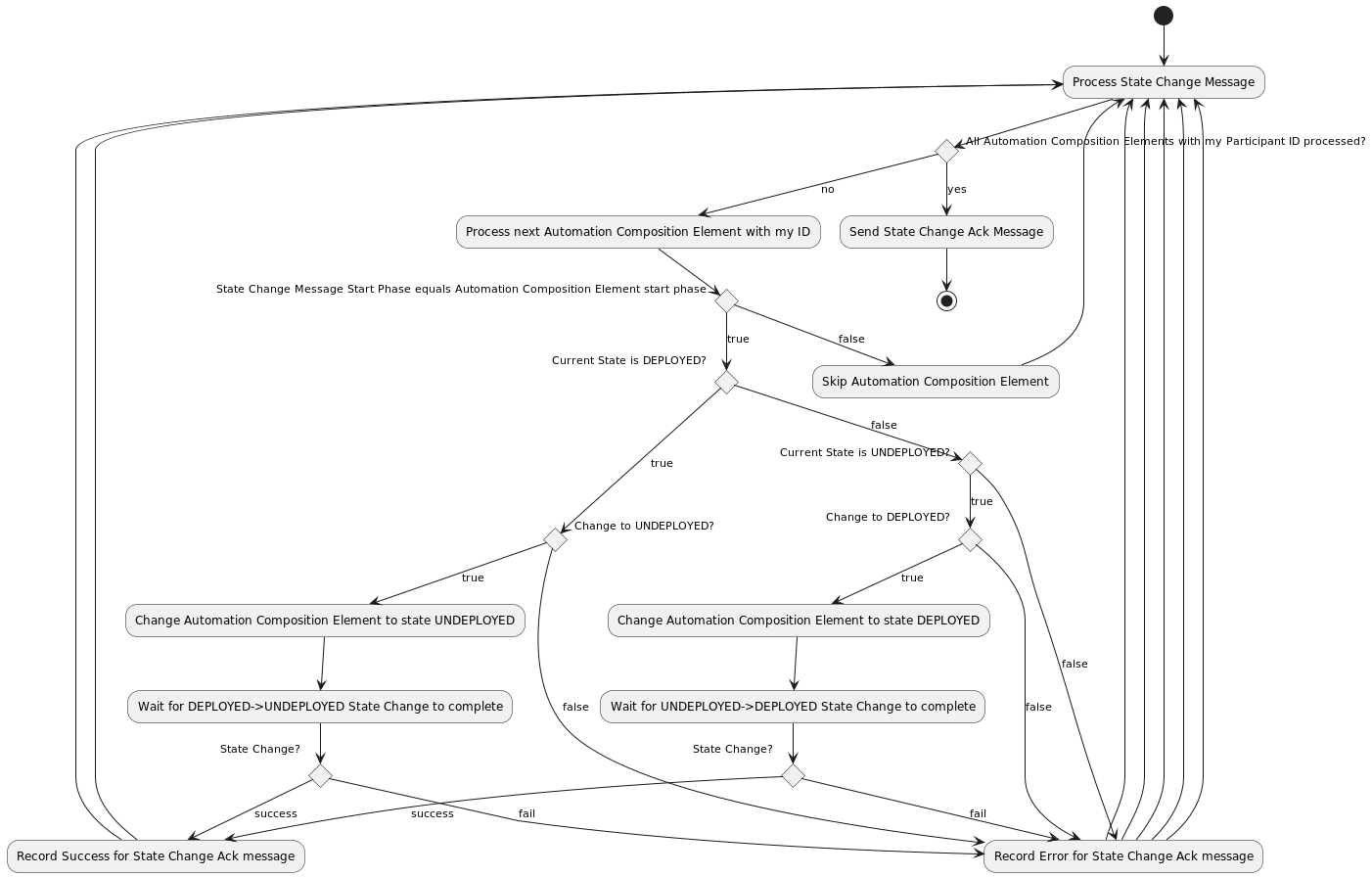

The Participant reads each State Change Message it sees on Kafka. If the start phase on the Automation Composition State Change message matches the Start Phase of the Automation Composition Element, the participant processes the state change message. Otherwise, the participant ignores the message.

The flow of the DEPLOY/UNDEPLOY state change messages are shown below. But the same flow is true for LOCK/UNLOCK and DELETE

Note

More details of the state machine are available on ACM States

Automation Composition Monitoring and Reporting

This dialogue is used as a heartbeat mechanism for participants, to monitor the status of Automation Composition Elements, and to gather statistics on Automation Compositions. The ParticipantStatus message is sent periodically by each participant. The reporting interval for sending the message is configurable.

Messages

The CLAMP Automation Composition Participant Protocol uses the following messages. The descriptions below give an overview of each message. For the precise definition of the messages, see the CLAMP code at Github . All messages are carried on DMaaP.

ACM Messages

Message	Source	Target	Purpose	Important Fields	Field Descriptions
ParticipantRegister	Participant	ACM Runtime	Participant registers with the ACM runtime	participantId	The ID of this participant – in UUID format
				participantSupportedElementTypes	A list of element types that this participant supports
ParticipantRegisterAck	ACM Runtime	Participant	Acknowledgment of Participant Registration	participantId	The ID of this participant – in UUID format
				Result	Success/Fail
				Message	A message indicating the reason for failure
ParticipantDeregister	Participant	ACM Runtime	Participant deregisters with the ACM runtime	participantId	The ID of this participant – in UUID format
ParticipantDeregisterAck	ACM Runtime	Participant	Acknowledgment of Participant Deegistration	participantId	The ID of this participant – in UUID format
				Result	Success/Fail
				Message	A message indicating the reason for failure
ParticipantPrime	ACM Runtime	Participant	Trigger priming/depriming in the participant	participantId	The ID of this participant – in UUID format
				participantDefinitionUpdates	Contains AC element definition values for a particular participant
				Result	Success/Fail
				Message	A message indicating the reason for failure
ParticipantPrimeAck	Participant	ACM Runtime	Message to confirm participant has been primed/deprimed	participantId	The ID of this participant – in UUID format
				Result	Success/Fail
				Message	A message indicating the reason for failure
ParticipantStatusReq	ACM Runtime	Participant	Message sent to reques a status update from the participant	participantId	The ID of the participant to request update from – in UUID format
				messageType	Enum indicating the type of message PARTICIPANT_STATUS_REQ
ParticipantStatus	Participant	ACM Runtime	Status update message	state	Enum indicating the current state of the participant
				participantDefinitionUpdates	A list of ParticipantDefinition updates, returned in response to ParticipantStatusReq only
				automationCompositionInfoList	List of AutomationCompositionInfo types with AutomationCompositionId and its state
				participantSupportedElementTypes	Ac element types that this participant is capable for deployinh/supporting
AutomationCompositionDeploy	ACM Runtime	Participant	Message to request change state of composition to DEPLOY	participantUpdatesList	A list of ParticipantUpdates instances which carries details of an updated participant.
				startPhase	Integer indicating the start up order of the elements
				participantId	UUID indicating the participant the message is intended for
AutomationCompositionDeployAck	Participant	ACM Runtime	Message to acknowledge that deploy or state change message has been received by participant	automationCompositionResultMap	A map with AutomationCompositionElementID as its key, and a pair of result and message as value per AutomationCompositionElement
				automationCompositionId	The id of the automation composition related to this message
AutomationCompositionStateChange	ACM Runtime	Participant	Message to request change state of composition to states other than DEPLOY	deployOrderedState	Enum indicating the deployment state being requested
				lockOrderedState	Enum indicating the lock state being requested
				startPhase	Integer indicating the start up order of the elements
				participantId	UUID indicating the participant the message is intended for
