ONAP Vnfd Model
Contents
Diagrams
Vnfd View
Vnfd Topology View
Vnfd Deployment Flavor

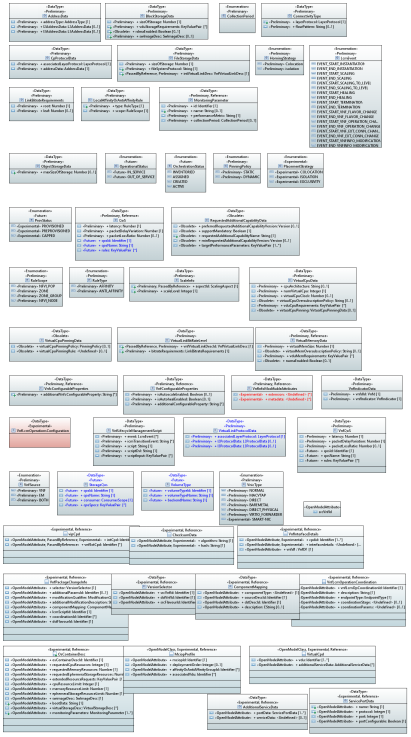

VNF Datatypes
Classes
ChecksumData
The ChecksumData information element supports providing information about the result of performing a checksum operation over some arbitrary data.
Applied stereotypes:
Reference
reference: IFA011 v3.3.1
Experimental
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
algorithm |
String |
1 |
OpenModelAttribute
Experimental |
Species the algorithm used to obtain the checksum value. |
Vnf::ObjectClasses::ChecksumData::algorithm |
hash |
String |
1 |
OpenModelAttribute
Experimental |
Contains the result of applying the algorithm indicated by the algorithm attribute to the data to which this ChecksumData refers. |
Vnf::ObjectClasses::ChecksumData::hash |
InstantiationLevel
The InstantiationLevel class describes a given level of resources to be instantiated within a DF in term of the number of VNFC instances to be created from each VDU. All the VDUs referenced in the level shall be part of the corresponding DF and their number shall be within the range (min/max) for this DF.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
levelId |
Identifier |
1 |
OpenModelAttribute
Preliminary |
Uniquely identifies a level with the DF. |
Vnf::ObjectClasses::InstantiationLevel::levelId |
description |
String |
1 |
OpenModelAttribute
Preliminary |
Human readable description of the level. |
Vnf::ObjectClasses::InstantiationLevel::description |
scaleInfo |
ScaleInfo |
0..* |
OpenModelAttribute
Preliminary |
Represents for each aspect the scale level that corresponds to this instantiation level. scaleInfo shall be present if the VNF supports scaling. |
Vnf::ObjectClasses::InstantiationLevel::scaleInfo |
_vduLevel |
VduLevel |
1..* |
OpenModelAttribute
Preliminary |
Indicates the number of instance of this VDU to deploy for this level. |
Vnf::ObjectClasses::InstantiationLevel::_vduLevel |
virtualLinkBitRateLevel |
VirtualLinkBitRateLevel |
0..* |
OpenModelAttribute
Preliminary |
Specifies bitrate requirements applicable to virtual links created from particular virtual link descriptors for this level. NOTE: If not present, it is assumed that the bitrate requirements can be derived from those specified in the VduCpd instances applicable to the internal VL. If present in both the InstantiationLevel and the VduCpd instances applicable to the internal VL, the highest value takes precedence. |
Vnf::ObjectClasses::InstantiationLevel::virtualLinkBitRateLevel |
LogicalNodeRequirements
This information element describes compute, memory and I/O requirements that are to be associated with the logical node of infrastructure. The logical node requirements are a sub-component of the VDU level requirements. As an example for illustration purposes, a logical node correlates to the concept of a NUMA cell in libvirt terminology.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
id |
Identifier |
1 |
OpenModelAttribute
Preliminary |
Identifies this set of logical node requirements. |
Vnf::ObjectClasses::LogicalNodeRequirements::id |
logicalNodeRequirementDetail |
KeyValuePair |
1..* |
OpenModelAttribute
Preliminary |
The logical node-level compute, memory and I/O requirements. An array of key-value pairs that articulate the deployment requirements. This could include the number of CPU cores on this logical node, a memory configuration specific to a logical node (e.g. such as available in the Linux kernel via the libnuma library) or a requirement related to the association of an I/O device with the logical node. |
Vnf::ObjectClasses::LogicalNodeRequirements::logicalNodeRequirementDetail |
MciopProfile
A Managed Container Infrastructure Object Package (MCIOP) is a hierarchical aggregate of information objects for OS container management and orchestration. Multiple MCIOPs can be included in a VNF Package. The MciopProfile information element provides properties of the MCIOP which are used during deployment of containerized workloads based on a MCIOP, associated to a VNF deployment flavour.
Applied stereotypes:
Reference
reference: IFA011 v4.1.1
Experimental
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
mciopId |
Identifier |
1 |
OpenModelAttribute
|
Identifies the MCIOP in the VNF package. |
Vnf::ObjectClasses::MciopProfile::mciopId |
deploymentOrder |
Integer |
0..1 |
OpenModelAttribute
|
Indicates the order in which this MCIOP shall be deployed in relation to other MCIOPs. A lower value specifies an earlier deployment. |
Vnf::ObjectClasses::MciopProfile::deploymentOrder |
affinityOrAntiAffinityGroupId |
Identifier |
0..* |
OpenModelAttribute
|
References the affinity or anti-affinity group(s) the MCIOP belongs to. |
Vnf::ObjectClasses::MciopProfile::affinityOrAntiAffinityGroupId |
associatedVdu |
Identifier |
0..* |
OpenModelAttribute
|
List of VDUs which are associated to this MCIOP and which are deployed using this MCIOP. |
Vnf::ObjectClasses::MciopProfile::associatedVdu |
OsContainerDesc
The OsContainerDesc information element describes the members properties of a set of co-located container compute resources when these are realizing a VDU.
Applied stereotypes:
Reference
reference: IFA011 v4.1.1
Experimental
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
osContainerDescId |
Identifier |
1 |
OpenModelAttribute
|
Unique identifier of this OsContainerDesc in the VNFD. |
Vnf::ObjectClasses::OsContainerDesc::osContainerDescId |
requestedCpuResources |
Integer |
1 |
OpenModelAttribute
|
Number of CPU resources requested for the container (e.g. in milli-CPU-s) |
Vnf::ObjectClasses::OsContainerDesc::requestedCpuResources |
requestedMemoryResources |
Number |
1 |
OpenModelAttribute
|
Amount of memory resources requested for the container (e.g. in MB). |
Vnf::ObjectClasses::OsContainerDesc::requestedMemoryResources |
requestedEphemeralStorageResources |
Number |
1 |
OpenModelAttribute
|
Size of ephemeral storage resources requested for the container (e.g. in GB). |
Vnf::ObjectClasses::OsContainerDesc::requestedEphemeralStorageResources |
extendedResourceRequests |
KeyValuePair |
1 |
OpenModelAttribute
|
An array of key-value pairs of extended resources required by the container. |
Vnf::ObjectClasses::OsContainerDesc::extendedResourceRequests |
cpuResourceLimit |
Integer |
1 |
OpenModelAttribute
|
Number of CPU resources the container can maximally use (e.g. in milli-CPU). |
Vnf::ObjectClasses::OsContainerDesc::cpuResourceLimit |
memoryResourceLimit |
Number |
1 |
OpenModelAttribute
|
Amount of memory resources the container can maximum use (e.g. in MB). |
Vnf::ObjectClasses::OsContainerDesc::memoryResourceLimit |
ephemeralStorageResourceLimit |
Number |
1 |
OpenModelAttribute
|
Size of ephemeral storage resources the container can maximum use (e.g. in GB). |
Vnf::ObjectClasses::OsContainerDesc::ephemeralStorageResourceLimit |
swimageDesc |
SwImageDesc |
1 |
OpenModelAttribute
|
Describes the software image realizing this OS container. |
Vnf::ObjectClasses::OsContainerDesc::swimageDesc |
bootData |
String |
1 |
OpenModelAttribute
|
Contains a string or a URL to a file contained in the VNF package used to customize a container resource at boot time. The bootData may contain variable parts that are replaced by deployment specific values before being sent. |
Vnf::ObjectClasses::OsContainerDesc::bootData |
virtualStorageDesc |
VirtualStorageDesc |
0..* |
OpenModelAttribute
|
Links to virtualStorageDesc-s of the Vdu. The storages represented by the linked VirtualStorageDesc-s are attached to the OS Container as volumes. Shall be present in case the OS container requires storage resources. |
Vnf::ObjectClasses::OsContainerDesc::virtualStorageDesc |
monitoringParameters |
MonitoringParameter |
1..* |
OpenModelAttribute
|
Specifies the virtualised resource related performance metrics on the OsContainerDesc level to be tracked by the VNFM |
Vnf::ObjectClasses::OsContainerDesc::monitoringParameters |
ScalingAspect
The ScalingAspect class describes the details of an aspect used for horizontal scaling.
Applied stereotypes:
Reference
reference: IFA011 v3.3.1
Experimental
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
id |
String |
1 |
OpenModelAttribute
Experimental |
Unique identifier of this aspect in the VNFD. |
Vnf::ObjectClasses::ScalingAspect::id |
name |
String |
1 |
OpenModelAttribute
Experimental |
Human readable name of the aspect. |
Vnf::ObjectClasses::ScalingAspect::name |
description |
String |
1 |
OpenModelAttribute
Experimental |
Human readable description of the aspect. |
Vnf::ObjectClasses::ScalingAspect::description |
SecurityGroupRule
Security group rule specifies the matching criteria for the ingress and/or egress traffic to/from the visited connection points. If an ingress traffic is accepted, the corresponding egress response shall be allowed, regardless of the security group rules on the egress direction. If an egress traffic is allowed, the corresponding ingress response shall be accepted, regardless of the security group rules on the ingress direction. The design of security group rule follows a permissive model where all security group rules applied to a CP are dealt with in an “OR” logic fashion, i.e. the traffic is allowed if it matches any security group rule applied to this CP.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 V3.3.1
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
securityGroupRuleId |
Identifier |
1 |
OpenModelAttribute
Preliminary |
Identifier of the security group rule. |
Vnf::ObjectClasses::SecurityGroupRule::securityGroupRuleId |
description |
String |
0..1 |
OpenModelAttribute
Preliminary |
Human readable description of the security group rule |
Vnf::ObjectClasses::SecurityGroupRule::description |
direction |
Direction |
0..1 |
OpenModelAttribute
Preliminary |
The direction in which the security group rule is applied. |
Vnf::ObjectClasses::SecurityGroupRule::direction |
etherType |
IpVersion |
0..1 |
OpenModelAttribute
Preliminary |
Indicates the protocol carried over the Ethernet layer. |
Vnf::ObjectClasses::SecurityGroupRule::etherType |
protocol |
String |
0..1 |
OpenModelAttribute
Preliminary |
Indicates the protocol carried over the IP layer. Permitted values: any protocol defined in the IANA protocol registry, e.g. TCP, UDP, ICMP, etc. See https://www.iana.org/assignments/protocol-numbers/protocol-numbers.xhtml Note: IFA011 defines this as an enum, but as the list is not complete, made this a string. |
Vnf::ObjectClasses::SecurityGroupRule::protocol |
portRangeMin |
Integer |
0..1 |
OpenModelAttribute
Preliminary |
Indicates minimum port number in the range that is matched by the security group rule. If a value is provided at design-time, this value may be overridden at run-time based on other deployment requirements or constraints. |
Vnf::ObjectClasses::SecurityGroupRule::portRangeMin |
portRangeMax |
Integer |
0..1 |
OpenModelAttribute
Preliminary |
Indicates maximum port number in the range that is matched by the security group rule. If a value is provided at design-time, this value may be overridden at run-time based on other deployment requirements or constraints. |
Vnf::ObjectClasses::SecurityGroupRule::portRangeMax |
SwImage
A software image
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
OpenModelClass
support: MANDATORY
SwImageDesc
The SwImageDesc information element describes requested additional capability for a particular VDU. Such a capability may be for acceleration or specific tasks. Storage not necessarily related to the compute, may be Network Attached Storage (NAS)
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
id |
Identifier |
1 |
OpenModelAttribute
Preliminary |
The identifier of this software image. |
Vnf::ObjectClasses::SwImageDesc::id |
name |
String |
1 |
OpenModelAttribute
Preliminary |
The name of this software image. |
Vnf::ObjectClasses::SwImageDesc::name |
version |
Version |
1 |
OpenModelAttribute
Preliminary |
The version of this software image. |
Vnf::ObjectClasses::SwImageDesc::version |
provider |
String |
0..1 |
OpenModelAttribute
Experimental |
The provider of this software image. If not present the provider of the software image is assumed to be same as the VNF provider. |
Vnf::ObjectClasses::SwImageDesc::provider |
containerFormat |
String |
1 |
OpenModelAttribute
Preliminary |
The container format describes the container file format in which software image is provided. |
Vnf::ObjectClasses::SwImageDesc::containerFormat |
diskFormat |
String |
1 |
OpenModelAttribute
Preliminary |
The disk format of a software image is the format of the underlying disk image. |
Vnf::ObjectClasses::SwImageDesc::diskFormat |
minRam |
Number |
0..1 |
OpenModelAttribute
Preliminary |
The minimal RAM requirement for this software image. The value of the “size” attribute of VirtualMemoryData of the Vdu referencing this SwImageDesc shall not be smaller than the value of minRam. |
Vnf::ObjectClasses::SwImageDesc::minRam |
minDisk |
Number |
1 |
OpenModelAttribute
Preliminary |
The minimal disk size requirement for this software image. The value of the “size of storage” attribute of the VirtualStorageDesc referencing this SwImageDesc shall not be smaller than the value of minDisk. |
Vnf::ObjectClasses::SwImageDesc::minDisk |
size |
Number |
1 |
OpenModelAttribute
Preliminary |
The size of the software image. |
Vnf::ObjectClasses::SwImageDesc::size |
operatingSystem |
String |
0..1 |
OpenModelAttribute
Preliminary |
Identifies the operating system used in the software image. This attribute may also identify if a 32 bit or 64 bit software image is used. |
Vnf::ObjectClasses::SwImageDesc::operatingSystem |
supportedVirtualisationEnvironment |
String |
0..* |
OpenModelAttribute
Preliminary |
Identifies the virtualisation environments (e.g. hypervisor) compatible with this software image. |
Vnf::ObjectClasses::SwImageDesc::supportedVirtualisationEnvironment |
_swImage |
SwImage |
1 |
OpenModelAttribute
Preliminary PassedByReference |
This is a reference to the actual software image. The reference can be relative to the root of the VNF Package or can be a URL |
Vnf::ObjectClasses::SwImageDesc::_swImage |
checksumdata |
ChecksumData |
1 |
OpenModelAttribute
Experimental |
Vnf::ObjectClasses::SwImageDesc::checksumdata |
Vdu
The Virtualisation Deployment Unit (VDU) is a construct supporting the description of the deployment and operational behavior of a VNFC. A VNFC instance created based on the VDU maps to a single instance of atomic deployable unit, represented by a single VM for hypervisor-based virtualisation, or represented by one or a set of OS containers for OS virtualisation . A VNFC will only be in one VNFDesc. If a vendor wants to use the VNFC in mupliple VNFDesc (their product) they can do so, but it will be ‘repeated’.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v4.1.1
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
id |
Identifier |
1 |
OpenModelAttribute
Preliminary |
Unique identifier of this Vdu in VNFD. |
Vnf::ObjectClasses::Vdu::id |
name |
String |
1 |
OpenModelAttribute
Preliminary |
Human readable name of the Vdu. |
Vnf::ObjectClasses::Vdu::name |
description |
String |
1 |
OpenModelAttribute
Preliminary |
Human readable description of the Vdu. |
Vnf::ObjectClasses::Vdu::description |
bootOrder |
KeyValuePair |
0..* |
OpenModelAttribute
Preliminary |
Boot order of valid boot devices. “key/name” indicates the the boot index “value” references a descriptor from which a valid boot device is created e.g. VirtualStorageDesc from which a VirtualStorage instance is created. NOTE: If no boot order is defined the default boot order defined in the VIM or NFVI shall be used. |
Vnf::ObjectClasses::Vdu::bootOrder |
nfviConstraint |
KeyValuePair |
0..* |
OpenModelAttribute
Preliminary |
Describes constraints on the NFVI for the VNFC instance(s) created from this Vdu. For example, aspects of a secure hosting environment for the VNFC instance that involve additional entities or processes. “key/name” includes “AvailabilityZone”, “HostAggregates”. NOTE: These are constraints other than stipulating that a VNFC instance has access to a certain resource, as a prerequisite to instantiation. The attributes virtualComputeDesc and virtualStorageDesc define the resources required for instantiation of the VNFC instance. |
Vnf::ObjectClasses::Vdu::nfviConstraint |
monitoringParameter |
MonitoringParameter |
0..* |
OpenModelAttribute
Preliminary |
Defines the virtualised resources monitoring parameters on VDU level. |
Vnf::ObjectClasses::Vdu::monitoringParameter |
injectFiles |
String |
0..* |
OpenModelAttribute
Preliminary |
Describes the information (e.g. URL) about the scripts, config drive metadata, etc. which can be used during Vdu booting process. |
Vnf::ObjectClasses::Vdu::injectFiles |
configurableProperties |
VnfcConfigurableProperties |
0..1 |
OpenModelAttribute
Experimental |
Describes the configurable properties of all VNFC instances based on this VDU. |
Vnf::ObjectClasses::Vdu::configurableProperties |
bootData |
String |
0..1 |
OpenModelAttribute
Experimental |
Contains a string or a URL to a file contained in the VNF package used to customize a virtualised compute resource at boot time. The bootData may contain variable parts that are replaced by deployment specific values before being sent to the VIM. NOTE: The parameters of each variable part shall be declared in the VnfLcmOperationsConfiguration information element as “volatile” parameters available to the bootData template during the respective VNF lifecycle management operation execution and/or in the extension attribute of the VnfInfoModifiableAttributes information element as “persistent” parameters available to the bootData template during the lifetime of the VNF instance. For VNF lifecycle management operations resulting in multiple VNFC instantiations, the VNFM supports the means to provide the appropriate parameters to appropriate VNFC instances Experimental |
Vnf::ObjectClasses::Vdu::bootData |
intCpd |
VduCpd |
1 |
OpenModelAttribute
Preliminary |
Describes network connectivity between a VNFC instance (based on this Vdu) and an internal Virtual Link (VL). |
Vnf::ObjectClasses::Vdu::intCpd |
virtualComputeDesc |
VirtualComputeDesc |
1..* |
OpenModelAttribute
Preliminary PassedByReference |
Describes CPU, Memory and acceleration requirements of the Virtualisation Container realising this Vdu. |
Vnf::ObjectClasses::Vdu::virtualComputeDesc |
osContainerdesc |
OsContainerDesc |
0..* |
OpenModelAttribute
Reference
PassedByReference Experimental |
Describes CPU, memory requirements and limits, and software images of the OS Containers realizing this Vdu corresponding to OS Containers sharing the same host and same network namespace. Each unique identifier is referenced only once within one VDU. |
Vnf::ObjectClasses::Vdu::osContainerdesc |
virtualStorageDesc |
VirtualStorageDesc |
0..* |
OpenModelAttribute
Preliminary PassedByReference |
Describes storage requirements for a VirtualStorage instance attached to the virtualisation container created from virtualComputeDesc defined for this Vdu. |
Vnf::ObjectClasses::Vdu::virtualStorageDesc |
swImageDesc |
SwImageDesc |
0..1 |
OpenModelAttribute
Preliminary PassedByReference |
Describes the software image which is directly loaded on the virtualisation container realising this Vdu. NOTE: More software images can be attached to the virtualisation container using VirtualStorage resources. |
Vnf::ObjectClasses::Vdu::swImageDesc |
VduCpd
A VduCpd information element is a type of Cpd and describes network connectivity between a VNFC instance (based on this VDU) and an internal VL.
Parent class: Cpd
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
bitrateRequirement |
Number |
0..1 |
OpenModelAttribute
Preliminary |
Bitrate requirement on this CP. |
Vnf::ObjectClasses::VduCpd ::bitrateRequirement |
vnicName |
String |
0..1 |
OpenModelAttribute
Preliminary |
Describes the name of the vNIC this CP attaches to, e.g. eth0. It will be configured during the Vdu booting process. |
Vnf::ObjectClasses::VduCpd ::vnicName |
vnicOrder |
String |
0..1 |
OpenModelAttribute
Preliminary |
Describes the order to create the vNIC within the scope of this Vdu. |
Vnf::ObjectClasses::VduCpd ::vnicOrder |
vnicType |
VnicType |
0..1 |
OpenModelAttribute
Preliminary |
Describes the type of the virtual network interface realizing the CPs instantiated from this CPD. This is used to determine which mechanism driver(s) to be used to bind the port. VALUES: ? NORMAL ? MACVTAP ? DIRECT ? BAREMETAL ? VIRTIO-FORWARDER ? DIRECT-PHYSICAL ? SMART-NIC Additional values of the attribute for VDUs realized by one or set of OS containers: ? BRIDGE ? IPVLAN ? LOOPBACK ? MACVLAN ? PTP ? VLAN ? HOST-DEVICE |
Vnf::ObjectClasses::VduCpd ::vnicType |
_virtualNetworkInterfaceRequirements |
VirtualNetworkInterfaceRequirements |
0..* |
OpenModelAttribute
Preliminary |
Specifies requirements on a virtual network interface realising the CPs instantiated from this CPD. |
Vnf::ObjectClasses::VduCpd ::_virtualNetworkInterfaceRequirements |
sriovAntiAffinityGroup |
Identifier |
0..1 |
OpenModelAttribute
Future |
Define the port anti-affinity group ID for each SR-IOV type vNIC. Multiple vNICs in the same anti-affinity group must belong to the same virtual network, and the number of vNICs in the same anti-affinity group cannot exceed two. |
Vnf::ObjectClasses::VduCpd ::sriovAntiAffinityGroup |
securityGroups |
String |
0..* |
OpenModelAttribute
Future |
VNFD needs to specify the security group name {security_groups} for each vNic. |
Vnf::ObjectClasses::VduCpd ::securityGroups |
portSecurityEnabled |
Boolean |
0..1 |
OpenModelAttribute
Future |
VNFD needs to specify whether to enable security group for the vNic. |
Vnf::ObjectClasses::VduCpd ::portSecurityEnabled |
qos |
QoS |
0..1 |
OpenModelAttribute
Future |
Describe the Qos requirements of the VduCpd. |
Vnf::ObjectClasses::VduCpd ::qos |
_intVirtualLinkDesc |
VnfVirtualLinkDesc |
0..1 |
OpenModelAttribute
PassedByReference Experimental |
Reference(s) of the Virtual Link Descriptor to which this Connection Point Descriptor(s) connects. |
Vnf::ObjectClasses::VduCpd ::_intVirtualLinkDesc |
allowedAddressData |
AddressData |
0..* |
OpenModelAttribute
Preliminary |
For specifying floating IP(s) to be shared among Cpds, which are reserved for vnfReservedCpd described in the VNFD. |
Vnf::ObjectClasses::VduCpd ::allowedAddressData |
cpdId |
Identifier |
1 |
OpenModelAttribute
Preliminary |
Identifier of this Cpd information element. |
Common::Network::NetworkObjectClasses::Cpd ::cpdId |
cpdRole |
String |
0..1 |
OpenModelAttribute
Preliminary |
Identifies the role of the port in the context of the traffic flow patterns in the VNF or parent NS. For example a VNF with a tree flow pattern within the VNF will have legal cpRoles of ROOT and LEAF. |
Common::Network::NetworkObjectClasses::Cpd ::cpdRole |
description |
String |
0..1 |
OpenModelAttribute
Preliminary |
Provides human-readable information on the purpose of the CP (e.g. CP for control plane traffic). |
Common::Network::NetworkObjectClasses::Cpd ::description |
cpProtocol |
CpProtocolData |
0..* |
OpenModelAttribute
Experimental |
Identifies the protocol layering information the CP uses for connectivity purposes and associated information. There shall be one cpProtocol for each layer protocol as indicated by the attribute layerProtocol. Editor’s note: the attribute “layerProtocol” still needs further discussion and not included in this table. |
Common::Network::NetworkObjectClasses::Cpd ::cpProtocol |
trunkMode |
Boolean |
0..1 |
OpenModelAttribute
Experimental |
Information about whether the CP instantiated from this CPD is in Trunk mode (802.1Q or other). |
Common::Network::NetworkObjectClasses::Cpd ::trunkMode |
layerProtocol |
LayerProtocol |
1..* |
OpenModelAttribute
Experimental |
Identifies which protocol the CP uses for connectivity purposes (Ethernet, MPLS, ODU2, IPV4, IPV6, Pseudo-Wire, etc.). |
Common::Network::NetworkObjectClasses::Cpd ::layerProtocol |
securityGroupRuleId |
Identifier |
0..* |
OpenModelAttribute
Experimental |
Reference of the security group rules bound to this CPD. |
Common::Network::NetworkObjectClasses::Cpd ::securityGroupRuleId |
VduLevel
The VduLevel information element indicates for a given VDU in a given level the number of instances to deploy.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
numberOfInstances |
Integer |
1 |
OpenModelAttribute
Preliminary |
Number of instances of VNFC based on this VDU to deploy for an instantiation level or for a scaling delta. |
Vnf::ObjectClasses::VduLevel::numberOfInstances |
_vduId |
Vdu |
1 |
OpenModelAttribute
PassedByReference Experimental |
Uniquely identifies a VDU. |
Vnf::ObjectClasses::VduLevel::_vduId |
VduProfile
The VduProfile describes additional instantiation data for a given VDU used in a DF.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
minNumberOfInstances |
Integer |
1 |
OpenModelAttribute
Preliminary |
Minimum number of instances of the VNFC based on this VDU that is permitted to exist for this flavour. Shall be zero or greater. |
Vnf::ObjectClasses::VduProfile::minNumberOfInstances |
maxNumberOfInstances |
Integer |
1 |
OpenModelAttribute
Preliminary |
Maximum number of instances of the VNFC based on this VDU that is permitted to exist for this flavour. Shall be zero or greater. |
Vnf::ObjectClasses::VduProfile::maxNumberOfInstances |
localAffinityOrAntiAffinityRule |
LocalAffinityOrAntiAffinityRule |
0..* |
OpenModelAttribute
Preliminary |
Specifies affinity or anti-affinity rules applicable between the virtualization containers (e.g. virtual machines) to be created based on this VDU. When the cardinality is greater than 1, both affinity rule(s) and anti-affinity rule(s) with different scopes (e.g. “Affinity with the scope resource zone and anti-affinity with the scope NFVI node”) are applicable to the virtualization containers (e.g. virtual machines) to be created based on this VDU. When the cardinality is greater than 1, both affinity rule(s) and anti-affinity rule(s) with different scopes (e.g. “Affinity with the scope resource zone and anti-affinity with the scope NFVI node”) are applicable to the virtualization containers (e.g. virtual machines) to be created based on this VDU. |
Vnf::ObjectClasses::VduProfile::localAffinityOrAntiAffinityRule |
affinityOrAntiAffinityGroupId |
Identifier |
0..* |
OpenModelAttribute
Preliminary |
Identifier(s) of the affinity or anti-affinity group(s) the VDU belongs to. NOTE: Each identifier references an affinity or anti-affinity group which expresses affinity or anti-affinity relationships between the virtualisation container(s) (e.g. virtual machine(s)) to be created using this VDU and the virtualisation container(s) (e.g. virtual machine(s)) to be created using other VDU(s) in the same group. |
Vnf::ObjectClasses::VduProfile::affinityOrAntiAffinityGroupId |
watchdog |
String |
0..1 |
OpenModelAttribute
Preliminary |
Watchdog action to be triggered by the VIM for the VNF in case the heart beat fails, e.g. reset or hard shutdown, etc. |
Vnf::ObjectClasses::VduProfile::watchdog |
vmBootUpTimeOut |
Integer |
0..1 |
OpenModelAttribute
Preliminary |
Timeout value for the VNFM to wait before the successful booting up of the VDU. |
Vnf::ObjectClasses::VduProfile::vmBootUpTimeOut |
securityGroups |
String |
0..* |
OpenModelAttribute
Future |
VNFD needs to specify the security group name {security_groups} for each VDU. |
Vnf::ObjectClasses::VduProfile::securityGroups |
flavorExtraSpecs |
KeyValuePair |
0..* |
OpenModelAttribute
Future |
Additional expansion requirements for Infrastructure layer, e.g. HA property (Host Aggregate ). |
Vnf::ObjectClasses::VduProfile::flavorExtraSpecs |
_vduId |
Vdu |
1 |
OpenModelAttribute
Preliminary PassedByReference |
Vnf::ObjectClasses::VduProfile::_vduId |
VirtualComputeDesc
The VirtualComputeDesc information element supports the specification of requirements related to virtual compute resources.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
virtualComputeDescId |
Identifier |
1 |
OpenModelAttribute
Preliminary |
Unique identifier of this VirtualComputeDesc in the VNFD |
Vnf::ObjectClasses::VirtualComputeDesc ::virtualComputeDescId |
requestAdditionalCapabilities |
RequestedAdditionalCapabilityData |
0..* |
OpenModelAttribute
Deprecated |
Specifies requirements for additional capabilities. These may be for a range of purposes. One example is acceleration related capabilities. |
Vnf::ObjectClasses::VirtualComputeDesc ::requestAdditionalCapabilities |
computeRequirements |
KeyValuePair |
0..* |
OpenModelAttribute
Preliminary |
Specifies compute requirements. |
Vnf::ObjectClasses::VirtualComputeDesc ::computeRequirements |
virtualMemory |
VirtualMemoryData |
1 |
OpenModelAttribute
Preliminary |
The virtual memory of the virtualised compute. |
Vnf::ObjectClasses::VirtualComputeDesc ::virtualMemory |
virtualCpu |
VirtualCpuData |
1 |
OpenModelAttribute
Preliminary |
The virtual CPU(s) of the virtualised compute. |
Vnf::ObjectClasses::VirtualComputeDesc ::virtualCpu |
_logicalNodeRequirements |
LogicalNodeRequirements |
0..* |
OpenModelAttribute
Experimental |
The associated logical node requirements. |
Vnf::ObjectClasses::VirtualComputeDesc ::_logicalNodeRequirements |
virtualDisk |
BlockStorageData |
0..* |
OpenModelAttribute
Experimental |
The local or ephemeral disk(s) of the virtualised compute. |
Vnf::ObjectClasses::VirtualComputeDesc ::virtualDisk |
VirtualCpd
A VirtualCpd is a type of Cpd and describes a requirement to create a virtual connection point allowing the access to a number of VNFC instances (based on their respective VDUs).
Parent class: Cpd
Applied stereotypes:
Reference
reference: IFA011 v4.1.1
Experimental
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
vdu |
Identifier |
1..* |
OpenModelAttribute
|
References the VDU(s) which implement this service. |
Vnf::ObjectClasses::VirtualCpd::vdu |
additionalServiceData |
AdditionalServiceData |
0..* |
OpenModelAttribute
|
Additional service identification data of the VirtualCp exposed to NFV-MANO. |
Vnf::ObjectClasses::VirtualCpd::additionalServiceData |
cpdId |
Identifier |
1 |
OpenModelAttribute
Preliminary |
Identifier of this Cpd information element. |
Common::Network::NetworkObjectClasses::Cpd ::cpdId |
cpdRole |
String |
0..1 |
OpenModelAttribute
Preliminary |
Identifies the role of the port in the context of the traffic flow patterns in the VNF or parent NS. For example a VNF with a tree flow pattern within the VNF will have legal cpRoles of ROOT and LEAF. |
Common::Network::NetworkObjectClasses::Cpd ::cpdRole |
description |
String |
0..1 |
OpenModelAttribute
Preliminary |
Provides human-readable information on the purpose of the CP (e.g. CP for control plane traffic). |
Common::Network::NetworkObjectClasses::Cpd ::description |
cpProtocol |
CpProtocolData |
0..* |
OpenModelAttribute
Experimental |
Identifies the protocol layering information the CP uses for connectivity purposes and associated information. There shall be one cpProtocol for each layer protocol as indicated by the attribute layerProtocol. Editor’s note: the attribute “layerProtocol” still needs further discussion and not included in this table. |
Common::Network::NetworkObjectClasses::Cpd ::cpProtocol |
trunkMode |
Boolean |
0..1 |
OpenModelAttribute
Experimental |
Information about whether the CP instantiated from this CPD is in Trunk mode (802.1Q or other). |
Common::Network::NetworkObjectClasses::Cpd ::trunkMode |
layerProtocol |
LayerProtocol |
1..* |
OpenModelAttribute
Experimental |
Identifies which protocol the CP uses for connectivity purposes (Ethernet, MPLS, ODU2, IPV4, IPV6, Pseudo-Wire, etc.). |
Common::Network::NetworkObjectClasses::Cpd ::layerProtocol |
securityGroupRuleId |
Identifier |
0..* |
OpenModelAttribute
Experimental |
Reference of the security group rules bound to this CPD. |
Common::Network::NetworkObjectClasses::Cpd ::securityGroupRuleId |
VirtualLinkDescFlavour
The VirtualLinkDescFlavour describes additional instantiation data for a given internal VL used in a DF.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
qos |
VnfQoS |
0..1 |
OpenModelAttribute
Preliminary |
QoS of the VL. |
Vnf::ObjectClasses::VirtualLinkDescFlavour::qos |
flavourId |
Identifier |
1 |
OpenModelAttribute
Preliminary |
Identifies a flavour within a VnfVirtualLinkDesc. |
Vnf::ObjectClasses::VirtualLinkDescFlavour::flavourId |
VirtualLinkProfile
The VirtualLinkProfile describes additional instantiation data for a given VL used in a DF.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
virtualLinkProfileId |
Identifier |
1 |
OpenModelAttribute
Experimental |
Uniquely identifies this VirtualLinkProfile class |
Vnf::ObjectClasses::VirtualLinkProfile::virtualLinkProfileId |
localAffinityOrAntiAffinityRule |
LocalAffinityOrAntiAffinityRule |
0..* |
OpenModelAttribute
Preliminary |
Specifies affinity or anti-affinity rules applicable between the VLs based on this VnfVirtualLinkDesc. When the cardinality is greater than 1, both affinity rule(s) and anti-affinity rule(s) with different scopes are applicable to the VLs based on this VnfVirtualLinkDesc. |
Vnf::ObjectClasses::VirtualLinkProfile::localAffinityOrAntiAffinityRule |
maxBitRateRequirements |
LinkBitrateRequirements |
1 |
OpenModelAttribute
Preliminary |
Specifies the minimum bitrate requirements for a VL instantiated according to this profile. |
Vnf::ObjectClasses::VirtualLinkProfile::maxBitRateRequirements |
minBitRateRequirements |
LinkBitrateRequirements |
1 |
OpenModelAttribute
Preliminary |
Specifies the minimum bitrate requirements for a VL instantiated according to this profile. |
Vnf::ObjectClasses::VirtualLinkProfile::minBitRateRequirements |
_flavourId |
VirtualLinkDescFlavour |
1 |
OpenModelAttribute
Preliminary |
Identifies a flavour within the VnfVirtualLinkDesc. |
Vnf::ObjectClasses::VirtualLinkProfile::_flavourId |
_affinityOrAntiAffinityGroupId |
AffinityOrAntiAffinityGroup |
0..* |
OpenModelAttribute
PassedByReference Experimental |
Identifies an affinity or anti-affinity group the VLs instantiated according to the VlProfile belong to. NOTE : Each identifier references an affinity or anti-affinity group which expresses affinity or anti-affinity relationship between the VL(s) using this VirtualLinkProfile and the VL(s) using other VirtualLinkProfile(s) in the same group. |
Vnf::ObjectClasses::VirtualLinkProfile::_affinityOrAntiAffinityGroupId |
_vnfVirtualLinkDescId |
VnfVirtualLinkDesc |
1 |
OpenModelAttribute
Preliminary PassedByReference |
Uniquely references a VLD. |
Vnf::ObjectClasses::VirtualLinkProfile::_vnfVirtualLinkDescId |
virtualLinkProtocolData |
VirtualLinkProtocolData |
0..* |
OpenModelAttribute
Preliminary |
Specifies the protocol data for a VL instantiated according to this profile. Cardinality 0 is used when no protocol data needs to be specified. |
Vnf::ObjectClasses::VirtualLinkProfile::virtualLinkProtocolData |
VirtualNetworkInterfaceRequirements
This class specifies requirements on a virtual network interface.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
name |
String |
0..1 |
OpenModelAttribute
Preliminary |
Provides a human readable name for the requirement. |
Vnf::ObjectClasses::VirtualNetworkInterfaceRequirements::name |
description |
String |
0..1 |
OpenModelAttribute
Preliminary |
Provides a human readable description of the requirement. |
Vnf::ObjectClasses::VirtualNetworkInterfaceRequirements::description |
supportMandatory |
Boolean |
1 |
OpenModelAttribute
Preliminary Deprecated |
Indicates whether fulfilling the constraint is mandatory (TRUE) for successful operation or desirable (FALSE). |
Vnf::ObjectClasses::VirtualNetworkInterfaceRequirements::supportMandatory |
networkInterfaceRequirements |
KeyValuePair |
0..* |
OpenModelAttribute
Preliminary |
The network interface requirements. An element from an array of key-value pairs that articulate the network interface deployment requirements |
Vnf::ObjectClasses::VirtualNetworkInterfaceRequirements::networkInterfaceRequirements |
_nicIoRequirements |
LogicalNodeRequirements |
0..1 |
OpenModelAttribute
PassedByReference |
This references (couples) the CPD with any logical node I/O requirements (for network devices) that may have been created. Linking these attributes is necessary so that so that I/O requirements that need to be articulated at the logical node level can be associated with the network interface requirements associated with the CPD. |
Vnf::ObjectClasses::VirtualNetworkInterfaceRequirements::_nicIoRequirements |
VirtualStorageDesc
The VirtualStorageDesc information element supports the specifications of requirements related to persistent virtual storage resources. Ephemeral virtual storage is specified in VirtualComputeDesc information element.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v4.1.1
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
id |
Identifier |
1 |
OpenModelAttribute
Preliminary |
Unique identifier of this VirtualStorageDesc in the VNFD. |
Vnf::ObjectClasses::VirtualStorageDesc::id |
typeOfStorage |
String |
1 |
OpenModelAttribute
Preliminary |
Type of virtualised storage resource (BLOCK, OBJECT, FILE). |
Vnf::ObjectClasses::VirtualStorageDesc::typeOfStorage |
sizeOfStorage |
Number |
1 |
OpenModelAttribute
Preliminary |
Size of virtualised storage resource (e.g. size of volume, in GB). |
Vnf::ObjectClasses::VirtualStorageDesc::sizeOfStorage |
blockStorageData |
BlockStorageData |
0..1 |
OpenModelAttribute
Preliminary |
Specifies the details of block storage. It shall be present when the “typeOfStorage” attribute is set to “BLOCK”. It shall be absent otherwise. |
Vnf::ObjectClasses::VirtualStorageDesc::blockStorageData |
objectStorageData |
ObjectStorageData |
0..1 |
OpenModelAttribute
Preliminary |
Specifies the details of object storage. It shall be present when the “typeOfStorage” attribute is set to “OBJECT”. It shall be absent |
Vnf::ObjectClasses::VirtualStorageDesc::objectStorageData |
fileStorageData |
FileStorageData |
0..1 |
OpenModelAttribute
Preliminary |
Specifies the details of file storage. It shall be present when the “typeOfStorage” attribute is set to “FILE”. It shall be absent otherwise. |
Vnf::ObjectClasses::VirtualStorageDesc::fileStorageData |
multiAttach |
Boolean |
0..1 |
OpenModelAttribute
Future |
Indicating whether a vDisk is a shared volume in VNFD. |
Vnf::ObjectClasses::VirtualStorageDesc::multiAttach |
storageQos |
StorageQos |
0..1 |
OpenModelAttribute
Future |
Describe storage Qos requirements. |
Vnf::ObjectClasses::VirtualStorageDesc::storageQos |
volumeType |
VolumeType |
0..1 |
OpenModelAttribute
Future |
Describe volume type. |
Vnf::ObjectClasses::VirtualStorageDesc::volumeType |
volumeTemplate |
Boolean |
0..1 |
OpenModelAttribute
|
Indicates whether the virtual storage descriptor shall be used as template, i.e. if the virtual storage resource shall be instantiated per VNFC instance. If the value is true (default), a persistent virtual storage resource shall be instantiated for each VNFC instance that is based on a VDU referring to this virtual storage descriptor. If the value is false, a single persistent virtual storage resource shall be instantiated with a lifetime independent of the lifetime of individual VNFC instances based on a VDU referring to this virtual storage descriptor. |
Vnf::ObjectClasses::VirtualStorageDesc::volumeTemplate |
VnfDf
The VnfDf describes a specific deployment version of a VNF.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v4.1.1
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
flavorId |
Identifier |
1 |
OpenModelAttribute
Preliminary |
Identifier of this DF within the VNFD. |
Vnf::ObjectClasses::VnfDf ::flavorId |
description |
String |
1 |
OpenModelAttribute
Preliminary |
Human readable description of the DF. |
Vnf::ObjectClasses::VnfDf ::description |
defaultInstantiationLevel |
Identifier |
0..1 |
OpenModelAttribute
Experimental |
This attribute references the “instantiationLevel” entry which defines the default instantiation level for this DF. It shall be present if there are multiple “instantiationLevel” entries. |
Vnf::ObjectClasses::VnfDf ::defaultInstantiationLevel |
monitoringParameter |
MonitoringParameter |
0..* |
OpenModelAttribute
Experimental |
Specifies the virtualised resource related performance metrics to be tracked by the VNFM. |
Vnf::ObjectClasses::VnfDf ::monitoringParameter |
_virtuaLlinkProfile |
VirtualLinkProfile |
0..* |
OpenModelAttribute
Preliminary |
Defines the internal VLD along with additional data which is used in this DF. NOTE 1: This allows for different VNF internal topologies between DFs. NOTE 2: virtualLinkProfile needs to be provided for all VLs that the CPs of the VDUs in the VDU profiles connect to. |
Vnf::ObjectClasses::VnfDf ::_virtuaLlinkProfile |
_instantiationLevel |
InstantiationLevel |
1..* |
OpenModelAttribute
Preliminary |
Describes the various levels of resources that can be used to instantiate the VNF using this flavour. Examples: Small, Medium, Large. If there is only one “instantiationLevel” entry, it shall be treated as the default instantiation level for this DF. |
Vnf::ObjectClasses::VnfDf ::_instantiationLevel |
_affinityOrAntiAffinityGroup |
AffinityOrAntiAffinityGroup |
0..* |
OpenModelAttribute
Preliminary |
Specifies affinity or anti-affinity relationship applicable between the virtualisation containers (e.g. virtual machines) to be created using different VDUs or internal VLs to be created using different VnfVirtualLinkDesc(s) in the same affinity or anti-affinity group. NOTE: In the present specification, including either VDU(s) or VnfVirtualLinkDesc(s) into the same affinity or anti-affinity group is supported. Extension to support including both VDU(s) and VnfVirtualLinkDesc(s) into the same affinity or anti-affinity group is left for future specification. |
Vnf::ObjectClasses::VnfDf ::_affinityOrAntiAffinityGroup |
_scalingAspect |
ScalingAspect |
0..* |
OpenModelAttribute
Preliminary |
The scaling aspects supported by this DF of the VNF. scalingAspect shall be present if the VNF supports scaling. |
Vnf::ObjectClasses::VnfDf ::_scalingAspect |
_vduProfile |
VduProfile |
1..* |
OpenModelAttribute
Preliminary |
Describes additional instantiation data for the VDUs used in this flavor. |
Vnf::ObjectClasses::VnfDf ::_vduProfile |
vnfIndicator |
VnfIndicator |
0..* |
OpenModelAttribute
Experimental |
Declares the VNF indicators that are supported by this VNF (specific to this DF). |
Vnf::ObjectClasses::VnfDf ::vnfIndicator |
supportedVnfInterface |
VnfInterfaceDetails |
0..* |
OpenModelAttribute
Experimental |
Indicates which interfaces the VNF produces and provides additional details on how to access the interface endpoints. |
Vnf::ObjectClasses::VnfDf ::supportedVnfInterface |
mciopProfile |
MciopProfile |
0..* |
OpenModelAttribute
Reference
Experimental |
Describes additional instantiation data for the MCIOPs used in this deployment flavour. This attribute shall be present if the DF references (via the vduProfile) containerized workloads based on a MCIOP. |
Vnf::ObjectClasses::VnfDf ::mciopProfile |
VnfExtCp
Describes an external CP exposed by a VNF.
Parent class: Cp
Applied stereotypes:
OpenModelClass
support: MANDATORY
VnfExtCpd
A VnfExtCpd is a type of Cpd and describes an external interface, a.k.a external CP, exposed by this VNF enabling connection with a VL. When the VnfExtCpd is mapped to a VduCpd, the values for the attributes type, subType and description shall be identical for both elements.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v4.1.1
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
_intVirtualLinkDesc |
VnfVirtualLinkDesc |
0..1 |
OpenModelAttribute
PassedByReference Experimental |
References the internal Virtual Link Descriptor (VLD) to which CPs instantiated from this external CP Descriptor (CPD) connect. One and only one of the following attributes shall be present: intVirtualLinkDesc or intCpd or vipCpd. |
Vnf::ObjectClasses::VnfExtCpd ::_intVirtualLinkDesc |
_intCpd |
VduCpd |
0..1 |
OpenModelAttribute
Preliminary PassedByReference |
References the internal VDU CPD which is used to instantiate internal CPs. These internal CPs are, in turn, exposed as external CPs defined by this external CPD. One and only one of the following attributes shall be present: intVirtualLinkDesc or intCpd or vipCpd. |
Vnf::ObjectClasses::VnfExtCpd ::_intCpd |
vipCpd |
Identifier |
0..1 |
OpenModelAttribute
PassedByReference Experimental |
References the VIP CPD which is used to instantiate CPs to hold virtual IP addresses. These CPs are, in turn, exposed as external CPs defined by this external CPD. One and only one of the following attributes shall be present: intVirtualLinkDesc or intCpd or vipCpd . |
Vnf::ObjectClasses::VnfExtCpd ::vipCpd |
virtualNetworkInterfaceRequirements |
VirtualNetworkInterfaceRequirements |
0..* |
OpenModelAttribute
Preliminary |
Specifies requirements on a virtual network interface realising the CPs instantiated from this CPD. NOTE: In case of referencing an intCpd via its identifier, the virtualNetworkInterfaceRequirements attribute of the referenced intCpd applies. |
Vnf::ObjectClasses::VnfExtCpd ::virtualNetworkInterfaceRequirements |
virtualCpd |
Identifier |
0..1 |
OpenModelAttribute
Reference
Experimental |
References the Virtual CPD which is used to describe a virtual connection point allowing to access a set of VNFC instances (based on their respective VDUs). |
Vnf::ObjectClasses::VnfExtCpd ::virtualCpd |
VnfIndicator
The VnfIndicator information element defines the indicator the VNF supports.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
id |
Identifier |
1 |
OpenModelAttribute
Preliminary |
Unique identifier. |
Vnf::ObjectClasses::VnfIndicator::id |
name |
String |
0..1 |
OpenModelAttribute
Preliminary |
The human readable name of the VnfIndicator. |
Vnf::ObjectClasses::VnfIndicator::name |
indicatorValue |
String |
1..* |
OpenModelAttribute
Preliminary |
Defines the allowed values or value ranges of this indicator. |
Vnf::ObjectClasses::VnfIndicator::indicatorValue |
source |
VnfSource |
1 |
OpenModelAttribute
Preliminary |
Describe the source of the indicator. This tells the consumer where to send the subscription request. |
Vnf::ObjectClasses::VnfIndicator::source |
VnfInterfaceDetails
The VnfInterfaceDetails information element specifies the details of an interface produced by the VNF on the Ve-Vnfm reference point.
Applied stereotypes:
Reference
reference: IFA011 v3.3.1
Experimental
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
cpdid |
Identifier |
1..* |
OpenModelAttribute
Experimental |
References one or more CPDs from which to instantiate external CPs through which interface endpoints on the VNF side can be reached by the VNFM. |
Vnf::ObjectClasses::VnfInterfaceDetails::cpdid |
interfacedetails |
invalid |
0..1 |
OpenModelAttribute
Experimental |
Provide additional data to access the interface endpoint (e.g. API URI prefix). |
Vnf::ObjectClasses::VnfInterfaceDetails::interfacedetails |
VnfLcmOperationCoordination
This information element defines the sets of information needed for a coordination action in a VNF lifecycle management operation.
Applied stereotypes:
Reference
reference: IFA011 v3.3.1
Experimental
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
vnfLcmOpCoordinationId |
Identifier |
1 |
OpenModelAttribute
|
Identifies the specific VNF LCM operation coordination action. |
Vnf::ObjectClasses::VnfLcmOperationCoordination::vnfLcmOpCoordinationId |
description |
String |
1 |
OpenModelAttribute
|
Human readable description of the coordination action. |
Vnf::ObjectClasses::VnfLcmOperationCoordination::description |
endpointType |
EndpointType |
1 |
OpenModelAttribute
|
Specifies the type of the endpoint exposing the LCM operation coordination such as other operations supporting or management systems (e.g. an EM) or the VNF instance. Allowed values: ? MGMT: coordination with other operation supporting management systems. ? VNF: coordination with the VNF instance. |
Vnf::ObjectClasses::VnfLcmOperationCoordination::endpointType |
coordinationStage |
invalid |
0..1 |
OpenModelAttribute
|
Indicates the coordination stage during the VNF LCM operation. |
Vnf::ObjectClasses::VnfLcmOperationCoordination::coordinationStage |
coordinationParams |
invalid |
0..1 |
OpenModelAttribute
|
Input information needed by the external coordinating entity. |
Vnf::ObjectClasses::VnfLcmOperationCoordination::coordinationParams |
VnfPackageChangeInfo
A VnfPackageChangeInfo information element describes the processes and rules to be used for performing the resource related tasks while assisting the “change current VNF Package” to change a VNF instance to a different VNF Package (destination package). When creating a VNF package, the VNF vendor can include VnfPackageChangeInfo information elements in the package which allow the package to act as a source package or as a destination package for a modification in relation to another package, which has been created earlier or at the same time. To populate a VnfPackageChangeInfo information element and the underlying related information elements, knowledge of both the source package and the destination package is required.
Applied stereotypes:
Reference
reference: IFA011 v3.3.1
Experimental
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
selector |
VersionSelector |
1 |
OpenModelAttribute
|
Information to identify the source and destination VNFD for the change, and the related deployment flavours. |
Vnf::ObjectClasses::VnfPackageChangeInfo::selector |
additionalParamsId |
Identifier |
0..1 |
OpenModelAttribute
|
References the ChangeCurrentVnfPackageOpConfig information element that defines the valid additional parameters for the change. |
Vnf::ObjectClasses::VnfPackageChangeInfo::additionalParamsId |
modificationQualifier |
ModificationQualifier |
1 |
OpenModelAttribute
|
Specifies the type of modification resulting from transitioning from srcVnfdId to dstVnfdId. The possible values are: UP - indicating that the destination VNF version is newer than the source version, DOWN - indicating that the destination VNF version is older than the source version. |
Vnf::ObjectClasses::VnfPackageChangeInfo::modificationQualifier |
additionalModificationDescription |
String |
0..* |
OpenModelAttribute
|
A VNF provider may define additional information to qualify further the change between the two versions, such as “VNF upgrade”, “VNF update”, “VNF downgrade”, etc. |
Vnf::ObjectClasses::VnfPackageChangeInfo::additionalModificationDescription |
componentMapping |
ComponentMapping |
0..* |
OpenModelAttribute
|
Mapping information related to identifiers of components in source VNFD and destination VNFD that concern to the change process. |
Vnf::ObjectClasses::VnfPackageChangeInfo::componentMapping |
lcmScriptId |
Identifier |
1 |
OpenModelAttribute
|
References a lifecycle management script that is executed as part of this “change current VNF Package” process. |
Vnf::ObjectClasses::VnfPackageChangeInfo::lcmScriptId |
coordinationId |
Identifier |
0..* |
OpenModelAttribute
|
References applicable VNF LCM operation coordination actions. |
Vnf::ObjectClasses::VnfPackageChangeInfo::coordinationId |
dstFlavourId |
Identifier |
1 |
OpenModelAttribute
|
Identifies the deployment flavour in the destination VNF package for which this change applies. The flavour ID is defined in the destination VNF package. |
Vnf::ObjectClasses::VnfPackageChangeInfo::dstFlavourId |
VnfVirtualLink
Parent class: VirtualLink
Applied stereotypes:
OpenModelClass
support: MANDATORY
VnfVirtualLinkDesc
Represents the type of network connectivity mandated by the VNF vendor between two or more Connection Points which includes at least one Internal Connection Point.
Parent class: VirtualLinkDesc
Applied stereotypes:
Reference
reference: IFA011 v3.3.1
Experimental
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
monitoringParameter |
MonitoringParameter |
0..* |
OpenModelAttribute
Experimental |
Specifies the virtualised resource related performance metrics on VLD level to be tracked by the VNFM. |
Vnf::ObjectClasses::VnfVirtualLinkDesc::monitoringParameter |
_virtualLinkDescFlavour |
VirtualLinkDescFlavour |
1..* |
OpenModelAttribute
Preliminary |
Describes a specific flavour of the VL with specific bitrate requirements. |
Vnf::ObjectClasses::VnfVirtualLinkDesc::_virtualLinkDescFlavour |
virtualLinkDescId |
Identifier |
1 |
OpenModelAttribute
Preliminary |
Uniquely identifies a VLD in the parent descriptor. For VnfVirtualLinkDesc, the parent descriptor is the VNFD. For NsVirtualLinkDesc, the parent descriptor is the NSD. Note: the description of this class are different in ETSI GS NFV IFA 011 and ETSI GS NFV IFA 014. The present definition merges the 2 definitions. |
Common::Network::NetworkObjectClasses::VirtualLinkDesc::virtualLinkDescId |
connectivityType |
ConnectivityType |
1 |
OpenModelAttribute
Preliminary |
Specifies the protocol exposed by a VL and the flow pattern supported by the VL. |
Common::Network::NetworkObjectClasses::VirtualLinkDesc::connectivityType |
description |
String |
0..1 |
OpenModelAttribute
Preliminary |
Provides human-readable information on the purpose of the VL (e.g. control plane traffic). |
Common::Network::NetworkObjectClasses::VirtualLinkDesc::description |
validFor |
TimePeriod |
0..1 |
OpenModelAttribute
Preliminary |
The period during which the design entity is valid. |
Common::Root::RootObjectClasses::DesignEntity::validFor |
status |
String |
1 |
OpenModelAttribute
Preliminary |
The condition of the specification, such s active, inactive, or planned. |
Common::Root::RootObjectClasses::DesignEntity::status |
name |
String |
1 |
OpenModelAttribute
Preliminary |
Represents a user-friendly identifier of an object. It is a (possibly ambiguous) name by which the object is commonly known in some limited scope (such as an organization) and conforms to the naming conventions of the country or culture with which it is associated. It is NOT used as a naming attribute (i.e., to uniquely identify an instance of the object). |
Common::Root::RootObjectClasses::DesignEntity::name |
description |
String |
1 |
OpenModelAttribute
Preliminary |
Defines a textual free-form description of the object. |
Common::Root::RootObjectClasses::DesignEntity::description |
id |
Identifier |
1 |
OpenModelAttribute
Preliminary |
Identifier of this information element. This attribute shall be globally unique. Unambiguously distinguishes different object instances. It is the naming attribute of the object. |
Common::Root::RootObjectClasses::RootEntity::id |
VnfcCp
Parent class: Cp
Applied stereotypes:
Experimental
OpenModelClass
support: MANDATORY
Vnfd
A Vnfd, or VNF Descriptor, is template which describes a VNF in terms of deployment and operational behaviour requirements. It also contains connectivity, interface and virtualised resource requirements.
Parent class: NetworkFunctionDesc
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v4.1.1
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
vnfdId |
Identifier |
1 |
OpenModelAttribute
Preliminary |
Identifier of this VNFD information element. This attribute shall be globally unique. NOTE: The VNFD Identifier shall be used as the unique identifier of the VNF Package that contains this VNFD. Any modification of the content of the VNFD or the VNF Package shall result in a new VNFD Identifier. |
Vnf::ObjectClasses::Vnfd::vnfdId |
vnfProvider |
String |
1 |
OpenModelAttribute
Preliminary |
Provider of the VNF and of the VNFD. |
Vnf::ObjectClasses::Vnfd::vnfProvider |
vnfProductName |
String |
1 |
OpenModelAttribute
Preliminary |
Name to identify the VNF Product. Invariant for the VNF Product lifetime. |
Vnf::ObjectClasses::Vnfd::vnfProductName |
vnfSoftwareVersion |
Version |
1 |
OpenModelAttribute
Preliminary |
Software version of the VNF. This is changed when there is any change to the software that is included in the VNF Package. |
Vnf::ObjectClasses::Vnfd::vnfSoftwareVersion |
vnfdVersion |
Version |
1 |
OpenModelAttribute
Preliminary |
Identifies the version of the VNFD. |
Vnf::ObjectClasses::Vnfd::vnfdVersion |
vnfProductInfoName |
String |
0..1 |
OpenModelAttribute
Preliminary |
Human readable name for the VNF Product. Can change during the VNF Product lifetime. |
Vnf::ObjectClasses::Vnfd::vnfProductInfoName |
vnfProductInfoDescription |
String |
0..1 |
OpenModelAttribute
Preliminary |
Human readable description of the VNF Product. Can change during the VNF Product lifetime. |
Vnf::ObjectClasses::Vnfd::vnfProductInfoDescription |
vnfmInfo |
String |
0..* |
OpenModelAttribute
Preliminary |
Identifies VNFM(s) compatible with the VNF described in this version of the VNFD. Use the name of micro-service of the vnfm drive. For vendor specific VNFM, the value composes of “vendorname” and “vnfmdriver”, e.g. “mycompanyvnfmdriver”; for generic VNFM, the value is “gvnfmdriver”. |
Vnf::ObjectClasses::Vnfd::vnfmInfo |
localizationLanguage |
String |
0..* |
OpenModelAttribute
Preliminary |
Information about localization languages of the VNF (includes e.g. strings in the VNFD). Refer to ISO936 https://www.iso.org/iso-639-language-codes.html NOTE: This allows to provide one or more localization languages to support selecting a specific localization language at VNF instantiation time. |
Vnf::ObjectClasses::Vnfd::localizationLanguage |
defaultLocalizationLanguage |
String |
0..1 |
OpenModelAttribute
Preliminary |
Information about localization languages of the VNF (includes e.g. strings in the VNFD). Refer to ISO936 https://www.iso.org/iso-639-language-codes.html NOTE: This allows to provide one or more localization languages to support selecting a specific localization language at VNF instantiation time. |
Vnf::ObjectClasses::Vnfd::defaultLocalizationLanguage |
vdu |
Vdu |
1..* |
OpenModelAttribute
Preliminary |
Virtualisation Deployment Unit. |
Vnf::ObjectClasses::Vnfd::vdu |
virtualComputeDesc |
VirtualComputeDesc |
0..* |
OpenModelAttribute
Preliminary |
Defines descriptors of virtual compute resources to be used by the VNF when each of the VNFC instances of the VNF is intended to be deployed in a single VM. |
Vnf::ObjectClasses::Vnfd::virtualComputeDesc |
virtualStorageDesc |
VirtualStorageDesc |
0..* |
OpenModelAttribute
Preliminary |
Defines descriptors of virtual storage resources to be used by the VNF. |
Vnf::ObjectClasses::Vnfd::virtualStorageDesc |
osContainerDesc |
OsContainerDesc |
0..* |
OpenModelAttribute
Reference
Experimental |
Defines descriptors of container compute resources to be used by the VNF when the VDUs of the VNF are realized by a set of OS Containers sharing the same host and same networking namespace. |
Vnf::ObjectClasses::Vnfd::osContainerDesc |
swImageDesc |
SwImageDesc |
0..* |
OpenModelAttribute
Preliminary |
Defines descriptors of software images to be used by the VNF. NOTE: This shall be used to describe both the software image loaded on the virtualization container used to realize a VDU and the software images to be stored on VirtualStorage resources (e.g., volumes) attached to a virtualization container. |
Vnf::ObjectClasses::Vnfd::swImageDesc |
intVirtualLinkDesc |
VnfVirtualLinkDesc |
0..* |
OpenModelAttribute
Preliminary |
Represents the type of network connectivity mandated by the VNF provider between two or more CPs which includes at least one internal CP. |
Vnf::ObjectClasses::Vnfd::intVirtualLinkDesc |
securityGroupRule |
SecurityGroupRule |
0..* |
OpenModelAttribute
Experimental |
Defines security group rules to be used by the VNF. |
Vnf::ObjectClasses::Vnfd::securityGroupRule |
vnfExtCpd |
VnfExtCpd |
1..* |
OpenModelAttribute
Preliminary |
Describes external interface(s) exposed by this VNF enabling connection with a VL. |
Vnf::ObjectClasses::Vnfd::vnfExtCpd |
vipcpd |
vipCpd |
0..* |
OpenModelAttribute
Experimental |
Describes virtual IP addresses to be shared among instances of connection points. |
Vnf::ObjectClasses::Vnfd::vipcpd |
virtualCpd |
VirtualCpd |
0..* |
OpenModelAttribute
Reference
Experimental |
Describes a virtual connection point allowing to access a set of VNFC instances (based on their respective VDUs). |
Vnf::ObjectClasses::Vnfd::virtualCpd |
deploymentFlavour |
VnfDf |
1..* |
OpenModelAttribute
Preliminary |
Describes specific DF(s) of a VNF with specific requirements for capacity and performance. |
Vnf::ObjectClasses::Vnfd::deploymentFlavour |
configurableProperties |
VnfConfigurableProperties |
0..1 |
OpenModelAttribute
Preliminary |
Describes the configurable properties of the VNF (e.g. related to auto scaling and auto healing). |
Vnf::ObjectClasses::Vnfd::configurableProperties |
modifiableAttributes |
VnfInfoModifiableAttributes |
0..1 |
OpenModelAttribute
Preliminary |
Defines the VNF-specific extension and metadata attributes of the VnfInfo that are writeable via the ModifyVnfInfo operation. |
Vnf::ObjectClasses::Vnfd::modifiableAttributes |
lifecycleManagementScript |
VnfLifecycleManagementScript |
0..* |
OpenModelAttribute
Preliminary |
Includes a list of events and corresponding management scripts performed for the VNF. |
Vnf::ObjectClasses::Vnfd::lifecycleManagementScript |
vnfIndicator |
VnfIndicator |
0..* |
OpenModelAttribute
Preliminary |
Declares the VNF indicators that are supported by this VNF. |
Vnf::ObjectClasses::Vnfd::vnfIndicator |
autoScale |
Rule |
0..* |
OpenModelAttribute
Reference
Experimental |
Rule that determines when a scaling action needs to be triggered on a VNF instance e.g. based on certain VNF indicator values or VNF indicator value changes or a combination of VNF indicator value(s) and monitoring parameter(s). |
Vnf::ObjectClasses::Vnfd::autoScale |
vnfpackagechangeinfo |
VnfPackageChangeInfo |
0..* |
OpenModelAttribute
Reference
Experimental |
Information used for performing the change of the current VNF Package. More than one VNF Package Change Info construct is possible to cater the possibility that changes of the current VNF Package can be performed for different source VNFDs. |
Vnf::ObjectClasses::Vnfd::vnfpackagechangeinfo |
lcmOperationCoordination |
VnfLcmOperationCoordination |
0..* |
OpenModelAttribute
Reference
Experimental |
Provides information used for the coordination in VNF LCM operations. |
Vnf::ObjectClasses::Vnfd::lcmOperationCoordination |
mciopId |
Identifier |
0..* |
OpenModelAttribute
Reference
Experimental |
Identifies the MCIOP(s) in the VNF package, used in containerized workload management, when the VNF is realized by a set of OS containers. |
Vnf::ObjectClasses::Vnfd::mciopId |
isSharable |
Boolean |
1 |
OpenModelAttribute
Experimental |
Indicates whether the NetworkFunction can be shared. |
Nf::ObjectClasses::NetworkFunctionDesc::isSharable |
validFor |
TimePeriod |
0..1 |
OpenModelAttribute
Preliminary |
The period during which the design entity is valid. |
Common::Root::RootObjectClasses::DesignEntity::validFor |
status |
String |
1 |
OpenModelAttribute
Preliminary |
The condition of the specification, such s active, inactive, or planned. |
Common::Root::RootObjectClasses::DesignEntity::status |
name |
String |
1 |
OpenModelAttribute
Preliminary |
Represents a user-friendly identifier of an object. It is a (possibly ambiguous) name by which the object is commonly known in some limited scope (such as an organization) and conforms to the naming conventions of the country or culture with which it is associated. It is NOT used as a naming attribute (i.e., to uniquely identify an instance of the object). |
Common::Root::RootObjectClasses::DesignEntity::name |
description |
String |
1 |
OpenModelAttribute
Preliminary |
Defines a textual free-form description of the object. |
Common::Root::RootObjectClasses::DesignEntity::description |
id |
Identifier |
1 |
OpenModelAttribute
Preliminary |
Identifier of this information element. This attribute shall be globally unique. Unambiguously distinguishes different object instances. It is the naming attribute of the object. |
Common::Root::RootObjectClasses::RootEntity::id |
vipCpd
A VipCpd is a type of Cpd and describes a requirement to allocate one or a set of virtual IP addresses. A VipCpd inherits from the Cpd Class . All attributes of the Cpd are also attributes of the VipCpd. When intCpds are indicated, instances of VduCps created from those intCpds share the addresses created from the VipCpd. When vnfExtCpds are indicated, instances of VnfExtCps created from those vnfExtCpds share the addresses created from the VipCpd.
Parent class: Cpd
Applied stereotypes:
Reference
reference: IFA011 v3.3.1
Experimental
OpenModelClass
support: MANDATORY
Attribute Name |
Type |
Mult. |
Stereotypes |
Description |
Defined in |
intCpd |
Identifier |
0..* |
OpenModelAttribute
PassedByReference Experimental |
References the internal VDU CPD which is used to instantiate internal CPs. These internal CPs share the virtual IP addresses allocated when a VipCp instance is created from the VipCpd. |
Vnf::ObjectClasses::vipCpd::intCpd |
vnfExtCpd |
Identifier |
0..* |
OpenModelAttribute
PassedByReference |
References the VNF external CPD which is used to instantiate external CPs. These external CPs share the virtual IP addresses allocated when a VipCp instance is created from the VipCpd. |
Vnf::ObjectClasses::vipCpd::vnfExtCpd |
cpdId |
Identifier |
1 |
OpenModelAttribute
Preliminary |
Identifier of this Cpd information element. |
Common::Network::NetworkObjectClasses::Cpd ::cpdId |
cpdRole |
String |
0..1 |
OpenModelAttribute
Preliminary |
Identifies the role of the port in the context of the traffic flow patterns in the VNF or parent NS. For example a VNF with a tree flow pattern within the VNF will have legal cpRoles of ROOT and LEAF. |
Common::Network::NetworkObjectClasses::Cpd ::cpdRole |
description |
String |
0..1 |
OpenModelAttribute
Preliminary |
Provides human-readable information on the purpose of the CP (e.g. CP for control plane traffic). |
Common::Network::NetworkObjectClasses::Cpd ::description |
cpProtocol |
CpProtocolData |
0..* |
OpenModelAttribute
Experimental |
Identifies the protocol layering information the CP uses for connectivity purposes and associated information. There shall be one cpProtocol for each layer protocol as indicated by the attribute layerProtocol. Editor’s note: the attribute “layerProtocol” still needs further discussion and not included in this table. |
Common::Network::NetworkObjectClasses::Cpd ::cpProtocol |
trunkMode |
Boolean |
0..1 |
OpenModelAttribute
Experimental |
Information about whether the CP instantiated from this CPD is in Trunk mode (802.1Q or other). |
Common::Network::NetworkObjectClasses::Cpd ::trunkMode |
layerProtocol |
LayerProtocol |
1..* |
OpenModelAttribute
Experimental |
Identifies which protocol the CP uses for connectivity purposes (Ethernet, MPLS, ODU2, IPV4, IPV6, Pseudo-Wire, etc.). |
Common::Network::NetworkObjectClasses::Cpd ::layerProtocol |
securityGroupRuleId |
Identifier |
0..* |
OpenModelAttribute
Experimental |
Reference of the security group rules bound to this CPD. |
Common::Network::NetworkObjectClasses::Cpd ::securityGroupRuleId |
Associations
VnfdUsesVirtualComputeDesc
Defines descriptors of virtual compute resources to be used by the VNF.
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
virtualComputeDesc |
shared |
Navig. |
VirtualComputeDesc |
0..* |
Defines descriptors of virtual compute resources to be used by the VNF when each of the VNFC instances of the VNF is intended to be deployed in a single VM. |
vnfd |
none |
Not navig. |
Vnfd |
1 |
VnfdHasVdu
References to Vdus that are part of this group.
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
vdu |
composite |
Navig. |
Vdu |
1..* |
Virtualisation Deployment Unit. |
_vnfd |
none |
Not navig. |
Vnfd |
1 |
VnfdHasVnfDf
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
deploymentFlavour |
composite |
Navig. |
VnfDf |
1..* |
Describes specific DF(s) of a VNF with specific requirements for capacity and performance. |
_vnfd |
none |
Not navig. |
Vnfd |
1 |
VnfdHasExtCpd
Describes external interface(s) exposed by this VNF enabling connection with a VL.
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
_vnfd |
none |
Not navig. |
Vnfd |
0..1 |
|
vnfExtCpd |
composite |
Navig. |
VnfExtCpd |
1..* |
Describes external interface(s) exposed by this VNF enabling connection with a VL. |
VnfdHasVnfIndicator
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
_vnfd |
none |
Not navig. |
Vnfd |
1 |
|
vnfIndicator |
shared |
Navig. |
VnfIndicator |
0..* |
Declares the VNF indicators that are supported by this VNF. |
VnfdHasVSDesc
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
virtualStorageDesc |
shared |
Navig. |
VirtualStorageDesc |
0..* |
Defines descriptors of virtual storage resources to be used by the VNF. |
_vnfd |
none |
Not navig. |
Vnfd |
1 |
VduHasInternalVduCpd
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
intCpd |
shared |
Navig. |
VduCpd |
1 |
Describes network connectivity between a VNFC instance (based on this Vdu) and an internal Virtual Link (VL). |
_vdu |
none |
Not navig. |
Vdu |
1 |
VduHasVCDesc
Describes CPU, Memory and acceleration requirements of the Virtualisation Container realising this Vdu.
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
virtualComputeDesc |
shared |
Navig. |
VirtualComputeDesc |
1..* |
Describes CPU, Memory and acceleration requirements of the Virtualisation Container realising this Vdu. |
_vdu |
none |
Not navig. |
Vdu |
1 |
VduHasVSDesc
Describes storage requirements for a VirtualStorage instance attached to the virtualisation container created from virtualComputeDesc defined for this Vdu. support:
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
_vdu |
none |
Not navig. |
Vdu |
0..* |
|
virtualStorageDesc |
shared |
Navig. |
VirtualStorageDesc |
0..* |
Describes storage requirements for a VirtualStorage instance attached to the virtualisation container created from virtualComputeDesc defined for this Vdu. |
VduHasSwImageDesc
Describes the software image which is directly loaded on the virtualisation container realising this Vdu. NOTE: More software images can be attached to the virtualisation container using VirtualStorage resources.
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
swImageDesc |
shared |
Navig. |
SwImageDesc |
0..1 |
Describes the software image which is directly loaded on the virtualisation container realising this Vdu. NOTE: More software images can be attached to the virtualisation container using VirtualStorage resources. |
_vdu |
none |
Not navig. |
Vdu |
1..* |
SwImageLoadedOnVS
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
swimagedesc |
none |
Not navig. |
SwImageDesc |
0..1 |
|
virtualstoragedesc |
none |
Not navig. |
VirtualStorageDesc |
0..* |
VnfExtCpdMapstoVduCpd
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
_intCpd |
none |
Navig. |
VduCpd |
0..1 |
References the internal VDU CPD which is used to instantiate internal CPs. These internal CPs are, in turn, exposed as external CPs defined by this external CPD. One and only one of the following attributes shall be present: intVirtualLinkDesc or intCpd or vipCpd. |
_vnfExtCpd |
none |
Not navig. |
VnfExtCpd |
0..1 |
VLProfileHasVLDescFlavour
Identifies a flavour within a VnfVirtualLinkDesc.
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
_flavourId |
shared |
Navig. |
VirtualLinkDescFlavour |
1 |
Identifies a flavour within the VnfVirtualLinkDesc. |
virtuallinkprofile |
none |
Not navig. |
VirtualLinkProfile |
1 |
VduCpdHasVNIR
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
_virtualNetworkInterfaceRequirements |
composite |
Navig. |
VirtualNetworkInterfaceRequirements |
0..* |
Specifies requirements on a virtual network interface realising the CPs instantiated from this CPD. |
_vducpd |
none |
Not navig. |
VduCpd |
1 |
VnfDfHasAorAAGroup
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
_affinityOrAntiAffinityGroup |
shared |
Navig. |
AffinityOrAntiAffinityGroup |
0..* |
Specifies affinity or anti-affinity relationship applicable between the virtualisation containers (e.g. virtual machines) to be created using different VDUs or internal VLs to be created using different VnfVirtualLinkDesc(s) in the same affinity or anti-affinity group. NOTE: In the present specification, including either VDU(s) or VnfVirtualLinkDesc(s) into the same affinity or anti-affinity group is supported. Extension to support including both VDU(s) and VnfVirtualLinkDesc(s) into the same affinity or anti-affinity group is left for future specification. |
_vnfDf |
none |
Not navig. |
VnfDf |
1..* |
VnfDfHasIL
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
_instantiationLevel |
shared |
Navig. |
InstantiationLevel |
1..* |
Describes the various levels of resources that can be used to instantiate the VNF using this flavour. Examples: Small, Medium, Large. If there is only one “instantiationLevel” entry, it shall be treated as the default instantiation level for this DF. |
_vnfDf |
none |
Not navig. |
VnfDf |
1 |
VnfDfHasScalingAspect
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
_scalingAspect |
shared |
Navig. |
ScalingAspect |
0..* |
The scaling aspects supported by this DF of the VNF. scalingAspect shall be present if the VNF supports scaling. |
_vnfDf |
none |
Not navig. |
VnfDf |
1..* |
VnfDfHasVLProfile
Defines the internal VLD along with additional data which is used in this DF. NOTE 1: This allows for different VNF internal topologies between DFs. NOTE 2: virtualLinkProfile needs to be provided for all VLs that the CPs of the VDUs in the VDU profiles connect to.
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
_virtuaLlinkProfile |
shared |
Navig. |
VirtualLinkProfile |
0..* |
Defines the internal VLD along with additional data which is used in this DF. NOTE 1: This allows for different VNF internal topologies between DFs. NOTE 2: virtualLinkProfile needs to be provided for all VLs that the CPs of the VDUs in the VDU profiles connect to. |
_vnfDf |
none |
Not navig. |
VnfDf |
1..* |
VnfExtCdpHasVNIR
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
virtualNetworkInterfaceRequirements |
composite |
Navig. |
VirtualNetworkInterfaceRequirements |
0..* |
Specifies requirements on a virtual network interface realising the CPs instantiated from this CPD. NOTE: In case of referencing an intCpd via its identifier, the virtualNetworkInterfaceRequirements attribute of the referenced intCpd applies. |
_vnfExtCpd |
none |
Not navig. |
VnfExtCpd |
1 |
ILHasVduLevel
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
_vduLevel |
composite |
Navig. |
VduLevel |
1..* |
Indicates the number of instance of this VDU to deploy for this level. |
_instantiationLevel |
none |
Not navig. |
InstantiationLevel |
1 |
VnfDfHasVduProfile
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
_vduProfile |
shared |
Navig. |
VduProfile |
1..* |
Describes additional instantiation data for the VDUs used in this flavor. |
vnfdf |
none |
Not navig. |
VnfDf |
1..* |
VnfcDeployedUsingVdu
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
_vdu |
none |
Navig. |
Vdu |
1 |
Reference to the VDU |
vnfc (vnfcinstance) |
none |
Not navig. |
Vnfc |
0..* |
VnfProfileReferencesVnfDf
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
flavourId |
none |
Navig. |
VnfDf |
1 |
Identifies a flavour within the VNFD. |
_vnfProfile |
none |
Not navig. |
VnfProfile |
0..* |
VnfProfileReferencesVnfd
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
vnfdId |
none |
Navig. |
Vnfd |
0..1 |
Reference to the VNFD. |
_vnfProfile |
none |
Not navig. |
VnfProfile |
0..* |
VnfdHasSwImageDesc
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
swImageDesc |
composite |
Navig. |
SwImageDesc |
0..* |
Defines descriptors of software images to be used by the VNF. NOTE: This shall be used to describe both the software image loaded on the virtualization container used to realize a VDU and the software images to be stored on VirtualStorage resources (e.g., volumes) attached to a virtualization container. |
_vnfd |
none |
Not navig. |
Vnfd |
1 |
SwImageDescHasSwImage
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
_swImage |
none |
Navig. |
SwImage |
1 |
This is a reference to the actual software image. The reference can be relative to the root of the VNF Package or can be a URL |
_swImageDesc |
none |
Not navig. |
SwImageDesc |
1 |
VCDHasLNRequirements
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
_logicalNodeRequirements |
composite |
Navig. |
LogicalNodeRequirements |
0..* |
The associated logical node requirements. |
_virtualComputeDesc |
none |
Not navig. |
VirtualComputeDesc |
1 |
VnfdHasInternalVnfVLDesc
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
intVirtualLinkDesc |
none |
Navig. |
VnfVirtualLinkDesc |
0..* |
Represents the type of network connectivity mandated by the VNF provider between two or more CPs which includes at least one internal CP. |
_vnfd |
none |
Not navig. |
Vnfd |
1 |
VirtualLinkProfileHasDescId
Uniquely references a VLD.
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
_vnfVirtualLinkDescId |
none |
Navig. |
VnfVirtualLinkDesc |
1 |
Uniquely references a VLD. |
_virtualLinkProfile |
none |
Not navig. |
VirtualLinkProfile |
1 |
VduCpdHasInternvalVnfVLDesc
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
_intVirtualLinkDesc |
none |
Navig. |
VnfVirtualLinkDesc |
0..1 |
Reference(s) of the Virtual Link Descriptor to which this Connection Point Descriptor(s) connects. |
_vduCpd |
none |
Not navig. |
VduCpd |
1 |
VnfVLDescHasVLDescFlavour
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
_virtualLinkDescFlavour |
composite |
Navig. |
VirtualLinkDescFlavour |
1..* |
Describes a specific flavour of the VL with specific bitrate requirements. |
_vnfVirtualLinkDesc |
none |
Not navig. |
VnfVirtualLinkDesc |
1 |
VnfExtCpdHasVLDesc
Reference to the internal Virtual Link Descriptor (VLD) to which CPs instantiated from this external CP Descriptor (CPD) connect.
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
_intVirtualLinkDesc |
none |
Navig. |
VnfVirtualLinkDesc |
0..1 |
References the internal Virtual Link Descriptor (VLD) to which CPs instantiated from this external CP Descriptor (CPD) connect. One and only one of the following attributes shall be present: intVirtualLinkDesc or intCpd or vipCpd. |
_vnfExtCpd |
none |
Not navig. |
VnfExtCpd |
1 |
VduProfileReferencesVdu
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
_vduId |
shared |
Navig. |
Vdu |
1 |
|
_vduProfile |
none |
Not navig. |
VduProfile |
0..* |
VnfDfHasVnfIndicator
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
vnfIndicator |
none |
Navig. |
VnfIndicator |
0..* |
Declares the VNF indicators that are supported by this VNF (specific to this DF). |
_vnfDf |
none |
Not navig. |
VnfDf |
1 |
VlProfileHasAffOrAntiAffGroup
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
_affinityOrAntiAffinityGroupId |
none |
Navig. |
AffinityOrAntiAffinityGroup |
0..* |
Identifies an affinity or anti-affinity group the VLs instantiated according to the VlProfile belong to. NOTE : Each identifier references an affinity or anti-affinity group which expresses affinity or anti-affinity relationship between the VL(s) using this VirtualLinkProfile and the VL(s) using other VirtualLinkProfile(s) in the same group. |
virtuallinkprofile |
none |
Not navig. |
VirtualLinkProfile |
0..* |
VduLevelHasVdu
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
_vduId |
none |
Navig. |
Vdu |
1 |
Uniquely identifies a VDU. |
vdulevel |
none |
Not navig. |
VduLevel |
1 |
VnfdDefinesSecurityGroupRule
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
securityGroupRule |
none |
Navig. |
SecurityGroupRule |
0..* |
Defines security group rules to be used by the VNF. |
_vnfd |
none |
Not navig. |
Vnfd |
1 |
VNIRHasLNR
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
_nicIoRequirements |
none |
Navig. |
LogicalNodeRequirements |
0..1 |
This references (couples) the CPD with any logical node I/O requirements (for network devices) that may have been created. Linking these attributes is necessary so that so that I/O requirements that need to be articulated at the logical node level can be associated with the network interface requirements associated with the CPD. |
_virtualNetworkInterfaceRequirements |
none |
Not navig. |
VirtualNetworkInterfaceRequirements |
1 |
VnfdhasVipCpd
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
vipcpd |
composite |
Navig. |
vipCpd |
0..* |
Describes virtual IP addresses to be shared among instances of connection points. |
vnfd |
none |
Not navig. |
Vnfd |
1 |
VnfDfHasSupportedVnfInterface
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
vnfdf |
none |
Not navig. |
VnfDf |
1 |
|
supportedVnfInterface |
composite |
Navig. |
VnfInterfaceDetails |
0..* |
Indicates which interfaces the VNF produces and provides additional details on how to access the interface endpoints. |
SwImageDescHasCheckSumData
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
checksumdata |
none |
Navig. |
ChecksumData |
1 |
|
swimagedesc |
none |
Not navig. |
SwImageDesc |
1 |
VnfdHasVnfPackageChangeInfo
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
vnfpackagechangeinfo |
composite |
Navig. |
VnfPackageChangeInfo |
0..* |
Information used for performing the change of the current VNF Package. More than one VNF Package Change Info construct is possible to cater the possibility that changes of the current VNF Package can be performed for different source VNFDs. |
vnfd |
none |
Not navig. |
Vnfd |
1 |
VnfdHasLcmOpCoordination
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
lcmOperationCoordination |
composite |
Navig. |
VnfLcmOperationCoordination |
0..* |
Provides information used for the coordination in VNF LCM operations. |
vnfd |
none |
Not navig. |
Vnfd |
1 |
VnfdHasOsContainerDesc
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
osContainerDesc |
composite |
Navig. |
OsContainerDesc |
0..* |
Defines descriptors of container compute resources to be used by the VNF when the VDUs of the VNF are realized by a set of OS Containers sharing the same host and same networking namespace. |
vnfd |
none |
Not navig. |
Vnfd |
1 |
VnfDfHasMciopProfile
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
mciopProfile |
composite |
Navig. |
MciopProfile |
0..* |
Describes additional instantiation data for the MCIOPs used in this deployment flavour. This attribute shall be present if the DF references (via the vduProfile) containerized workloads based on a MCIOP. |
vnfdf |
none |
Not navig. |
VnfDf |
1 |
VduRefOsContainerDesc
Applied stereotypes:
Attribute Name |
Aggreg. |
Navig. |
Type |
Mult. |
Description |
osContainerdesc |
none |
Navig. |
OsContainerDesc |
0..* |
Describes CPU, memory requirements and limits, and software images of the OS Containers realizing this Vdu corresponding to OS Containers sharing the same host and same network namespace. Each unique identifier is referenced only once within one VDU. |
vdu |
none |
Not navig. |
Vdu |
1 |
Data Types
AdditionalServiceData
This information element describes the additional service data of the VirtualCp used to expose properties of the VirtualCp to NFV-MANO. If the VirtualCp is exposed by a VNF component realized by one or a set of OS containers, the properties are mirrored from the declarative descriptor of the corresponding MCIO where available.
Applied stereotypes:
Reference
reference: IFA011 v4.1.1
Experimental
Attribute Name |
Type |
Mult. |
Access |
Stereotypes |
Description |
portData |
ServicePortData |
1..* |
RW |
OpenModelAttribute
|
Service port numbers exposed by the VirtualCp. |
serviceData |
invalid |
0..1 |
RW |
OpenModelAttribute
|
Service matching information exposed by the VirtualCp NOTE: This attribute shall only be present if additional information is needed to identify the service termination within the VNF, such as for example a url path information in an HTTP request required to allow a single VirtualCp IP address to be used for several HTTP based services that use the same portnumber. |
BlockStorageData
Specifies the details of the block storage resource.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
Attribute Name |
Type |
Mult. |
Access |
Stereotypes |
Description |
sizeOfStorage |
Number |
1 |
RW |
OpenModelAttribute
Preliminary |
Size of virtualised storage resource in GB. |
vduStorageRequirements |
KeyValuePair |
0..* |
RW |
OpenModelAttribute
Preliminary |
An array of key-value pairs that articulate the storage deployment requirements. |
rdmaEnabled |
Boolean |
0..1 |
RW |
OpenModelAttribute
Obsolete |
Indicates if the storage supports rdma. |
swImageDesc |
SwImageDesc |
0..1 |
RW |
OpenModelAttribute
Preliminary |
Software image to be loaded on the VirtualStorage resource created based on this VirtualStorageDesc. Shall be absent when used for virtual disks. |
ComponentMapping
With respect to a “change current VNF Package” process, a ComponentMapping information element defines a mapping between the identifier of a components or property in the source VNFD and the identifier of the corresponding component or property in the destination VNFD. Examples for components are VDUs, VLDs, etc., and an example for a property is a scaling aspect of the VNF.
Applied stereotypes:
Reference
reference: IFA011 v3.3.1
Experimental
Attribute Name |
Type |
Mult. |
Access |
Stereotypes |
Description |
componentType |
invalid |
1 |
RW |
OpenModelAttribute
|
The type of component or property. Possible values differentiate whether changes concern to some VNF component (e.g. VDU, internal VLD, etc.) or property (e.g. a Scaling Aspect, etc.). |
sourceDescId |
Identifier |
1 |
RW |
OpenModelAttribute
|
Identifier of the component or property in the source VNFD. |
dstDescId |
Identifier |
1 |
RW |
OpenModelAttribute
|
Identifier of the component or property in the destination VNFD. |
description |
EString |
0..1 |
RW |
OpenModelAttribute
|
Human readable description of the component changes. |
FileStorageData
The FileStorageData information element specifies the details of file storage resource.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
Attribute Name |
Type |
Mult. |
Access |
Stereotypes |
Description |
sizeOfStorage |
Number |
1 |
RW |
OpenModelAttribute
Preliminary |
Size of virtualised storage resource in GB. |
fileSystemProtocol |
String |
1 |
RW |
OpenModelAttribute
Preliminary |
The shared file system protocol (e.g. NFS, CIFS). |
intVirtualLinkDesc |
VnfVirtualLinkDesc |
1 |
RW |
OpenModelAttribute
Preliminary PassedByReference |
Reference of the internal VLD which this file storage connects to. The attached VDUs shall connect to the same internal VLD. |
MonitoringParameter
Specifies the virtualized resource related performance metric to be tracked by the VNFM, e.g. for auto-scaling purposes. The VNFM collects the values of performance metrics identified by this information element from the VIM(s) using one or more locally initiated PM Jobs. These values can be used as inputs to auto-scaling rules.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
Attribute Name |
Type |
Mult. |
Access |
Stereotypes |
Description |
id |
Identifier |
1 |
RW |
OpenModelAttribute
Preliminary |
Unique identifier of the monitoring parameter. |
name |
String |
0..1 |
RW |
OpenModelAttribute
Preliminary |
Human readable name of the monitoring parameter. |
performanceMetric |
String |
1 |
RW |
OpenModelAttribute
Preliminary |
Identifies the virtualized resource performance metric. |
collectionPeriod |
CollectionPeriod |
0..1 |
RW |
OpenModelAttribute
Preliminary |
An attribute that describes the periodicity at which to collect the performance information. |
localAffinityOrAntiAffinityRule |
LocalAffinityOrAntiAffinityRule |
0..1 |
RW |
OpenModelAttribute
Future |
ObjectStorageData
The ObjectStorageData information element specifies the details of object storage resource.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
Attribute Name |
Type |
Mult. |
Access |
Stereotypes |
Description |
maxSizeOfStorage |
Number |
0..1 |
RW |
OpenModelAttribute
Preliminary |
Max size of virtualised storage resource in GB. |
RequestedAdditionalCapabilityData
This information element describes requested additional capability for a particular VDU. Such a capability may be for acceleration or specific tasks.
Applied stereotypes:
Obsolete
Attribute Name |
Type |
Mult. |
Access |
Stereotypes |
Description |
supportMandatory |
Boolean |
1 |
RW |
OpenModelAttribute
Obsolete |
Indicates whether the requested additional capability is mandatory for successful operation. |
requestedAdditionalCapabilityName |
String |
1 |
RW |
OpenModelAttribute
Obsolete |
Identifies a requested additional capability for the VDU. |
minRequestedAdditionalCapabilityVersion |
Version |
0..1 |
RW |
OpenModelAttribute
Obsolete |
Identifies the minimum version of the requested additional capability. |
preferredRequestedAdditionalCapabilityVersion |
Version |
0..1 |
RW |
OpenModelAttribute
Obsolete |
Identifies the preferred version of the requested additional capability. |
targetPerformanceParameters |
KeyValuePair |
1..* |
RW |
OpenModelAttribute
Obsolete |
Identifies specific attributes, dependent on the requested additional capability type. |
ScaleInfo
The ScaleInfo information element represents a scale level for a particular scaling aspect.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
Attribute Name |
Type |
Mult. |
Access |
Stereotypes |
Description |
aspectId |
ScalingAspect |
1 |
RW |
OpenModelAttribute
Preliminary PassedByReference |
Reference to the scaling aspect. |
scaleLevel |
Integer |
1 |
RW |
OpenModelAttribute
Preliminary |
The scale level, greater than or equal to 0 |
ServicePortData
This information element describes the service identifying port properties exposed by the VirtualCp.
Applied stereotypes:
Reference
reference: IFA011 v4.1.1
Experimental
Attribute Name |
Type |
Mult. |
Access |
Stereotypes |
Description |
name |
String |
1 |
RW |
OpenModelAttribute
|
The name of the port exposed by the VirtualCp. |
protocol |
Integer |
1 |
RW |
OpenModelAttribute
|
The L4 protocol for this port exposed by the VirtualCp. VALUES: ? TCP ? UDP ? SCTP |
port |
Integer |
1 |
RW |
OpenModelAttribute
|
The L4 port number exposed by the VirtualCp. |
portConfigurable |
Boolean |
1 |
RW |
OpenModelAttribute
|
Specifies whether the port attribute value is allowed to be configurable. |
StorageQos
Applied stereotypes:
Future
Attribute Name |
Type |
Mult. |
Access |
Stereotypes |
Description |
qosId |
Identifier |
1 |
RW |
OpenModelAttribute
Future |
Unique identifier of the storage Qos in VNFD. |
qosName |
String |
1 |
RW |
OpenModelAttribute
Future |
Name of storage QoS. |
consumer |
ConsumerScope |
1 |
RW |
OpenModelAttribute
Future |
Consumer type. |
qosSpecs |
KeyValuePair |
0..* |
RW |
OpenModelAttribute
Future |
Describe qualities of Qos:total_bytes_sec、total_iops_sec. |
VersionSelector
The VersionSelector information element allows to identify the source and destination VNFDs (and implicitly, VNF packages) for a “change current VNF Package”, as well as the applicable source deployment flavour. The triplet (srcVnfdId, srcFlavourId, dstVnfdId) uniquely determines a change.
Applied stereotypes:
Reference
reference: IFA011 v3.3.1
Experimental
Attribute Name |
Type |
Mult. |
Access |
Stereotypes |
Description |
srcVnfId |
Identifier |
1 |
RW |
OpenModelAttribute
|
Identifier of the source VNFD and the source VNF package. |
dstVnfId |
Identifier |
1 |
RW |
OpenModelAttribute
|
Identifier of the destination VNFD and the destination VNF package |
srcFlavourId |
Identifier |
1 |
RW |
OpenModelAttribute
|
Identifier of the deployment flavour in the source VNF package for which this modification applies. |
VirtualCpuData
The VirtualCpuData information element supports the specification of requirements related to virtual CPU(s) of a virtual compute resource.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
Attribute Name |
Type |
Mult. |
Access |
Stereotypes |
Description |
cpuArchitecture |
String |
0..1 |
RW |
OpenModelAttribute
Preliminary |
CPU architecture type. Examples are x86, ARM. The cardinality can be 0 during the allocation request, if no particular CPU architecture type is requested. |
numVirtualCpu |
Integer |
1 |
RW |
OpenModelAttribute
Preliminary |
Number of virtual CPUs. |
virtualCpuClock |
Number |
0..1 |
RW |
OpenModelAttribute
Preliminary |
Minimum virtual CPU clock rate (e.g. in MHz). The cardinality can be 0 during the allocation request, if no particular value is requested. |
virtualCpuOversubscriptionPolicy |
String |
0..1 |
RW |
OpenModelAttribute
Obsolete |
The CPU core oversubscription policy e.g. the relation of virtual CPU cores to physical CPU cores/threads. The cardinality can be 0 during the allocation request, if no particular value is requested. |
vduCpuRequirements |
KeyValuePair |
0..* |
RW |
OpenModelAttribute
Preliminary |
Array of key-value pair requirements on the Compute (CPU) for the VDU. |
virtualCpuPinning |
VirtualCpuPinningData |
0..1 |
RW |
OpenModelAttribute
Obsolete |
The virtual CPU pinning configuration for the virtualised compute resource. |
VirtualCpuPinningData
The VirtualCpuPinningData information element supports the specification of requirements related to the virtual CPU pinning configuration of a virtual compute resource.
Applied stereotypes:
Obsolete
Attribute Name |
Type |
Mult. |
Access |
Stereotypes |
Description |
virtualCpuPinningPolicy |
PinningPolicy |
0..1 |
RW |
OpenModelAttribute
Obsolete |
The policy can take values of “static” or “dynamic”. In case of “static” the virtual CPU cores are requested to be allocated to logical CPU cores according to the rules defined in virtualCpuPinningRules. In case of “dynamic” the allocation of virtual CPU cores to logical CPU cores is decided by the VIM. (e.g.: SMT (Simultaneous Multi-Threading) requirements). |
virtualCpuPinningRule |
invalid |
0..1 |
RW |
OpenModelAttribute
Obsolete |
A list of rules that should be considered during the allocation of the virtual CPUs to logical CPUs in case of “static” virtualCpuPinningPolicy. |
VirtualLinkBitRateLevel
The VirtualLinkBitRateLevel information element specifies bitrate requirements applicable to a virtual link instantiated from a particular VnfVirtualLinkDesc.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
Attribute Name |
Type |
Mult. |
Access |
Stereotypes |
Description |
vnfVirtualLinkDescId |
VnfVirtualLinkDesc |
1 |
RW |
OpenModelAttribute
Preliminary PassedByReference |
Uniquely identifies a VnfVirtualLinkDesc |
bitrateRequirements |
LinkBitrateRequirements |
1 |
RW |
OpenModelAttribute
Preliminary |
Bitrate requirements for an instantiation level or bitrate delta for a scaling step. |
VirtualLinkProtocolData
The VirtualLinkProtocolData describes the protocol layer and associated protocol data for a virtual link
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
Attribute Name |
Type |
Mult. |
Access |
Stereotypes |
Description |
associatedLayerProtocol |
LayerProtocol |
1 |
RW |
OpenModelAttribute
Preliminary |
One of the values of the attribute layerProtocol of the ConnectivityType IE. |
l2ProtocolData |
L2ProtocolData |
0..1 |
RW |
OpenModelAttribute
Preliminary |
Specifies the L2 protocol data for this virtual link. Shall be present when the associatedLayerProtocol attribute indicates a L2 protocol and shall be absent otherwise. |
l3ProtocolData |
L3ProtocolData |
0..1 |
RW |
OpenModelAttribute
Preliminary |
Specifies the L3 protocol data for this virtual link. Shall be present when the associatedLayerProtocol attribute indicates a L3 protocol and shall be absent otherwise. |
VirtualMemoryData
The VirtualMemoryData information element supports the specification of requirements related to virtual memory of a virtual compute resource.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
Attribute Name |
Type |
Mult. |
Access |
Stereotypes |
Description |
virtualMemSize |
Number |
1 |
RW |
OpenModelAttribute
Preliminary |
Amount of virtual Memory (e.g. in MB). |
virtualMemOversubscriptionPolicy |
String |
0..1 |
RW |
OpenModelAttribute
Obsolete |
The memory core oversubscription policy in terms of virtual memory to physical memory on the platform. The cardinality can be 0 during the allocation request, if no particular value is requested. |
vduMemRequirements |
KeyValuePair |
0..* |
RW |
OpenModelAttribute
Preliminary |
Array of key-value pair requirements on the memory for the VDU. |
numaEnabled |
Boolean |
0..1 |
RW |
OpenModelAttribute
Obsolete |
It specifies the memory allocation to be cognisant of the relevant process/core allocation. The cardinality can be 0 during the allocation request, if no particular value is requested. |
VnfConfigurableProperties
This information element provides a means to define in the VNFD attributes that represent the configurable properties of a VNF. Configurable properties can be standardized as listed below (e.g. related to auto scaling, auto healing and interface configuration), or can be VNF-specific as defined by the VNF provider. For a VNF instance, the value of these properties can be queried and modified through the VNFM, using the Query VNF and Modify VNF Information operations. Modifying these values affects directly the configuration of an existing VNF instance. If a configurable property is defined in the VNFD, an initial value may be defined as well.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
Attribute Name |
Type |
Mult. |
Access |
Stereotypes |
Description |
isAutoscaleEnabled |
Boolean |
0..1 |
RW |
OpenModelAttribute
Preliminary |
It permits to enable (TRUE)/disable (FALSE) the auto-scaling functionality. NOTE: A cardinality of “0” indicates that configuring this present VNF property is not supported. |
isAutohealEnabled |
Boolean |
0..1 |
RW |
OpenModelAttribute
Preliminary |
It permits to enable (TRUE)/disable (FALSE) the auto-healing functionality. NOTE: A cardinality of “0” indicates that configuring this present VNF property is not supported. |
vnfmInterfaceInfo |
invalid |
0..1 |
RW |
OpenModelAttribute
Experimental |
Contains information enabling access to the NFV-MANO interfaces produced by the VNFM (e.g. URIs and credentials) |
vnfmOauthServerInfo |
invalid |
0..1 |
RW |
OpenModelAttribute
Experimental |
Contains information to enable discovery of the authorization server protecting access to VNFM interface |
vnfOauthServerInfo |
invalid |
0..1 |
RW |
OpenModelAttribute
Experimental |
Contains information to enable discovery of the authorization server to validate the access tokens provided by the VNFM when the VNFM accesses the VNF interfaces, if that functionality (token introspection) is supported by the authorization server. |
additionalConfigurableProperty |
String |
0..* |
RW |
OpenModelAttribute
Preliminary |
VnfIndicatorData
The VnfIndicatorData datatype identifies a VNF indicator in a VNFD.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
Attribute Name |
Type |
Mult. |
Access |
Stereotypes |
Description |
vnfdId |
Vnfd |
1 |
RW |
OpenModelAttribute
Preliminary |
Identifies a VNFD. |
vnfIndicator |
VnfIndicator |
1 |
RW |
OpenModelAttribute
Preliminary |
Identifies a VNF indicator within the VNFD. |
VnfInfoModifiableAttributes
This datatype defines the VNF-specific extension and metadata attributes of the VnfInfo that are writeable via the ModifyVnfInfo operation.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
Attribute Name |
Type |
Mult. |
Access |
Stereotypes |
Description |
extension |
invalid |
0..* |
RW |
OpenModelAttribute
Experimental |
All additional VNF-specific attributes of VnfInfo that affect the lifecycle management of a VNF instance. For each VNF instance, these attributes are stored persistently by the VNFM and can be queried and modified through the VNFM. These attributes are intended to be consumed by the VNFM or by the lifecycle management scripts during the execution of VNF lifecycle management operations. Modifying these values has no direct effect on the VNF instance; however, modified values can be considered during subsequent VNF lifecycle management operations, which means that the modified values can indirectly affect the configuration of the VNF instance. |
metadata |
invalid |
0..* |
RW |
OpenModelAttribute
Experimental |
Additional VNF-specific attributes of VnfInfo that provide metadata describing the VNF instance and that are defined by the VNF provider. See note 2. For each VNF instance, these attributes are stored persistently by the VNFM and can be queried and modified through the VNFM. These attributes are intended to provide information to functional blocks external to the VNFM and will not be used by the VNFM or the VNF lifecycle management scripts when executing lifecycle management operations. Modifying these attributes has no effect on the VNF instance. It only affects the attribute values stored by the VNFM. |
VnfLcmOperationsConfiguration
This information element is a cont operations, structured by operation.
Applied stereotypes:
Reference
reference: IFA011 v3.3.1
Experimental
VnfLifecycleManagementScript
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
Attribute Name |
Type |
Mult. |
Access |
Stereotypes |
Description |
event |
LcmEvent |
0..* |
RW |
OpenModelAttribute
Preliminary |
Describes VNF lifecycle event(s) or an external stimulus detected on a VNFM reference point. |
icmTransitionEvent |
String |
0..* |
RW |
OpenModelAttribute
Preliminary |
Describes the transition VNF lifecycle event(s) that cannot be mapped to any of the enumerated values defined for the event attribute. NOTE: At least one of these two attributes shall be included. |
script |
String |
1 |
RW |
OpenModelAttribute
Preliminary |
Information to locate a VNF LCM script (e.g. written in a DSL as specified in requirement VNF_PACK.LCM.001) triggered to react to one of the events listed in the event attribute. |
scriptDsl |
String |
1 |
RW |
OpenModelAttribute
Preliminary |
Defines the domain specific language (i.e. the type) of script that is provided. Types of scripts could include bash, python, etc. |
scriptInput |
KeyValuePair |
0..* |
RW |
OpenModelAttribute
Preliminary |
Array of KVP requirements with the key as the parameter name and the value as the parameter that need to be passed as an input to the script. NOTE: The scriptInput values are passed to the scripts in addition to the parameters received in the operation invocation request or indicator value change. |
VnfQoS
The QoS as applied to the vnf.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
VnfcConfigurableProperties
This information element provides a means to define additional VNF-specific attributes that represent the configurable properties of a VNFC. For a VNFC instance, the values of these properties can be queried and modified through the VNFM. Modifying these values affects directly the configuration of an existing VNFC instance.
Applied stereotypes:
Preliminary
Reference
reference: IFA011 v3.3.1
Attribute Name |
Type |
Mult. |
Access |
Stereotypes |
Description |
additionalVnfcConfigurableProperty |
String |
0..* |
RW |
OpenModelAttribute
Preliminary |
It provides VNFC configurable properties that can be modified using the ModifyVnfInfo operation. |
VolumeType
Applied stereotypes:
Future
Attribute Name |
Type |
Mult. |
Access |
Stereotypes |
Description |
volumeTypeId |
Identifier |
1 |
RW |
OpenModelAttribute
Future |
Unique identifier of volume type in VNFD. |
volumeTypeName |
String |
1 |
RW |
OpenModelAttribute
Future |
Name of volume type. |
backendName |
String |
1 |
RW |
OpenModelAttribute
Future |
Backend volume name of cinder. |
Enumerations
CollectionPeriod
Specifies the periodicity at which the producer will collect performance information. Note: at the end of each reportingPeriod, the producer will inform the consumer about availability of the performance data collected for each completed collection period during this reportingPeriod. While the exact definition of the types for collectionPeriod and reportingPeriod is left for further specification, it is recommended that the reportingPeriod be equal or a multiple of the collectionPeriod. In the latter case, the performance data for the collection periods within one reporting period would be reported together.
Contains Enumeration Literals:
ConsumerScope
Contains Enumeration Literals:
BACK_END:
Direction
Ingress or egress traffic
Contains Enumeration Literals:
INGRESS:
EGRESS:
EndpointType
Contains Enumeration Literals:
MGMT:
VNF:
HomingStrategy
Contains Enumeration Literals:
Colocation:
isolation:
InterfaceName
Specifies an interface produced by the VNF.
Contains Enumeration Literals:
VNF_CONFIGURATION:
VNF_INDICATOR:
LcmEvent
Describes VNF lifecycle event(s) or an external stimulus detected on a VNFM reference point.
Contains Enumeration Literals:
EVENT_START_INSTANTIATION:
EVENT_END_INSTANTIATION:
EVENT_START_SCALING:
EVENT_END_SCALING:
EVENT_START_SCALING_TO_LEVEL:
EVENT_END_SCALING_TO_LEVEL:
EVENT_START_HEALING:
EVENT_END_HEALING:
EVENT_START_TERMINATION:
EVENT_END_TERMINATION:
EVENT_START_VNF_FLAVOR_CHANGE:
EVENT_END_VNF_FLAVOR_CHANGE:
EVENT_START_VNF_OPERATION_CHANGE:
EVENT_END_VNF_OPERATION_CHANGE:
EVENT_START_VNF_EXT_CONN_CHANGE:
EVENT_END_VNF_EXT_CONN_CHANGE:
EVENT_START_VNFINFO_MODIFICATION:
EVENT_END_VNFINFO_MODIFICATION:
ModificationQualifier
Contains Enumeration Literals:
UP:
DOWN:
OperationalStatus
Indicator for whether the resource is considered operational. Valid values are in-service-path and out-of-service-path.
Contains Enumeration Literals:
IN_SERVICE:
OUT_OF_SERVICE:
OrchestrationStatus
Contains Enumeration Literals:
INVENTORIED:
ASSIGNED:
CREATED:
ACTIVE:
PinningPolicy
Defines the CPU pinning policy.
Contains Enumeration Literals:
STATIC:
DYNAMIC:
PlacementStrategy
Contains Enumeration Literals:
COLOCATION:
ISOLATION:
EXCLUSIVITY:
ProvStatus
Provisioning status, used as a trigger for operational monitoring of this resource by service assurance systems.
Contains Enumeration Literals:
PROVISIONED:
PREPROVISIONED:
CAPPED:
VnfSource
Describes the source of the indicator.
Contains Enumeration Literals:
VNF:
EM:
BOTH:
VnicType
Describes the type of VNIC to which a CP attaches.
Contains Enumeration Literals:
NORMAL:
MACVTAP:
DIRECT:
BAREMETAL:
DIRECT_PHYSICAL:
VIRTIO_FORWARDER:
SMART-NIC:
BRIDGE:
IPVLAN:
LOOPBACK:
MACVLAN:
PTP:
VLAN:
HOST-DEVICE:
vipFunction
It indicates the function the virtual IP address is used for.
Contains Enumeration Literals:
HIGH_AVAILABILITY:
LOAD_BALANCING:
