Installation
Kpi Computation MS can be deployed using cloudify blueprint using bootstrap container of an existing DCAE deployment.
Deployment Pre-requisites
DCAE and DMaaP pods should be up and running.
PM mapper service should be running.
Make sure that cfy is installed and configured to work with the Cloudify deployment.
Deployment steps
Execute bash on the bootstrap Kubernetes pod.
kubectl -n onap exec -it <dcaegen2-dcae-bootstrap> bash
Validate Blueprint
- Before the blueprints uploading to Cloudify manager, the blueprints shoule be validated first through the following command.
#cfy blueprint validate /bluerints/k8s-kpi-ms.yaml
Upload the Blueprint to Cloudify Manager.
- After validating, we can start to proceed blueprints uploading.
#cfy blueprint upload -b kpi-ms /bluerints/k8s-kpi-ms.yaml
Verify Uploaded Blueprints
- Using “cfy blueprint list” to verify your work.
#cfy blueprint list
- You can see the following returned message to show the blueprints have been correctly uploaded.
Verify Plugin Versions
- If the version of the plugin used is different, update the blueprint import to match.
#cfy plugins list
Create Deployment
- Here we are going to create deployments for both feeder and admin UI.
#cfy deployments create -b kpi-ms kpi-ms
Launch Service
- Next, we are going to launch the KPI-MS.
#cfy executions start -d kpi-ms install
Verify the Deployment Result

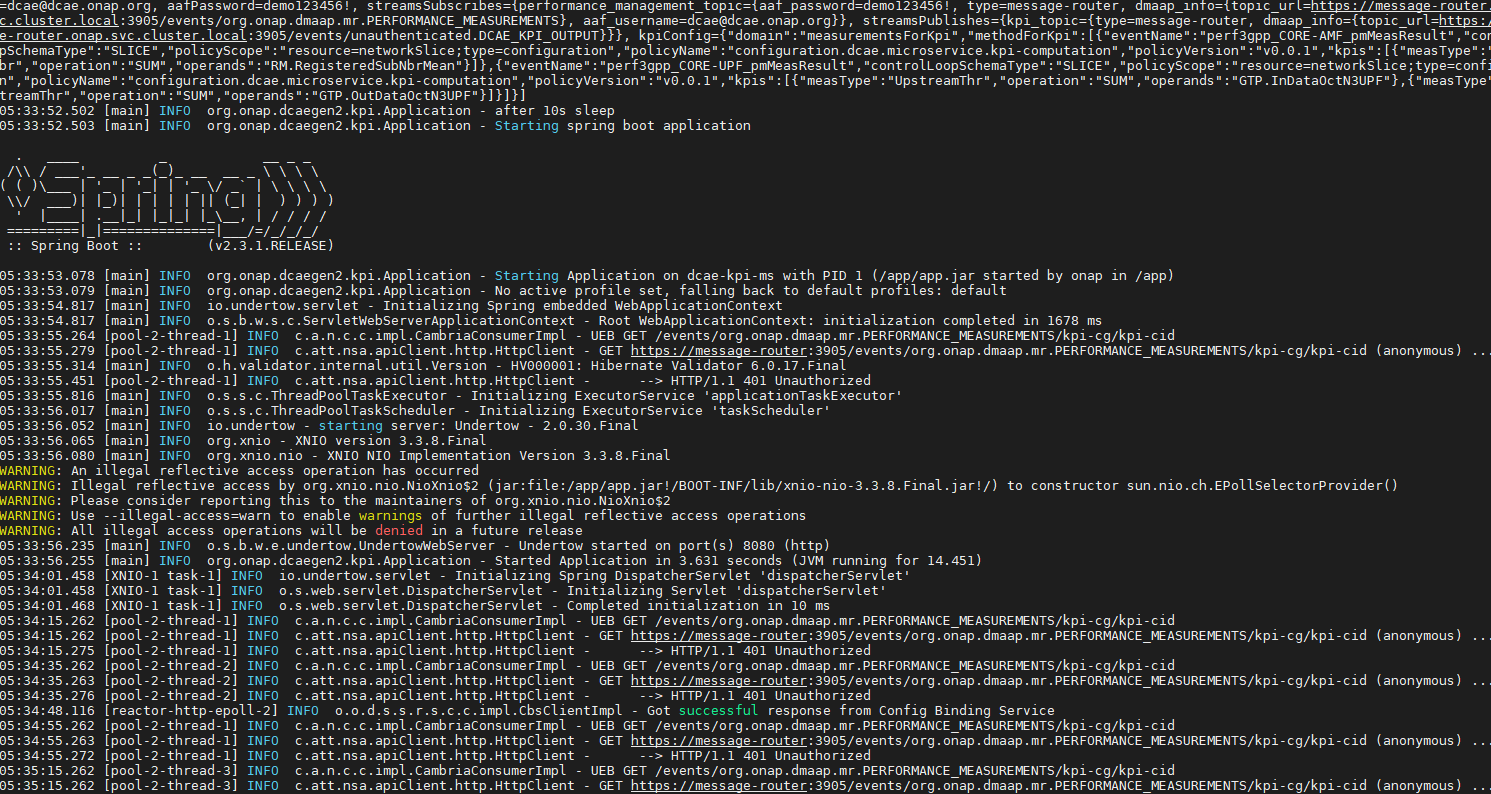

The following command can be used to list the kpi-ms logs.
#kubectl logs <kpi-pod> -n onap
- The output should looks like.
Uninstall
- Uninstall running component and delete deployment
#cfy uninstall kpi-ms
Delete Blueprint
#cfy blueprints delete kpi-ms
