Architecture

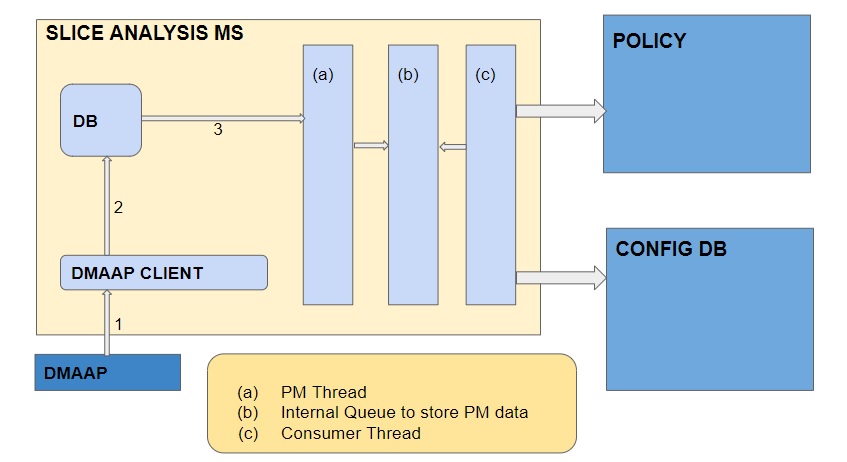

The internal architecture of Slice Analysis MS is shown below.

../../../_images/slice_analysis_ms_arch.jpg

The Slice Analysis MS has a DMaaP interface towards towards Policy and VES-Collector, and a REST interface towards Config DB. It also has a DMaaP interface to receive any recommendations for Closed Loop updates from an ML engine, which is then used to trigger a control loop message to Policy.

  • DMAAP Client creates a thread pool for every DMaaP topic consumer. The thread polls the DMaaP topic for every configured time interval and whenever a message is received it stores that message in the Postgres DB.

  • PM Thread reads the PM event from the database and puts the PM sample in the internal queue in the format which is needed for further processing.

  • Consumer Thread consumes PM samples from the internal queue and make all the required Config DB calls, perform the analysis, and puts the onset message to the DMaaP topic.

  • Database is a PG DB.

Detailed flow diagrams are available at:

Closed Loop: https://wiki.onap.org/display/DW/Closed+Loop

Intelligent Slicing: https://wiki.onap.org/display/DW/Intelligent+Slicing+flow

Functional Description

  • Slice Analysis ms consumes PM messages from PERFORMANCE_MEASUREMENTS topic.

  • For analysis Slice Analysis MS consumes various data from Config DB including List of Network Functions which serves the S-NSSAI, List of Near-RT RICs and the corresponding cell mappings of the S-NSSAI, Current Configuration of the Near-RT RICs, Slice Profile associated with the S-NSSAI and Subscriber details of the S-NSSAI (for sending the onset message to policy).

  • Based on the collected PM data, Slice Analysis MS computes the DLThptPerSlice and ULThptPerSlice for the Near-RT RICs relevant for the S-NSSAI, and the computed value is compared with the current configuration of the Near-RT RICs. If the change in configuration exceeds the minimum percentage value which is kept as a configuration parameter, then the closed-loop will be triggered by posting the onset message to DMaaP.

  • Upon reception of recommendation to update the configuration of RAN from e.g., an ML MS, the Slice Analysis MS prepares and sends a control loop onset message.

Deployment aspects

The SON-Handler MS will be deployed on DCAE as an on-demand component. Details of the installation steps are available at ./installation.rst. Further details can be obtained from: https://wiki.onap.org/pages/viewpage.action?pageId=92998809

Known Issues and Resolutions

The assumptions of functionality in Guilin release is documented in: https://wiki.onap.org/display/DW/Assumptions+for+Guilin+release
