Installation

Kpi Computation MS can be deployed using cloudify blueprint using bootstrap container of an existing DCAE deployment.

Deployment Pre-requisites

  • DCAE and DMaaP pods should be up and running.

  • PM mapper service should be running.

  • Make sure that cfy is installed and configured to work with the Cloudify deployment.

Deployment steps

Execute bash on the bootstrap Kubernetes pod.

kubectl -n onap exec -it <dcaegen2-dcae-bootstrap> bash

Validate Blueprint

Before the blueprints uploading to Cloudify manager, the blueprints shoule be validated first through the following command.
#cfy blueprint validate /bluerints/k8s-kpi-ms.yaml

Upload the Blueprint to Cloudify Manager.

After validating, we can start to proceed blueprints uploading.
#cfy blueprint upload -b kpi-ms /bluerints/k8s-kpi-ms.yaml

Verify Uploaded Blueprints

Using “cfy blueprint list” to verify your work.
#cfy blueprint list

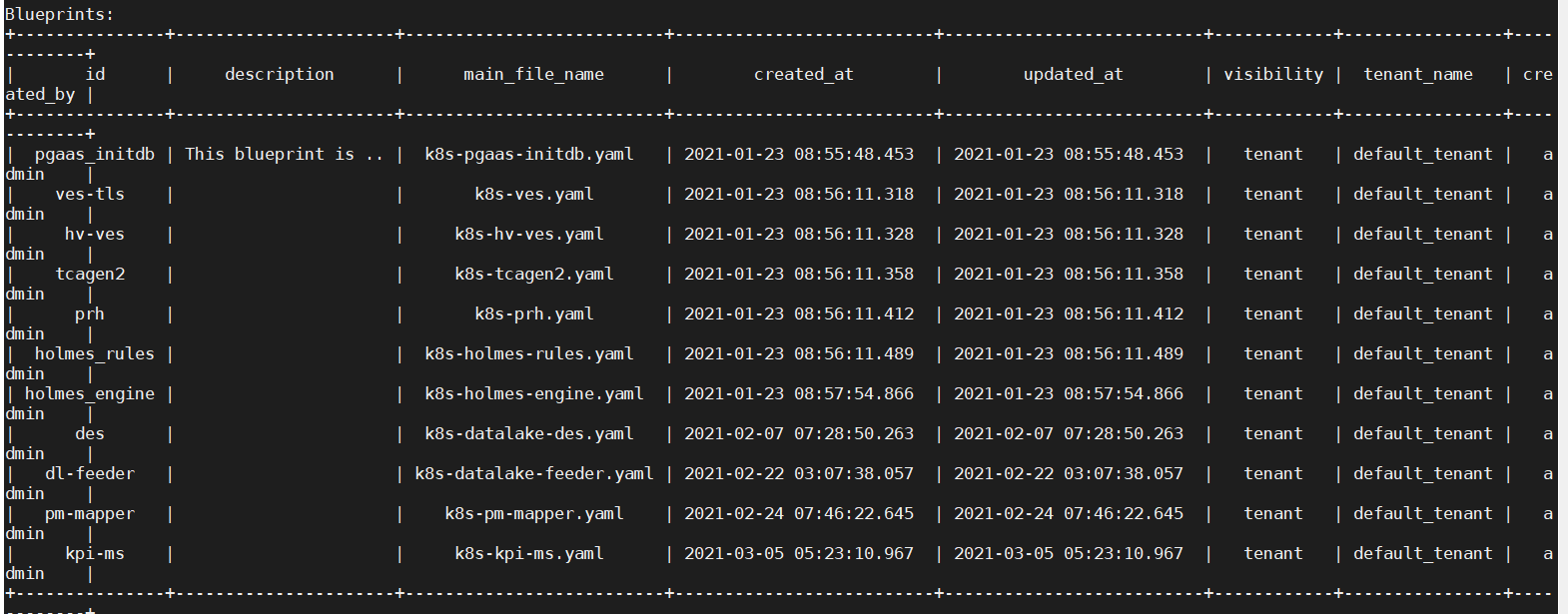

You can see the following returned message to show the blueprints have been correctly uploaded.
../../../_images/blueprint-list1.png

Verify Plugin Versions

If the version of the plugin used is different, update the blueprint import to match.
#cfy plugins list

Create Deployment

Here we are going to create deployments for both feeder and admin UI.
#cfy deployments create -b kpi-ms kpi-ms

Launch Service

Next, we are going to launch the KPI-MS.
#cfy executions start -d kpi-ms install

Verify the Deployment Result

The following command can be used to list the kpi-ms logs.

#kubectl logs <kpi-pod> -n onap
The output should looks like.
../../../_images/kpi-log.PNG

Uninstall

Uninstall running component and delete deployment
#cfy uninstall kpi-ms

Delete Blueprint

#cfy blueprints delete kpi-ms
